Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the push rod lock nut "A" to remove clevis and lock nut "A". Refer to Fig 1.
  2. Remove the dust cover.
  3. Remove the stopper ring and stopper, and remove the push rod from the cylinder body. During removal, keep the push rod depressed, to prevent the piston inside master cylinder from popping out.
  4. Remove the piston assembly from the cylinder body.

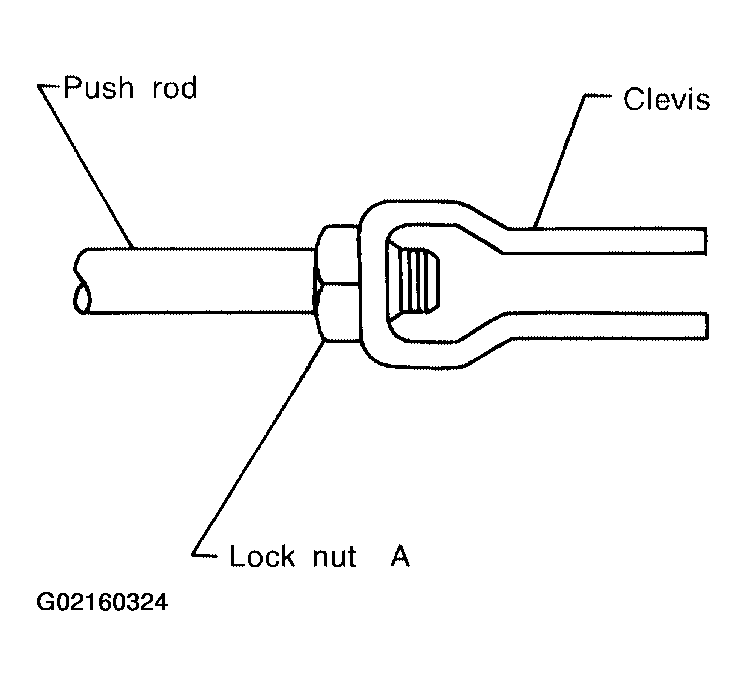

    Fig 1: Removing Clevis And Lock Nut A
    G02160324Courtesy of NISSAN MOTOR CO., U.S.A.
