Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

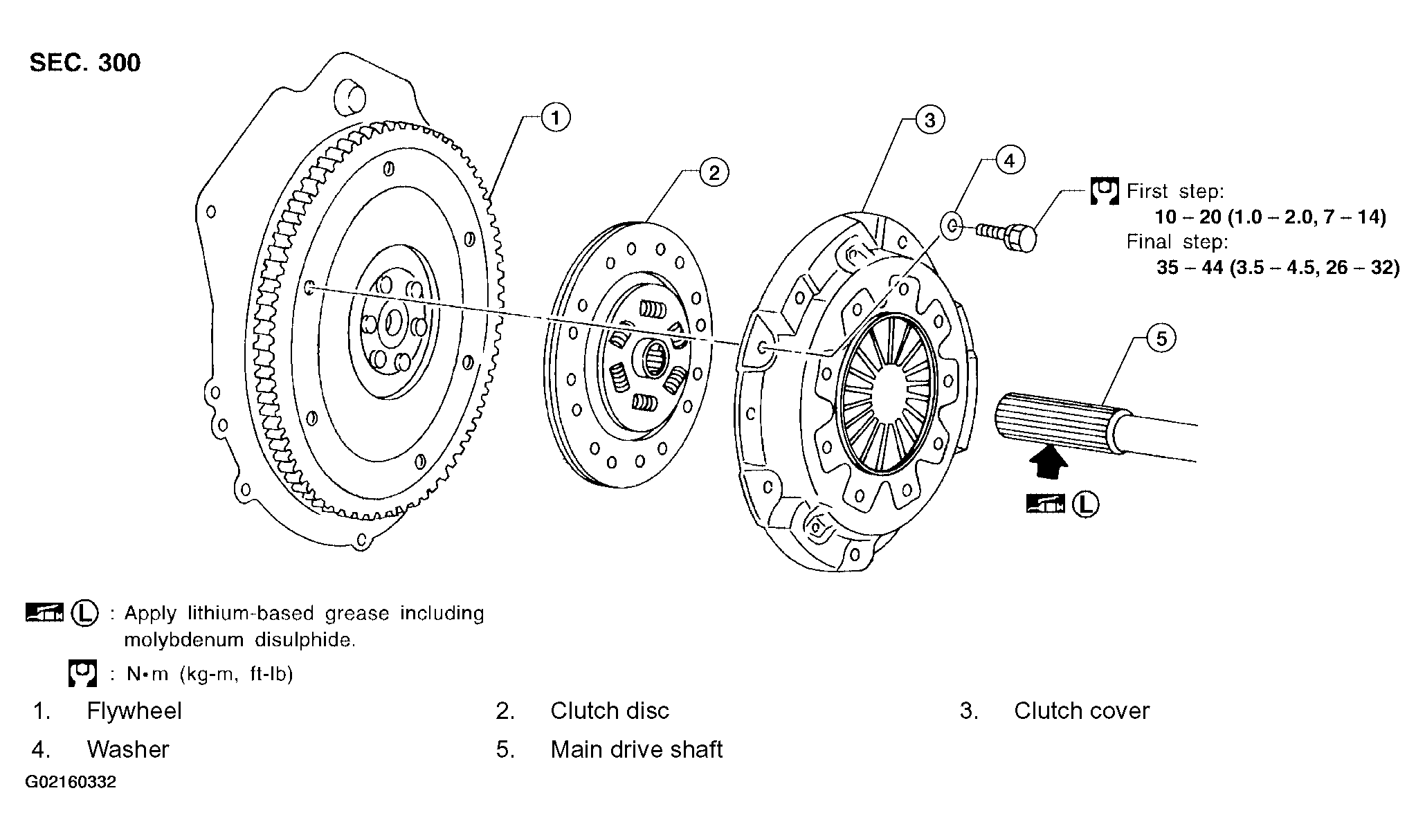

Fig 1: Removing Clutch Disc, Clutch Cover And Flywheel And Torque Specification
G02160332Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Do not clean the clutch disc with solvent.
  • When installing, do not get grease from the main drive shaft onto the clutch disc friction surface.
