Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Remove tank using Tool.

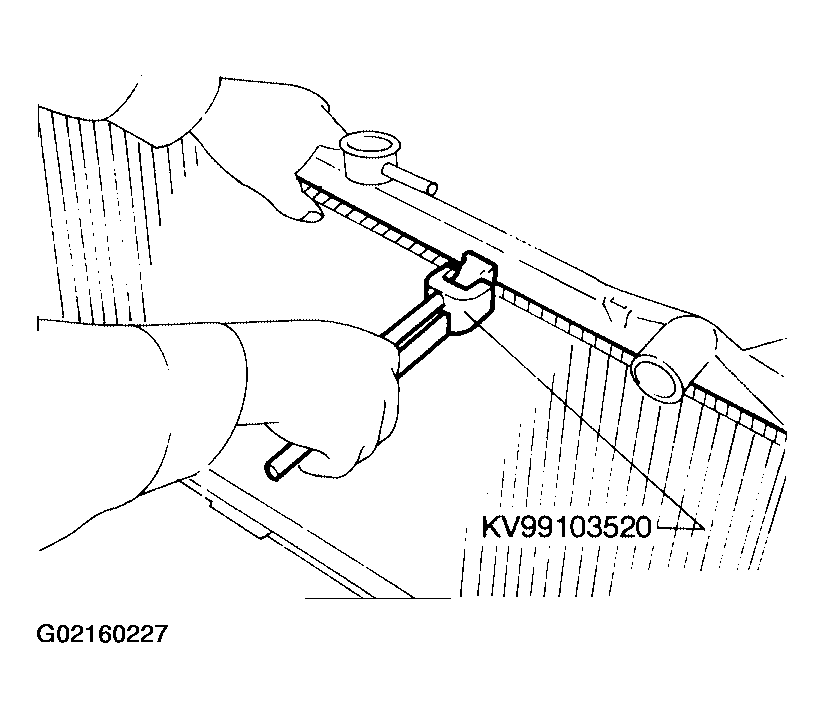

Fig 1: Removing Tank Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
- Grip the crimped edge and bend it upwards so that Tool slips off.
  CAUTION: Do not bend excessively.

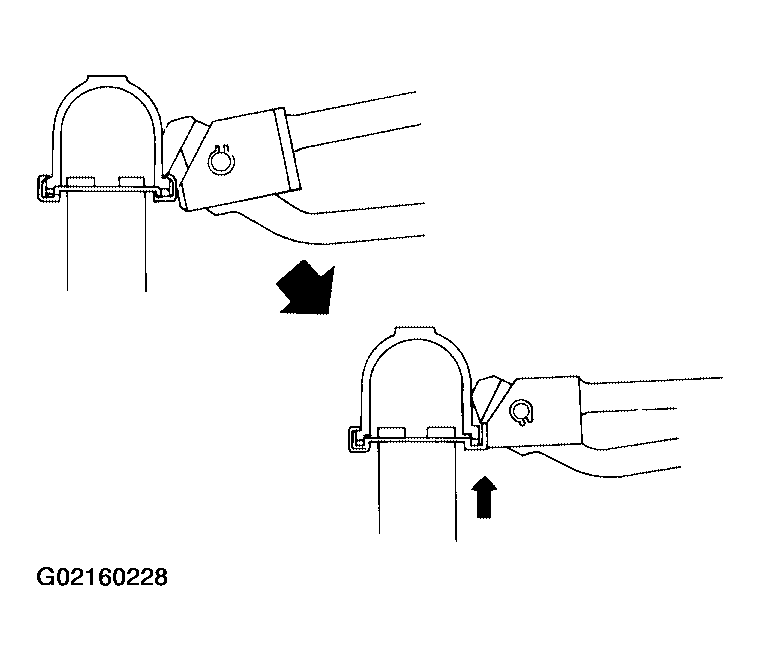

  Fig 2: Gripping Crimped Edge And Bend It Upwards
  Courtesy of NISSAN MOTOR CO., U.S.A.
- In areas where Tool cannot be used, use a screwdriver to bend the edge up.
  CAUTION: Be careful not to damage tank.

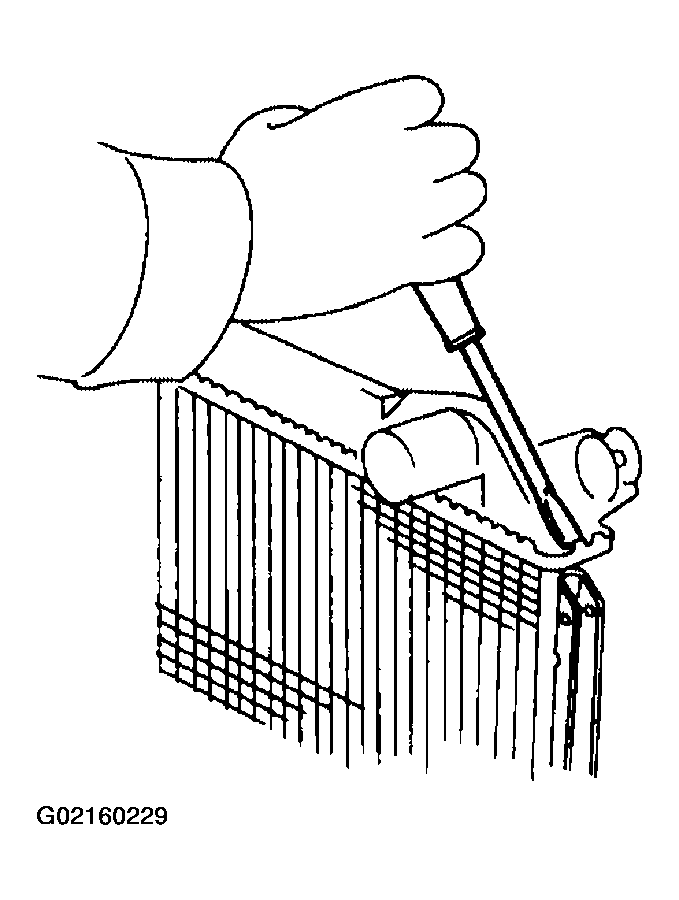

Fig 3: Bending Edge Up Using Screwdriver
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure the edge stands straight up.
Remove oil cooler from tank (A/T model only).

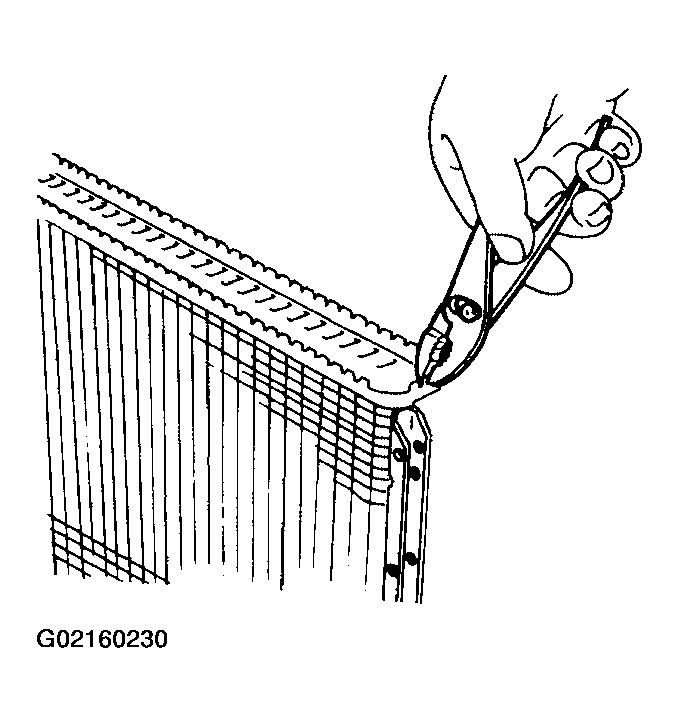

Fig 4: Straightening Up Edge Stands
Courtesy of NISSAN MOTOR CO., U.S.A.
