Liquid Gasket Application Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Using a scraper, remove the old sealant adhering to the mating surface.
- Remove the sealant completely from the groove, mounting bolts, and bolt holes.
Clean the mating surface thoroughly to remove adhering moisture, grease and foreign materials.
Install the sealant tube into the tube presser.
Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

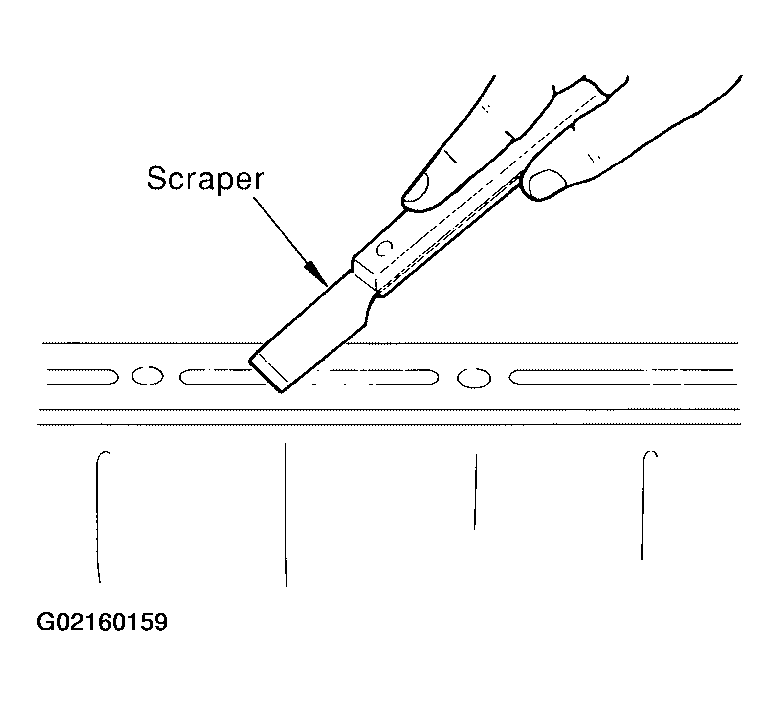

Fig 1: Removing Old Sealant Adhering To Mating Surface
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply the sealant without breaks to the specified area with the specified dimensions.

If there is a groove for the sealant application, apply the sealant to the groove.

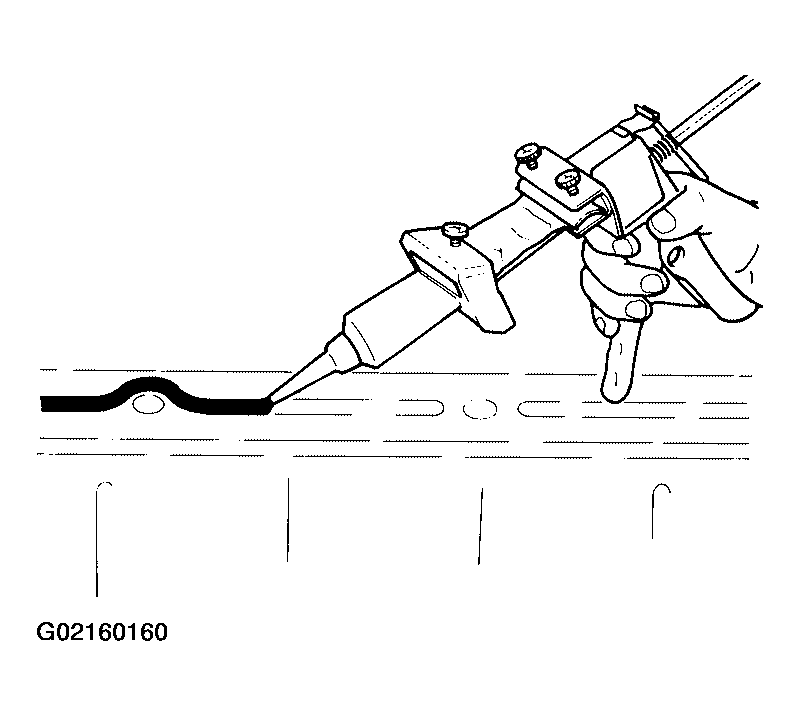

Fig 2: Applying Sealant Without Breaks To Specified Area With Specified Dimensions
Courtesy of NISSAN MOTOR CO., U.S.A.
As for the bolt holes, normally apply the sealant inside the holes. If specified, it should be applied outside the holes. Make sure to read the instructions in this manual.
Within five minutes of sealant application, install the mating component.
If the sealant protrudes, wipe it off immediately.
Do not retighten after the installation.
After 30 minutes or more have passed from the installation, fill the engine with the correct oil and coolant. Refer to CAPACITIES .

CAUTION: If there are specific instructions in this information, observe them.

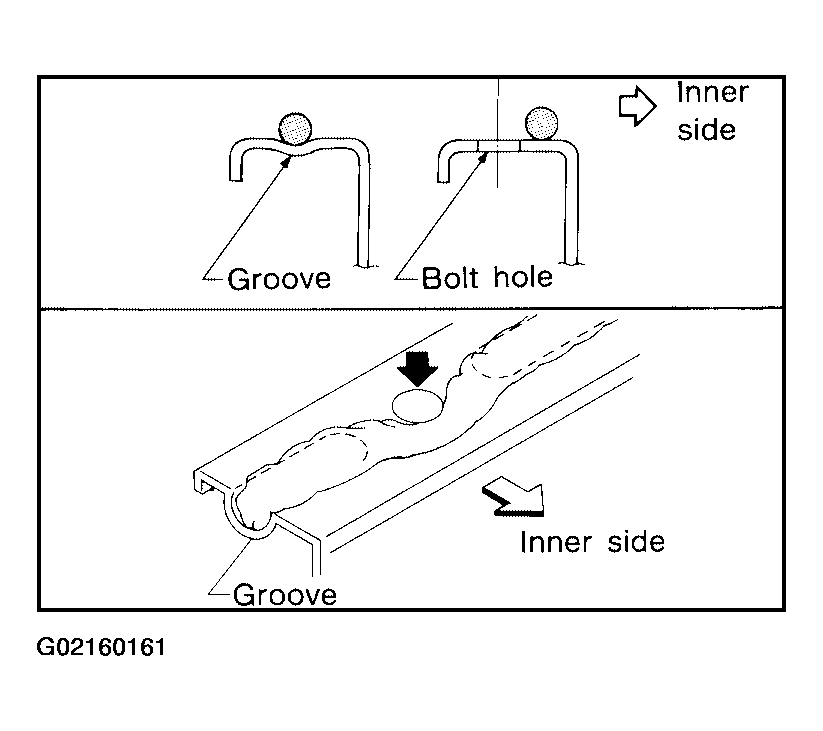

Fig 3: Applying Sealant Inside Holes

Courtesy of NISSAN MOTOR CO., U.S.A.
