Wiring Diagram - AT - NONDTC

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagrams referring to PG-POWER, see POWER DISTRIBUTION . For complete wiring diagrams, see SYSTEM WIRING DIAGRAMS .

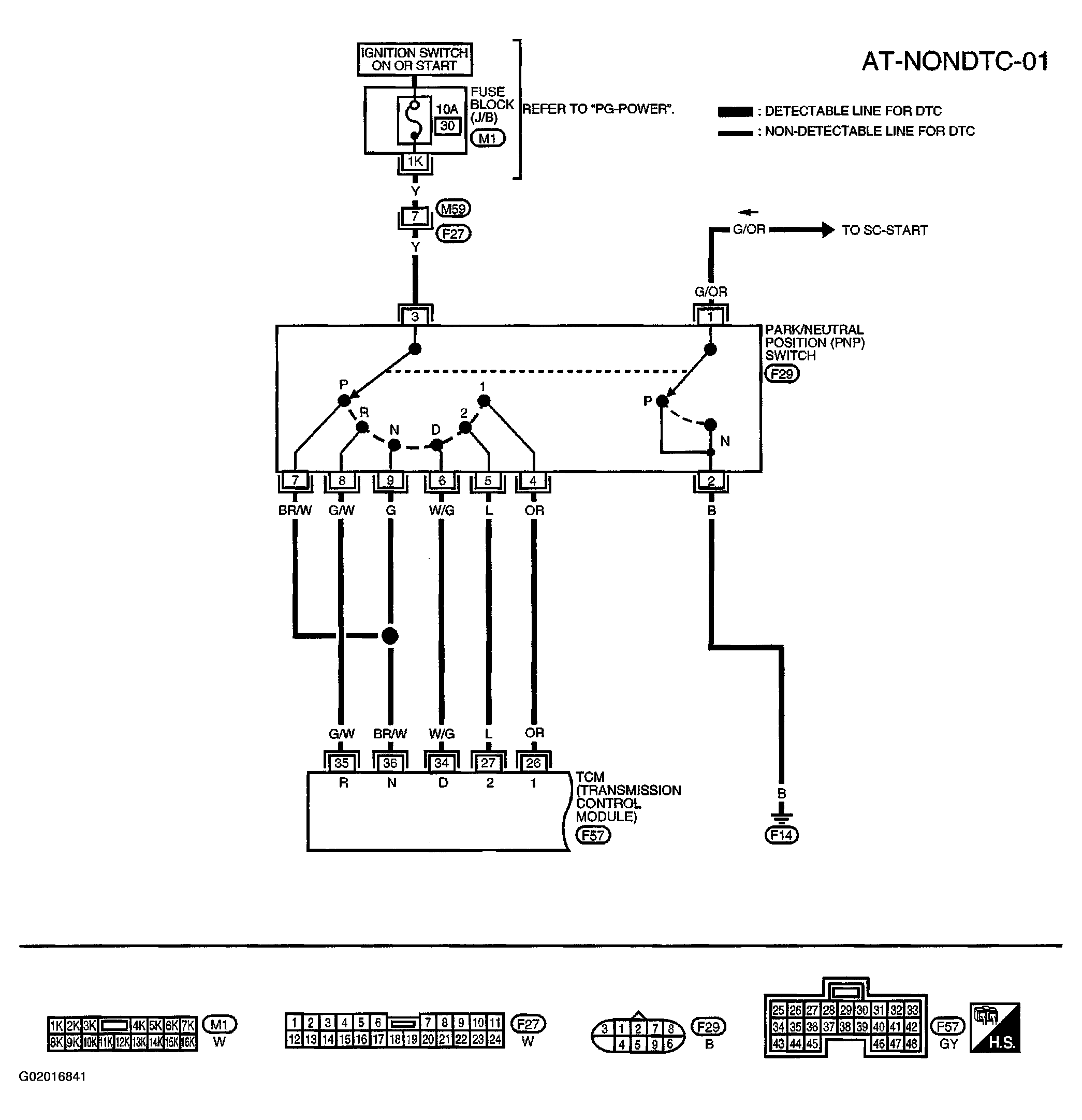

Fig 1: NONDTC Circuit And Identifying Connectors

G02016841

Courtesy of NISSAN MOTOR CO., U.S.A.

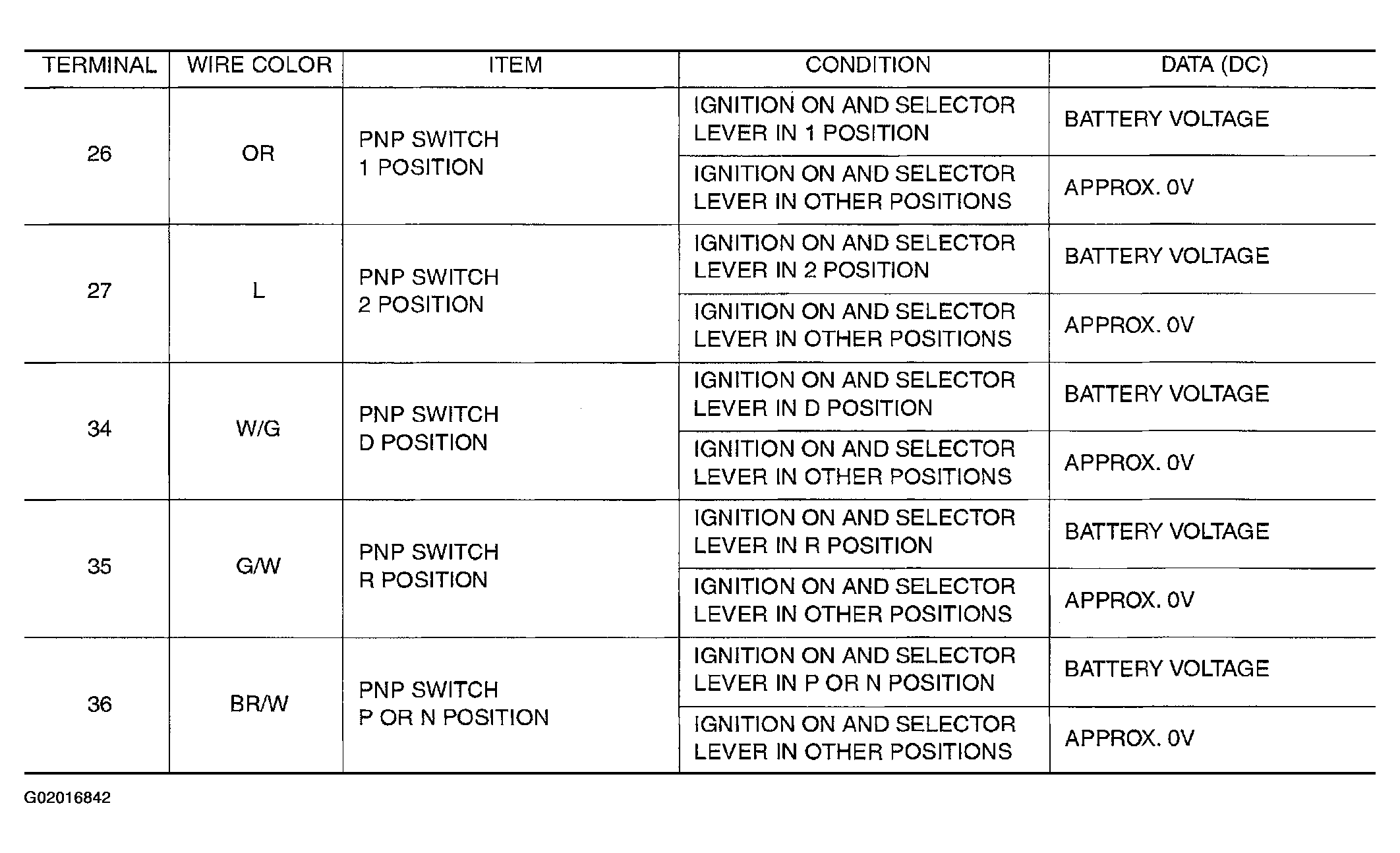

Fig 2: TCM Terminal Reference Values

G02016842

Courtesy of NISSAN MOTOR CO., U.S.A.

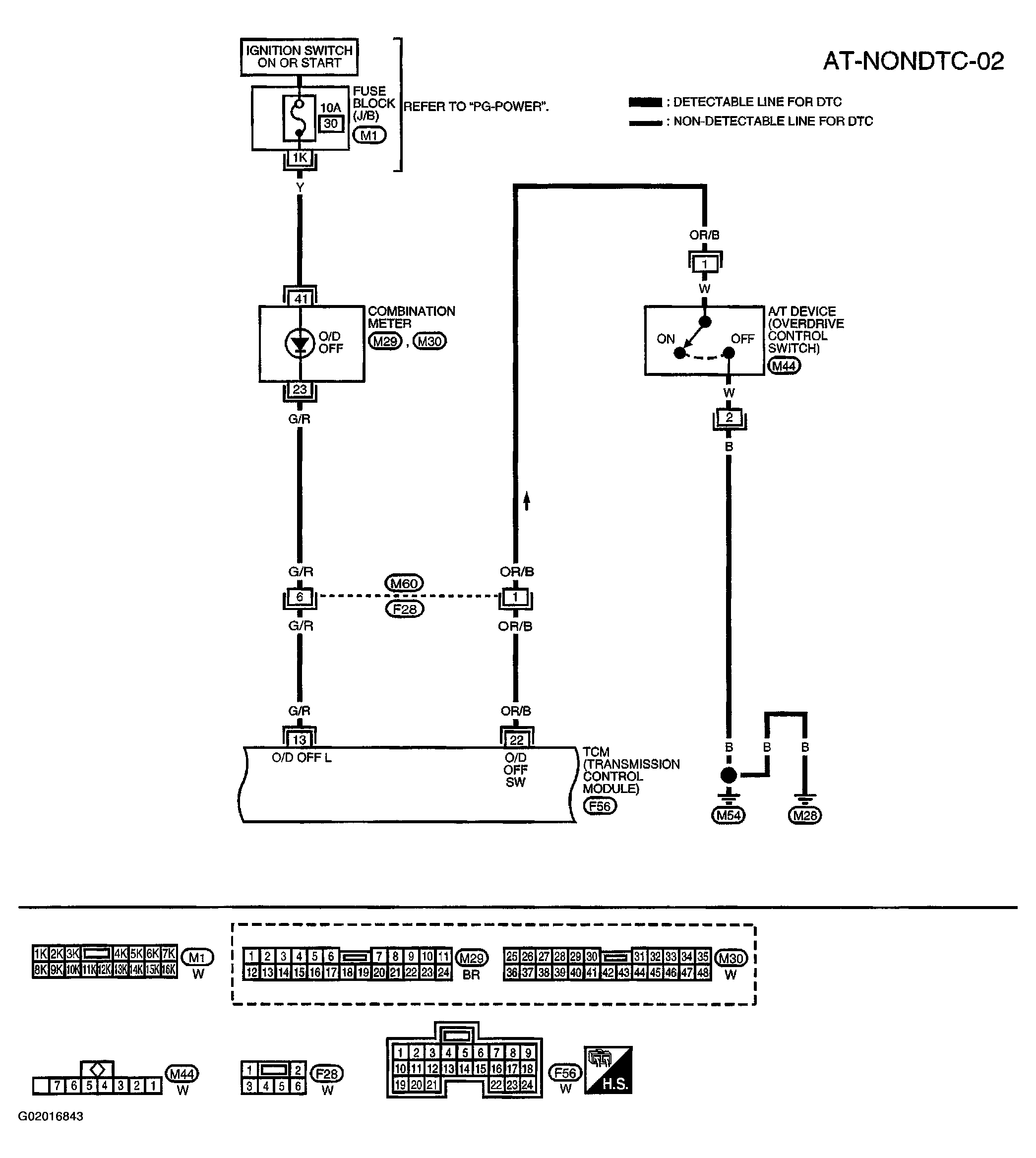

Fig 3: NONDTC Circuit And Identifying Connectors

G02016843

Courtesy of NISSAN MOTOR CO., U.S.A.

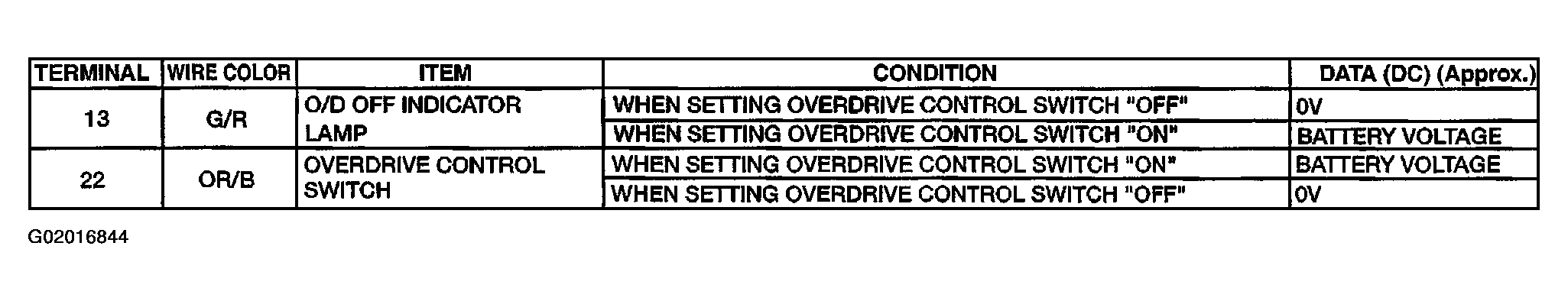

Fig 4: TCM Terminal Reference Values

G02016844

Courtesy of NISSAN MOTOR CO., U.S.A.

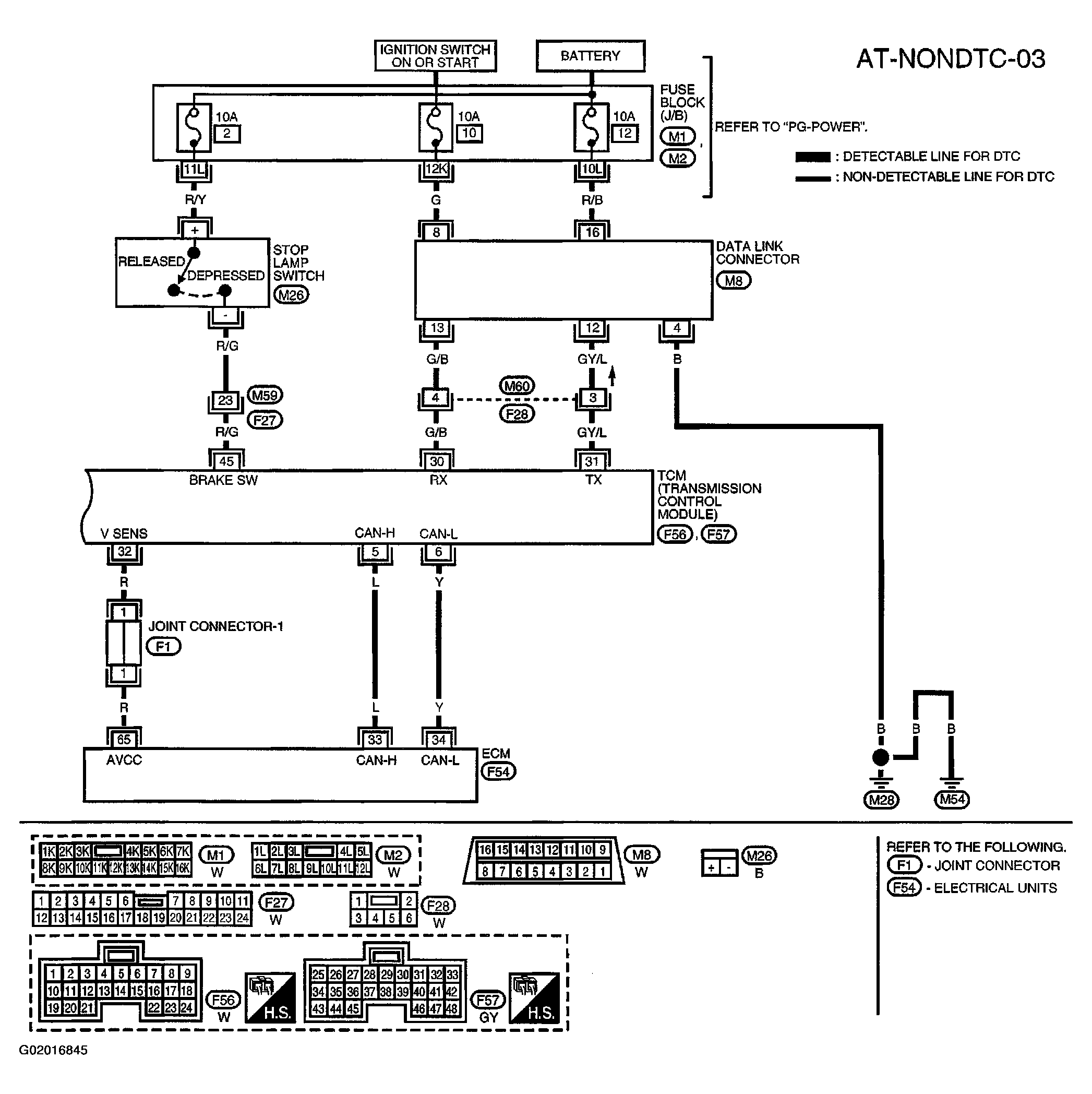

Fig 5: NONDTC Circuit And Identifying Connectors

G02016845

Courtesy of NISSAN MOTOR CO., U.S.A.

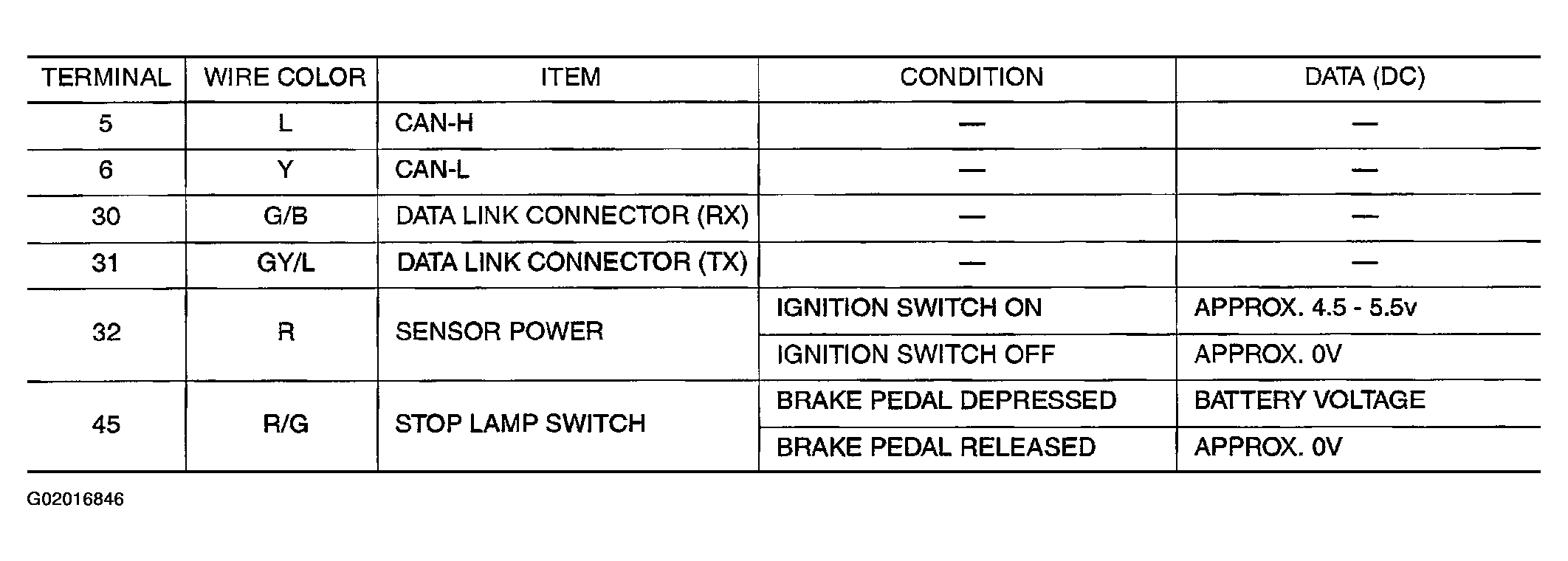

Fig 6: TCM Terminal Reference Values

G02016846

Courtesy of NISSAN MOTOR CO., U.S.A.
