Symptom:

Vehicle moves forward or backward when selecting N position.

1. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH CIRCUIT

   With CONSULT-II

   Does TCM INPUT SIGNALS in DATA MONITOR show damage to park/neutral position (PNP) switch circuit?

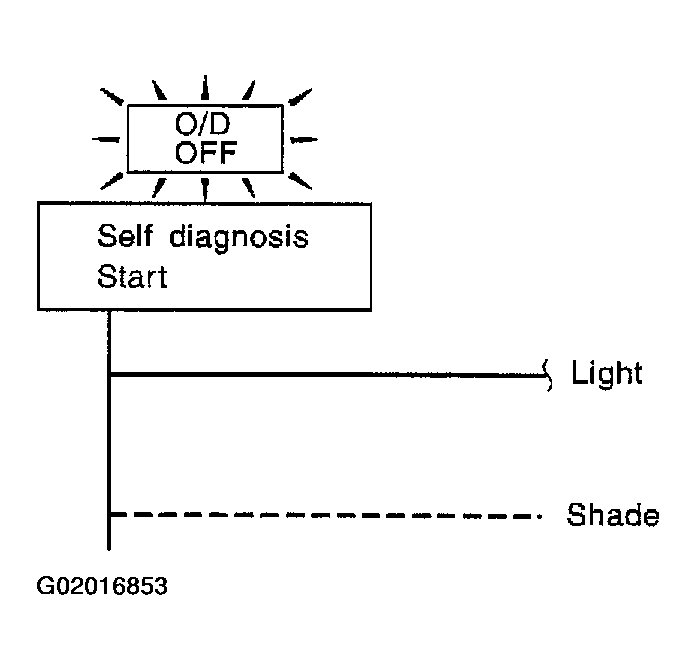

   Fig 1: Checking Park/Neutral Position Switch Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Without CONSULT-II

   Does self-diagnosis show damage to park/neutral position (PNP) switch circuit?

   Yes or No

   1. Yes: Check park/neutral position (PNP) switch circuit. Refer to DTC P0705 PARK/NEUTRAL POSITION SWITCH .
   2. No: GO TO 2.
2. CHECK CONTROL LINKAGE

   Check control cable.

   OK or NG

   1. OK: GO TO  4.
   2. NG: GO TO 3.
3. ADJUST CONTROL CABLE

   Adjust control cable.

   : Refer to CONTROL CABLE ADJUSTMENT .

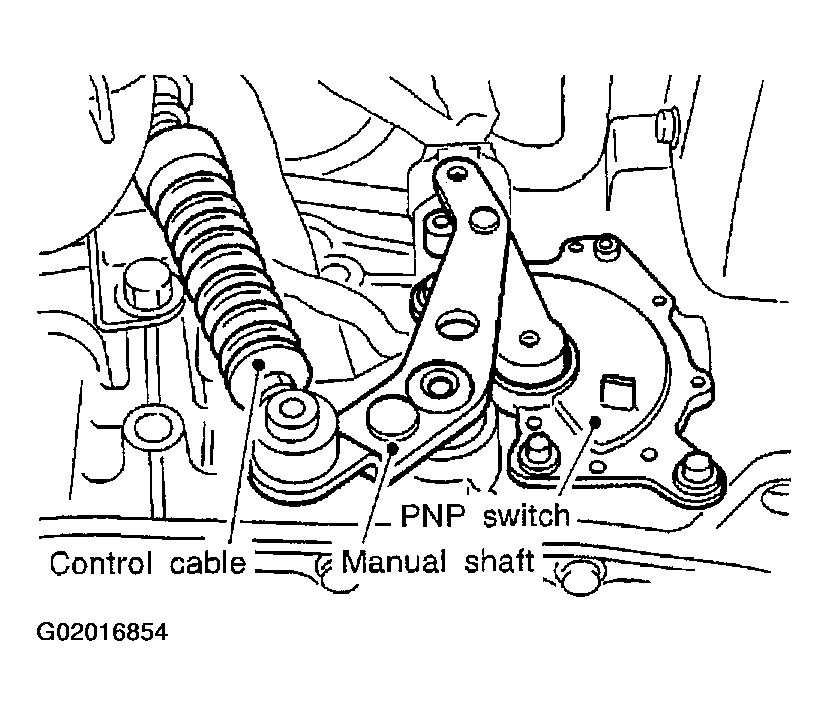

   Fig 2: Locating Control Cable

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. CHECK A/T FLUID LEVEL

   Check A/T fluid level.

   OK or NG

   1. OK: GO TO 5.
   2. NG: Refill ATF.
5. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

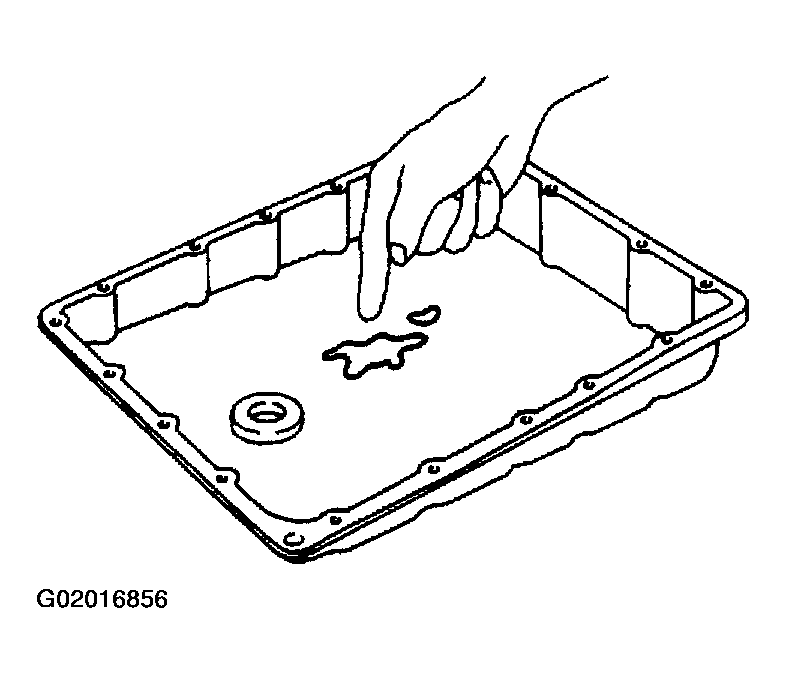

      Fig 3: Checking Automatic Transaxle Fluid Condition

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO  7.
   2. NG: GO TO 6.
6. DETECT MALFUNCTIONING ITEM
   1. Disassemble A/T.
   2. Check the following items:
   • Forward clutch assembly
   • Overrun clutch assembly
   • Reverse clutch assembly

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
7. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 8.
8. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
