Symptom:

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Vehicle moves when it is pushed forward or backward with selector lever in P position.

  1. CHECK PARKING COMPONENTS

    Check parking components. Refer to OVERHAUL  and ASSEMBLY .

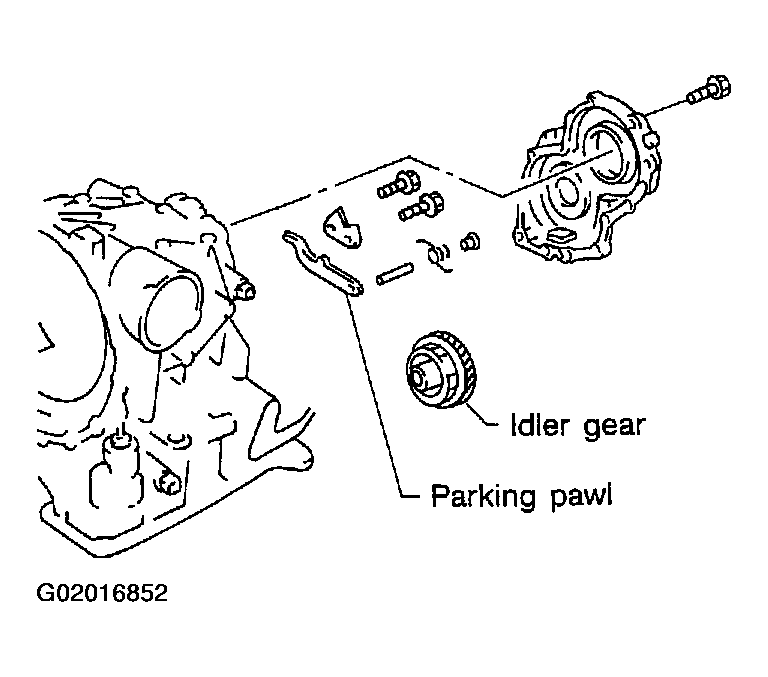

    Fig 1: Locating Idler Gear And Parking Pawl
    G02016852Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: INSPECTION END
    2. NG: Repair or replace damaged parts.
