Symptom:

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH CIRCUIT

    With CONSULT-II

    Does TCM INPUT SIGNALS in DATA MONITOR show damage to park/neutral position (PNP) switch circuit?

    Without CONSULT-II

    Does self-diagnosis show damage to park/neutral position (PNP) switch circuit?

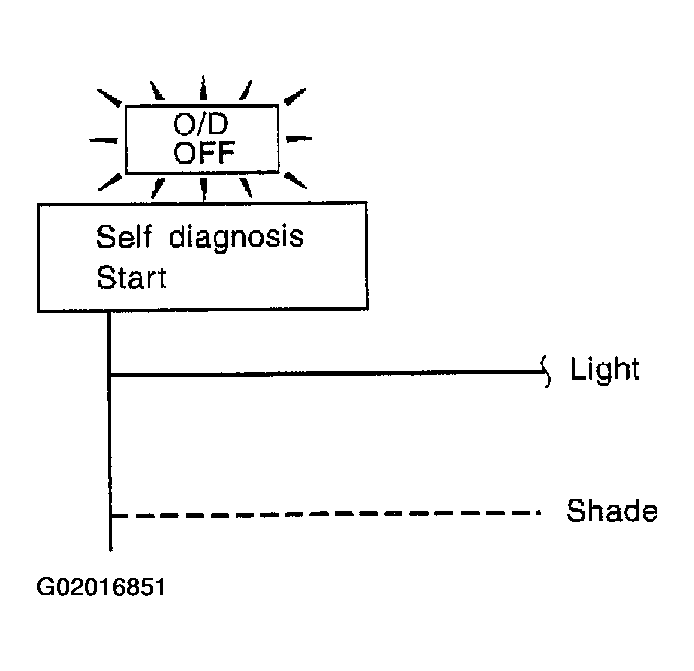

    Fig 1: Checking Park/Neutral Position Switch Circuit
    G02016851Courtesy of NISSAN MOTOR CO., U.S.A.

    Yes or No

    1. Yes: Check park/neutral position (PNP) switch circuit. Refer to DTC P0705 PARK/NEUTRAL POSITION SWITCH .
    2. No: GO TO 2.
  2. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

    Check for short or open of park/neutral position (PNP) switch harness connector terminals 1 and 2. Refer to WIRING DIAGRAM - AT - PNP/SW .

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace park/neutral position (PNP) switch.
  3. CHECK STARTING SYSTEM

    Check starting system. Refer to STARTING SYSTEM .

    OK or NG

    1. OK: INSPECTION END
    2. NG: Repair or replace damaged parts.
