Symptom:

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

A/T does not shift from D3 to 2(2) when changing selector lever from D to 2 position.

  1. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH CIRCUIT

    With CONSULT-II

    Does TCM INPUT SIGNALS in DATA MONITOR show damage to park/neutral position (PNP) switch circuit?

    Without CONSULT-II

    Does self-diagnosis show damage to park/neutral position (PNP) switch circuit?

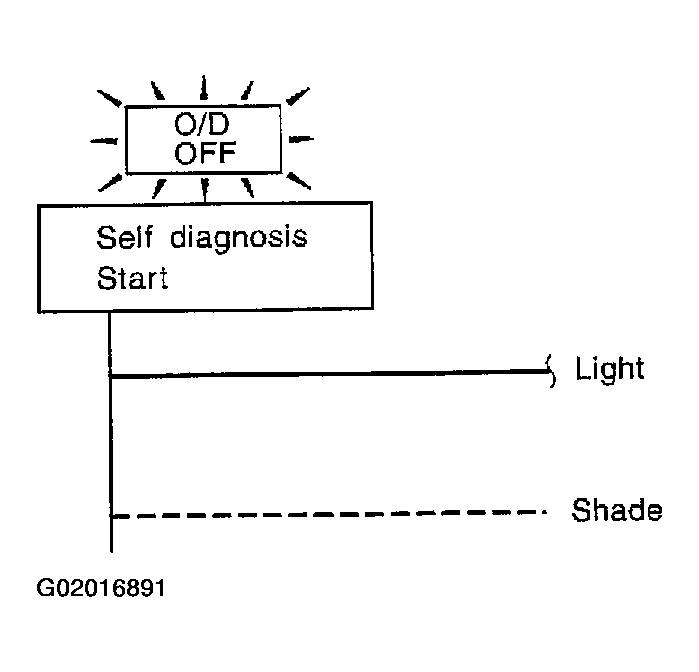

    Fig 1: Checking PNP Switch Circuit (1 Of 2)
    G02016891Courtesy of NISSAN MOTOR CO., U.S.A.

    Yes or No

    1. Yes: Check park/neutral position (PNP) switch circuit. Refer to DTC P0705 PARK/NEUTRAL POSITION SWITCH .
    2. No: Go to 9. A/T DOES NOT SHIFT: D1 --> D2 OR DOES NOT KICKDOWN: D4 --> D2 .
