  1. CHECK SYMPTOM

    Are 7. Vehicle Does Not Creep Forward In D, 2 Or 1 Position and 8. Vehicle Cannot Be Started From D1 OK?

    Yes or No

    1. Yes: GO TO 2.
    2. No: Go to 7. VEHICLE DOES NOT CREEP FORWARD IN D, 2 OR 1 POSITION  and 8. VEHICLE CANNOT BE STARTED FROM D1 .
  2. CHECK SELF-DIAGNOSTIC RESULTS

    With CONSULT-II

    Does self-diagnosis, after cruise test, show damage to any of the following circuits?

    • Park/neutral position (PNP) switch
    • Overdrive control switch
    • A/T fluid temperature sensor
    • Vehicle speed SENSOR.A/T (revolution sensor)
    • Shift solenoid valve A or B
    • Vehicle speed SENSOR.MTR

    Yes or No

    1. Yes: Check damaged circuit. Refer to DTC P0705 PARK/NEUTRAL POSITION SWITCH , DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT , DTC P0720 VEHICLE SPEED SENSOR.A/T (REVOLUTION SENSOR) , DTC P0750 SHIFT SOLENOID VALVE A , DTC P0755 SHIFT SOLENOID VALVE B , or DTC VEHICLE SPEED SENSOR MTR .
    2. No: GO TO 3.

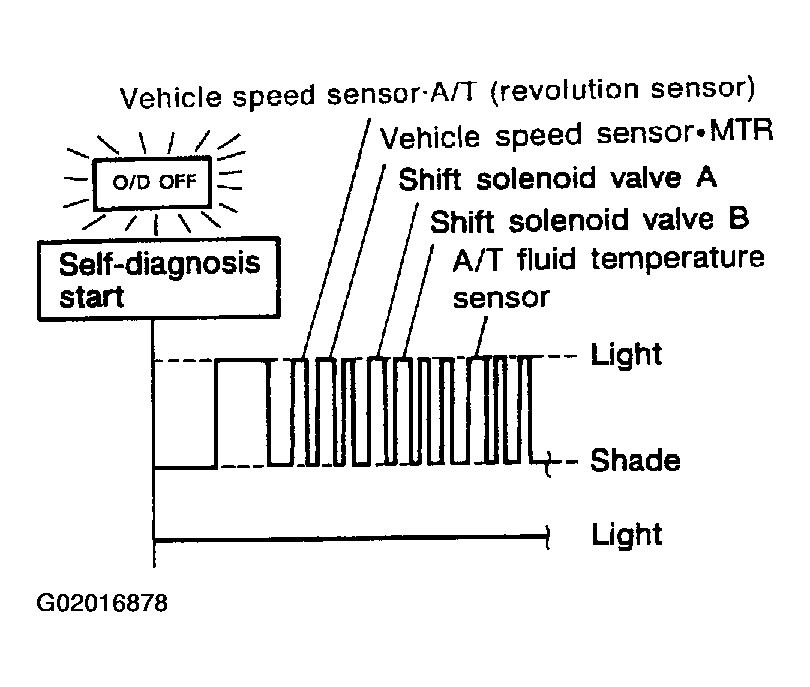

    Fig 1: Checking Self-Diagnostic Result (With CONSULT-II)
    G02016878Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR]

    Check throttle position sensor [accelerator pedal position (APP) sensor]. Refer to DTC P0221 TP SENSOR and DTC P0226 APP SENSOR .

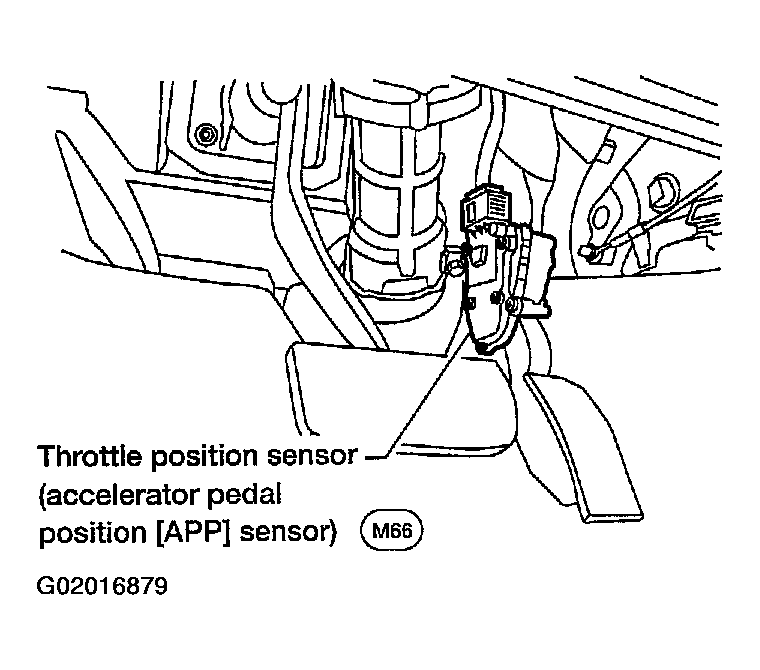

    Fig 2: Locating Throttle Position Sensor Components
    G02016879Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair or replace throttle position sensor [accelerator pedal position (APP) sensor].
  4. CHECK A/T FLUID CONDITION
    1. Remove oil pan.
    2. Check A/T fluid condition.

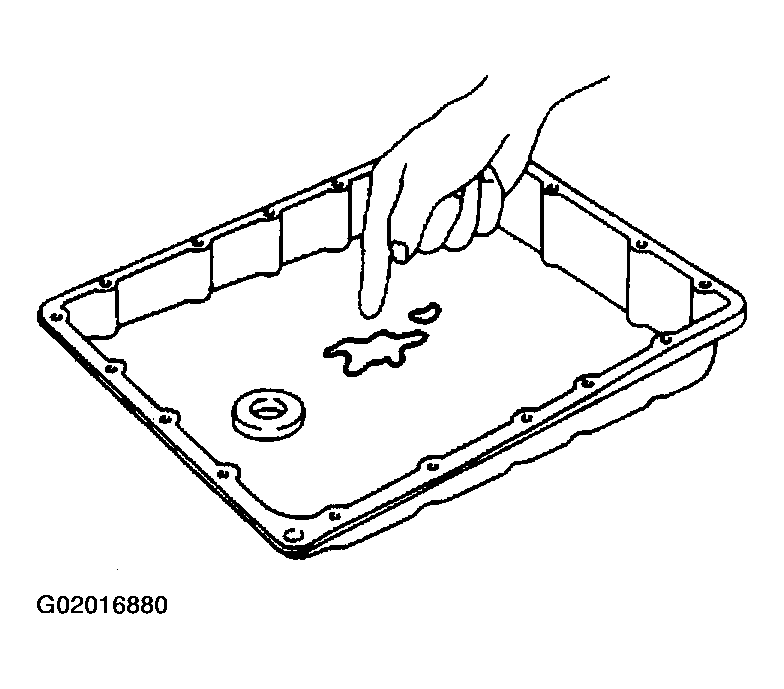

      Fig 3: Checking Automatic Transaxle Fluid Condition
      G02016880Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  6.
    2. NG: GO TO 5.
  5. DETECT MALFUNCTIONING ITEM
    1. Remove control valve assembly. Refer to REMOVAL .
    2. Check the following items:
      • Shift valve B
      • Overrun clutch control valve
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter
    3. Disassemble A/T.
    4. Check the following items:
      • Servo piston assembly
      • Brake band
      • Torque converter
      • Oil pump assembly

    OK or NG

    1. OK: GO TO  7.
    2. NG: Repair or replace damaged parts.
  6. DETECT MALFUNCTIONING ITEM
    1. Remove control valve assembly. Refer to REMOVAL .
    2. Check the following items:
    • Shift valve B
    • Overrun clutch control valve
    • Shift solenoid valve B
    • Pilot valve
    • Pilot filter

    OK or NG

    1. OK: GO TO 7.
    2. NG: Repair or replace damaged parts.
  7. CHECK SYMPTOM

    Check again.

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO 8.
  8. CHECK TCM INSPECTION
    1. Perform TCM input/output signal inspection.
    2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

    OK or NG

    1. OK: INSPECTION END
    2. NG: Repair or replace damaged parts.
