Symptom:

A/T does not shift from D2 to D3 at the specified speed.

1. CHECK SYMPTOM

   Are 7. Vehicle Does Not Creep Forward In D, 2 Or 1 Position and 8. Vehicle Cannot Be Started From D1 OK?

   Yes or No

   1. Yes: GO TO 2.
   2. No: Go to 7. VEHICLE DOES NOT CREEP FORWARD IN D, 2 OR 1 POSITION  and 8. VEHICLE CANNOT BE STARTED FROM D1 .
2. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH CIRCUIT

   With CONSULT-II

   Does TCM INPUT SIGNALS in DATA MONITOR show damage to park/neutral position (PNP) switch circuit?

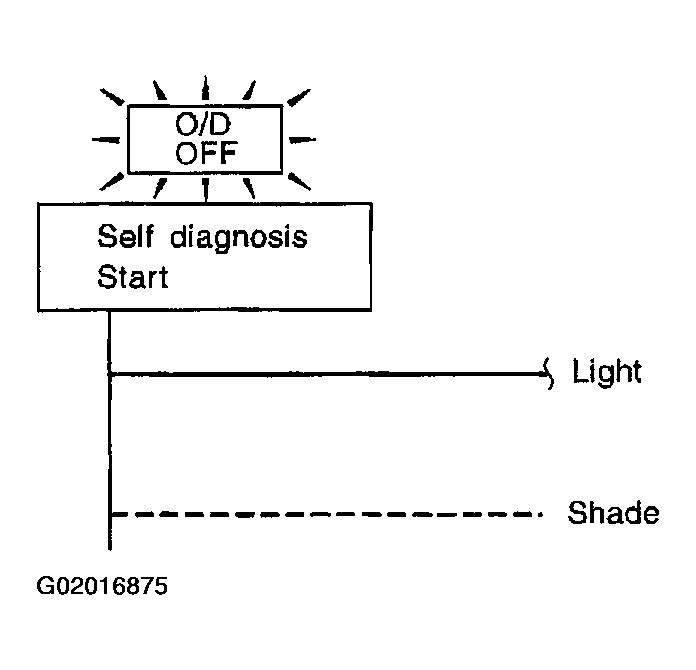

   Fig 1: Checking PNP Switch Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Without CONSULT-II

   Does self-diagnosis show damage to park/neutral position (PNP) switch circuit?

   Yes or No

   1. Yes: Check park/neutral position (PNP) switch circuit. Refer to DTC P0705 PARK/NEUTRAL POSITION SWITCH .
   2. No: GO TO 3.
3. CHECK THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR]

   Check throttle position sensor [accelerator pedal position (APP) sensor]. Refer to DTC P0221 TP SENSOR and DTC P0226 APP SENSOR .

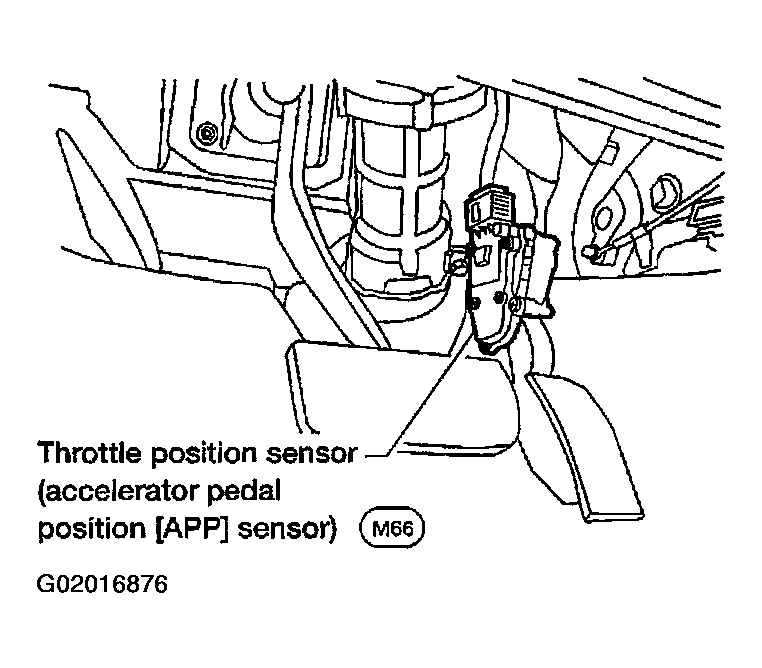

   Fig 2: Locating Throttle Position Sensor Components

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace throttle position sensor [accelerator pedal position (APP) sensor].
4. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.
      Fig 3: Checking Automatic Transaxle Fluid Condition

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO  6.
   2. NG: GO TO 5.
5. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to REMOVAL .
   2. Check the following items:
      • Shift valve B
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter
   3. Disassemble A/T.
   4. Check the following items:
      • Servo piston assembly
      • High clutch assembly
      • Oil pump assembly

   OK or NG

   1. OK: GO TO  7.
   2. NG: Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to REMOVAL .
   2. Check the following items:
   • Shift valve B
   • Shift solenoid valve B
   • Pilot valve
   • Pilot filter

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
7. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 8.
8. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
