WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
(Data are reference values.)

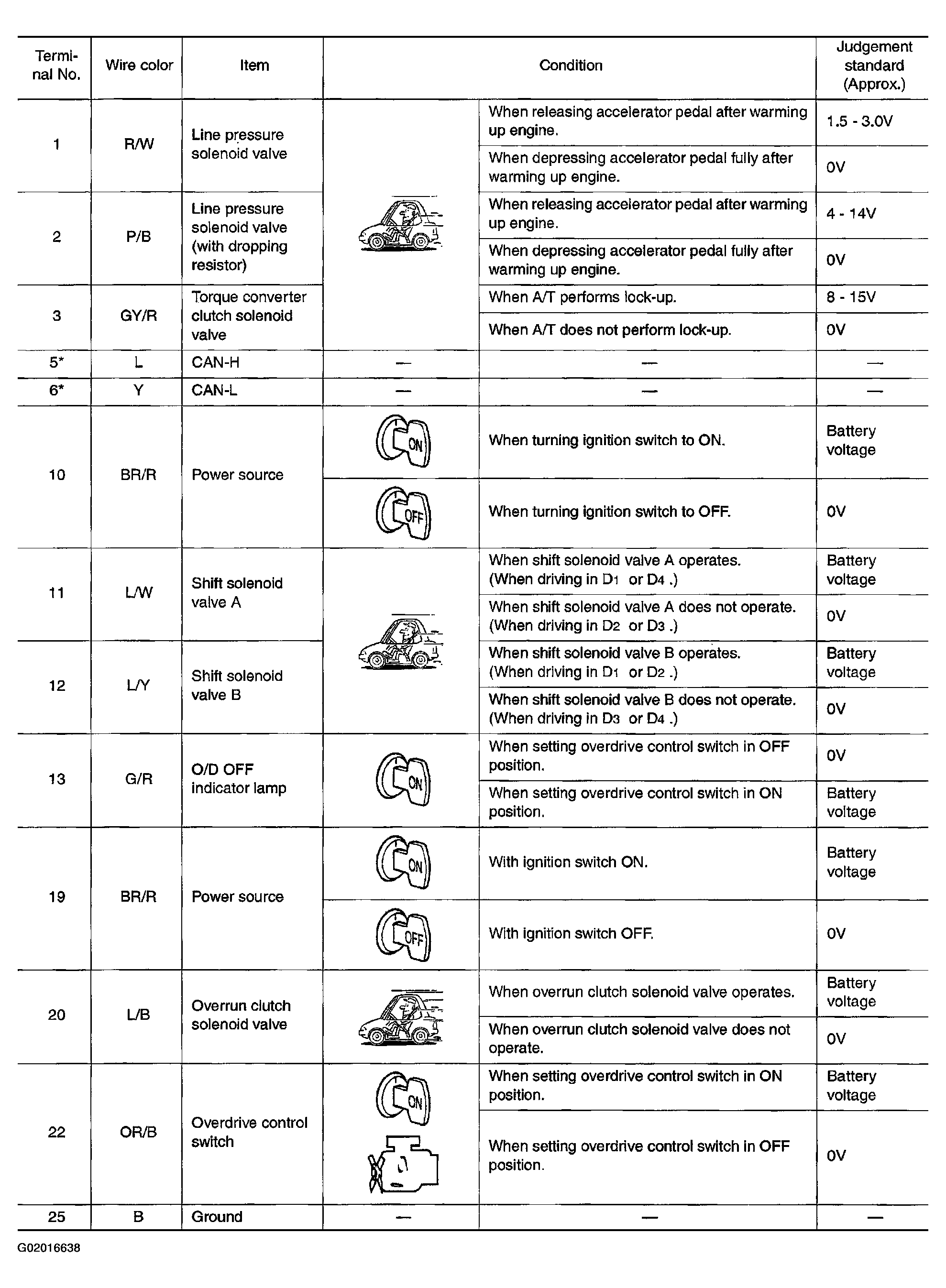

Fig 1: TCM Terminals Voltage Specifications (Terminal 1 To 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

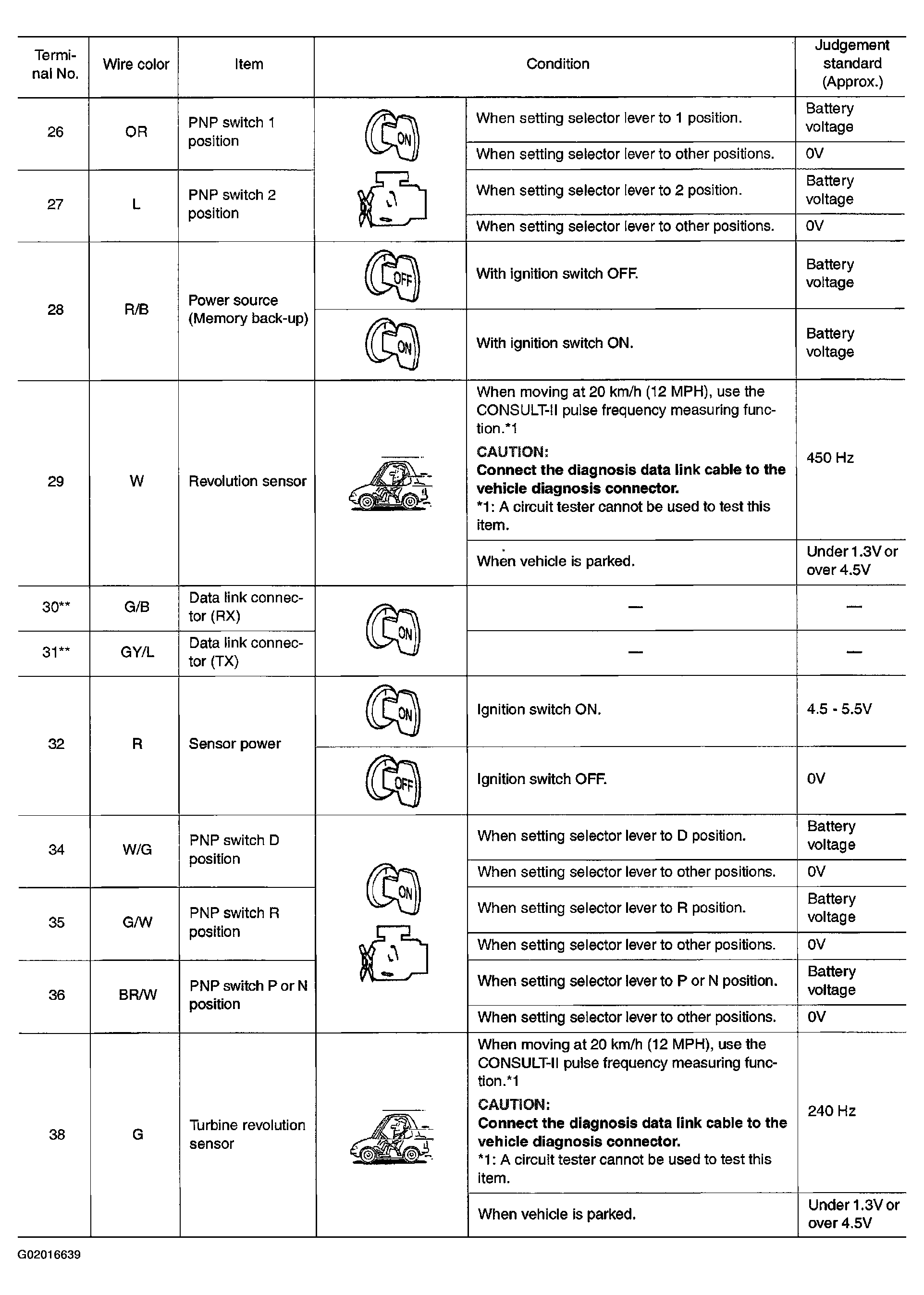

Fig 2: TCM Terminals Voltage Specifications (Terminal 26 To 38)
Courtesy of NISSAN MOTOR CO., U.S.A.

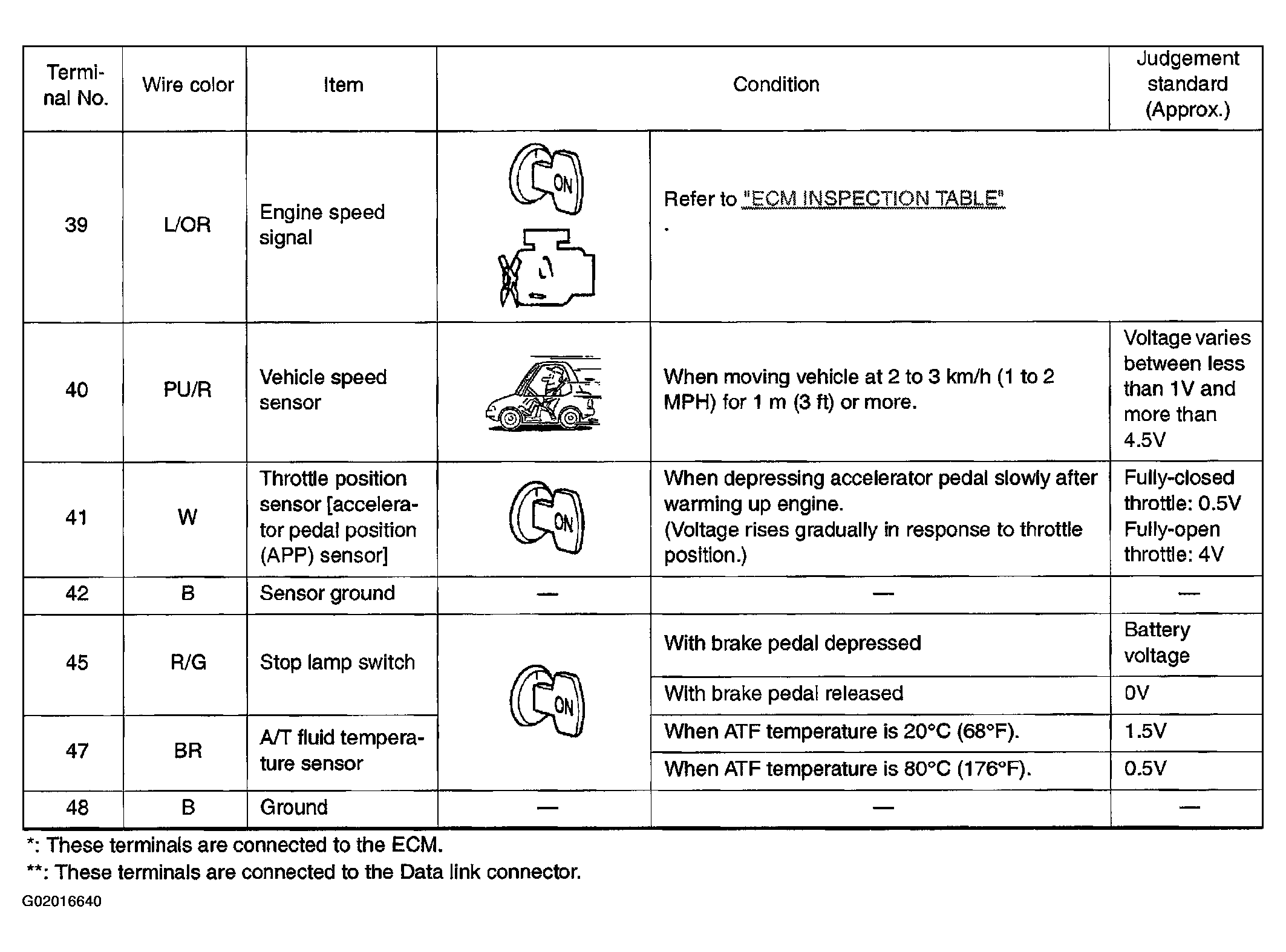

Fig 3: TCM Terminals Voltage Specifications (Terminal 39 To 48)
