Symptom Chart

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Numbers are arranged in order of inspection.

Perform inspections starting with number one and work up.

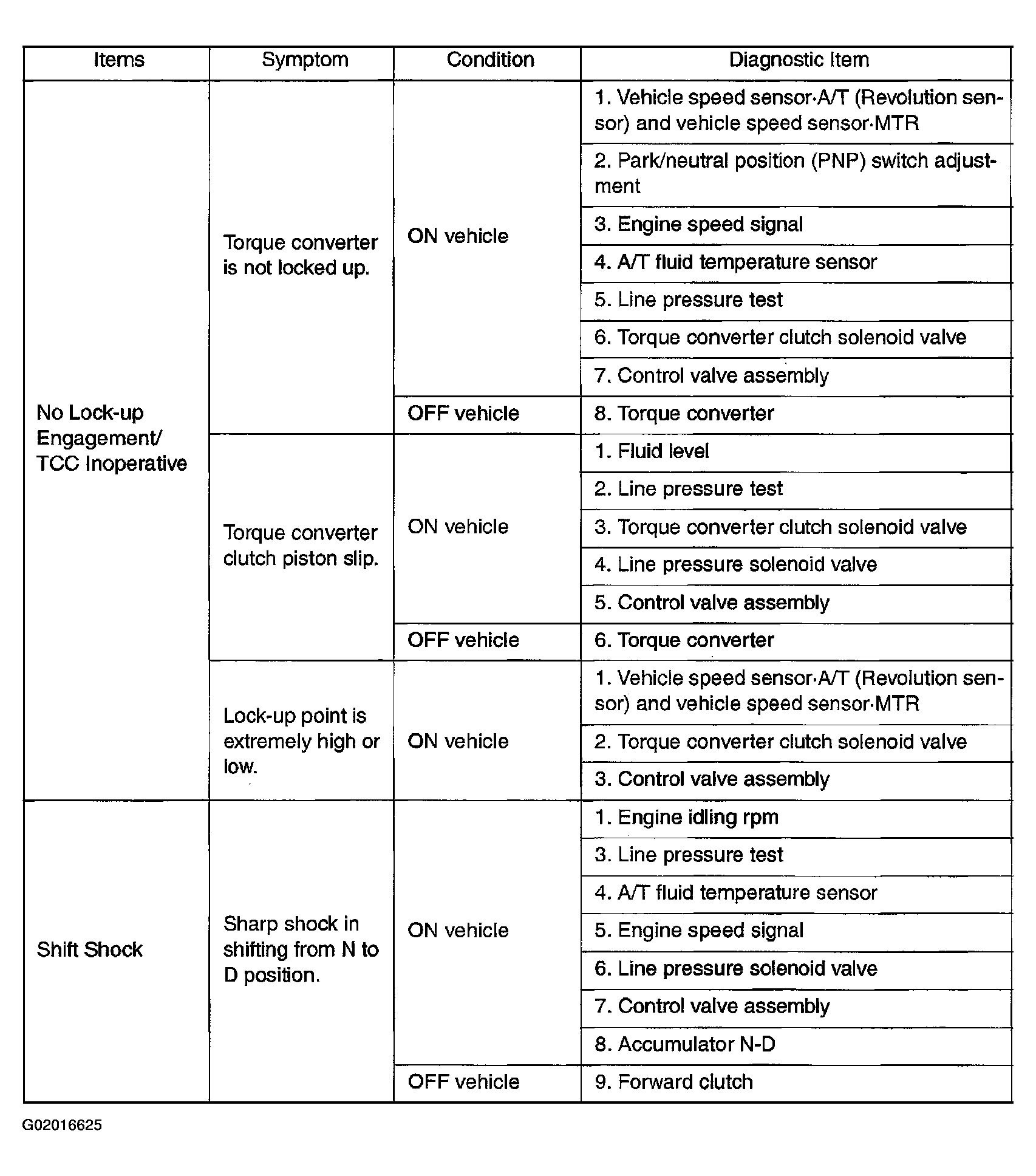

Fig 1: Symptom Chart (1 Of 11)

G02016625

Courtesy of NISSAN MOTOR CO., U.S.A.

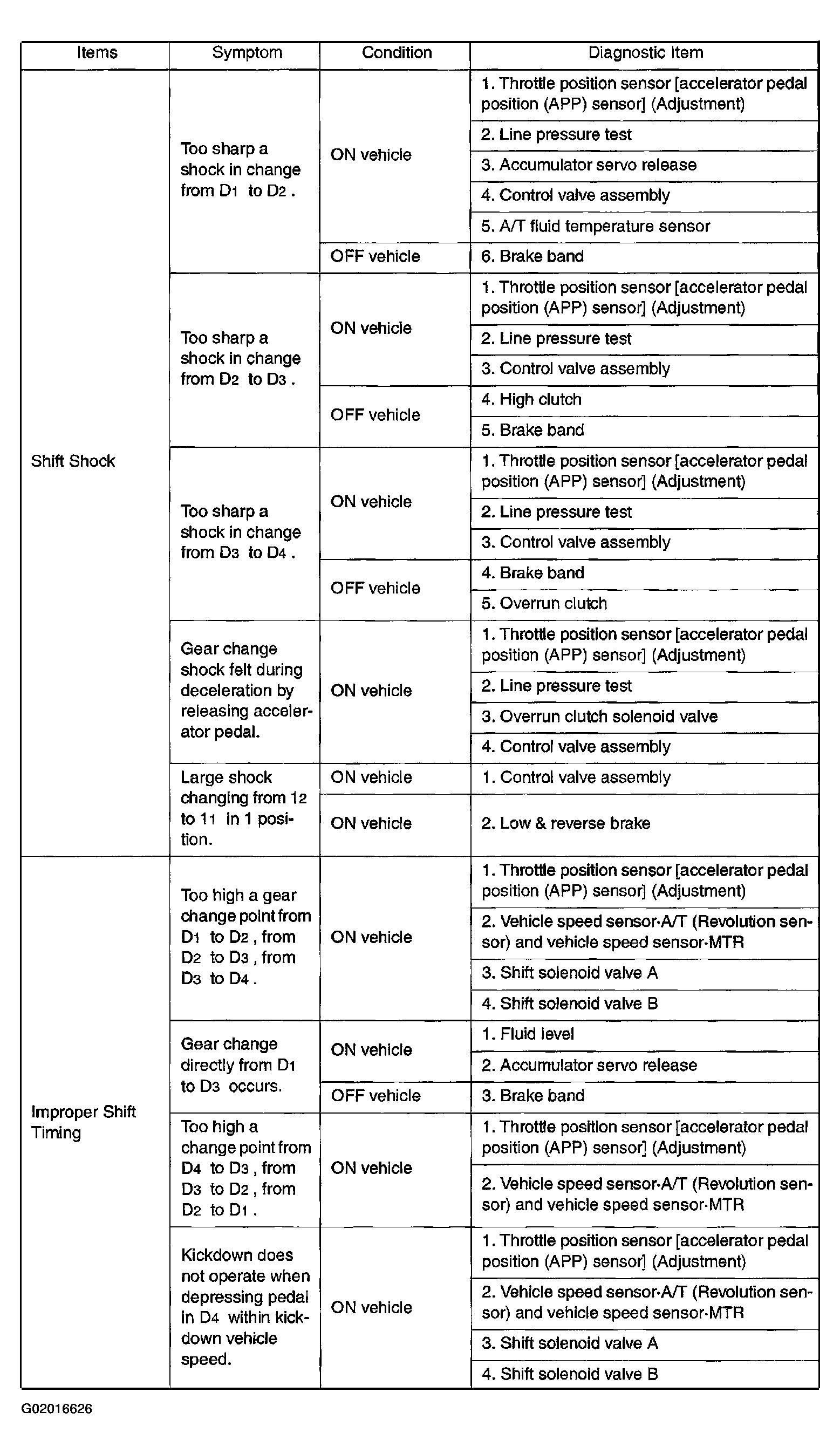

Fig 2: Symptom Chart (2 Of 11)

G02016626

Courtesy of NISSAN MOTOR CO., U.S.A.

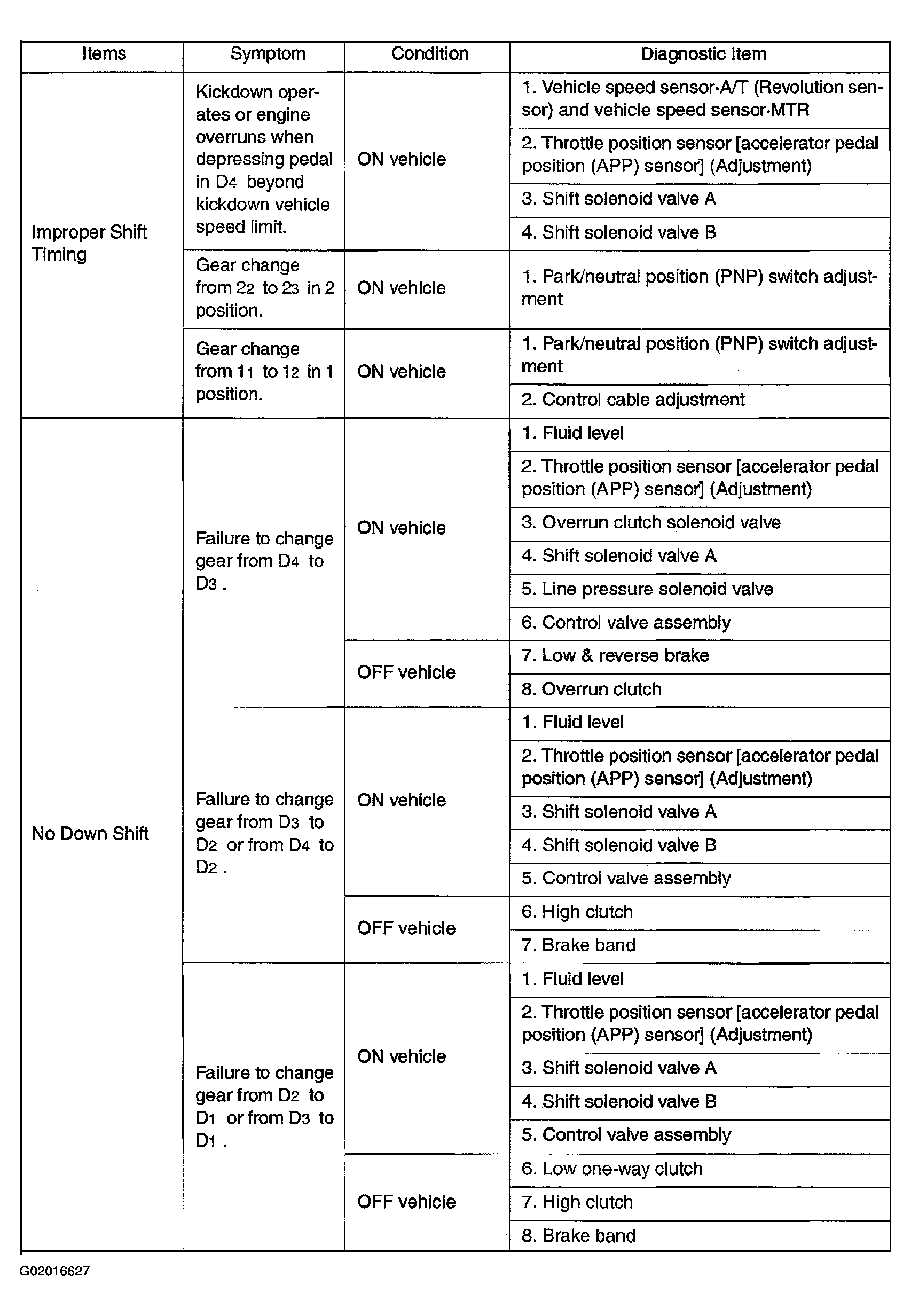

Fig 3: Symptom Chart (3 Of 11)

G02016627

Courtesy of NISSAN MOTOR CO., U.S.A.

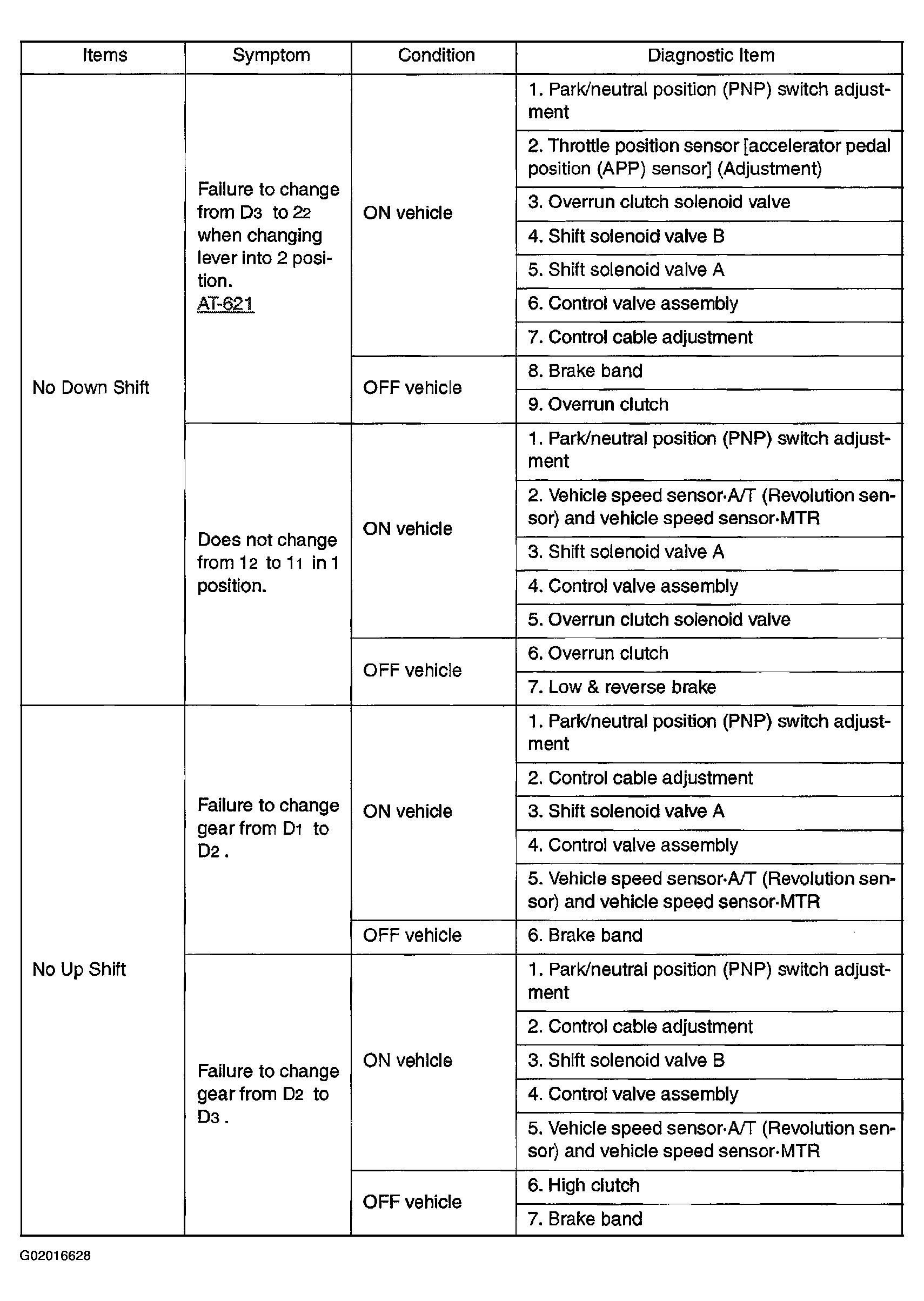

Fig 4: Symptom Chart (4 Of 11)

G02016628

Courtesy of NISSAN MOTOR CO., U.S.A.

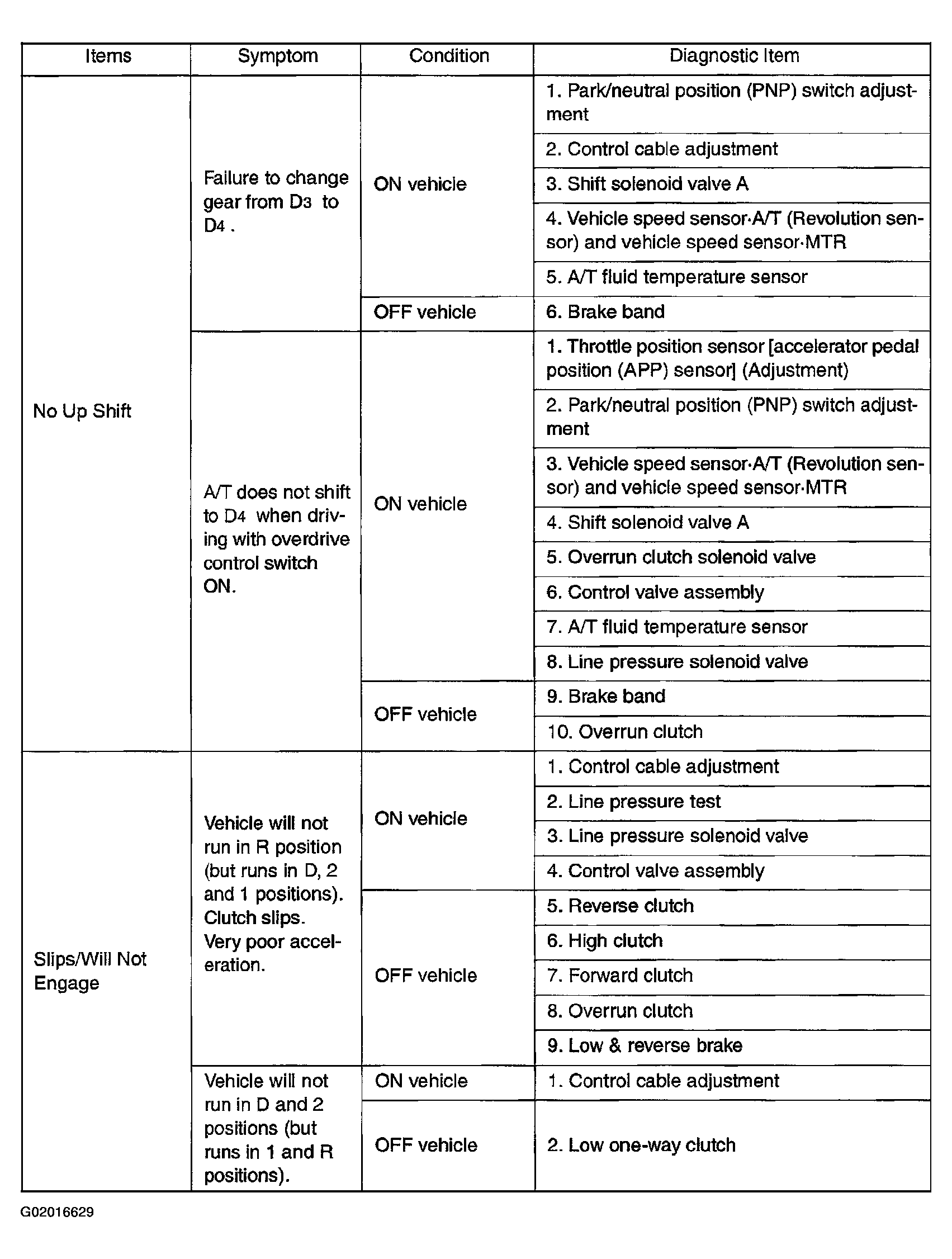

Fig 5: Symptom Chart (5 Of 11)

G02016629

Courtesy of NISSAN MOTOR CO., U.S.A.

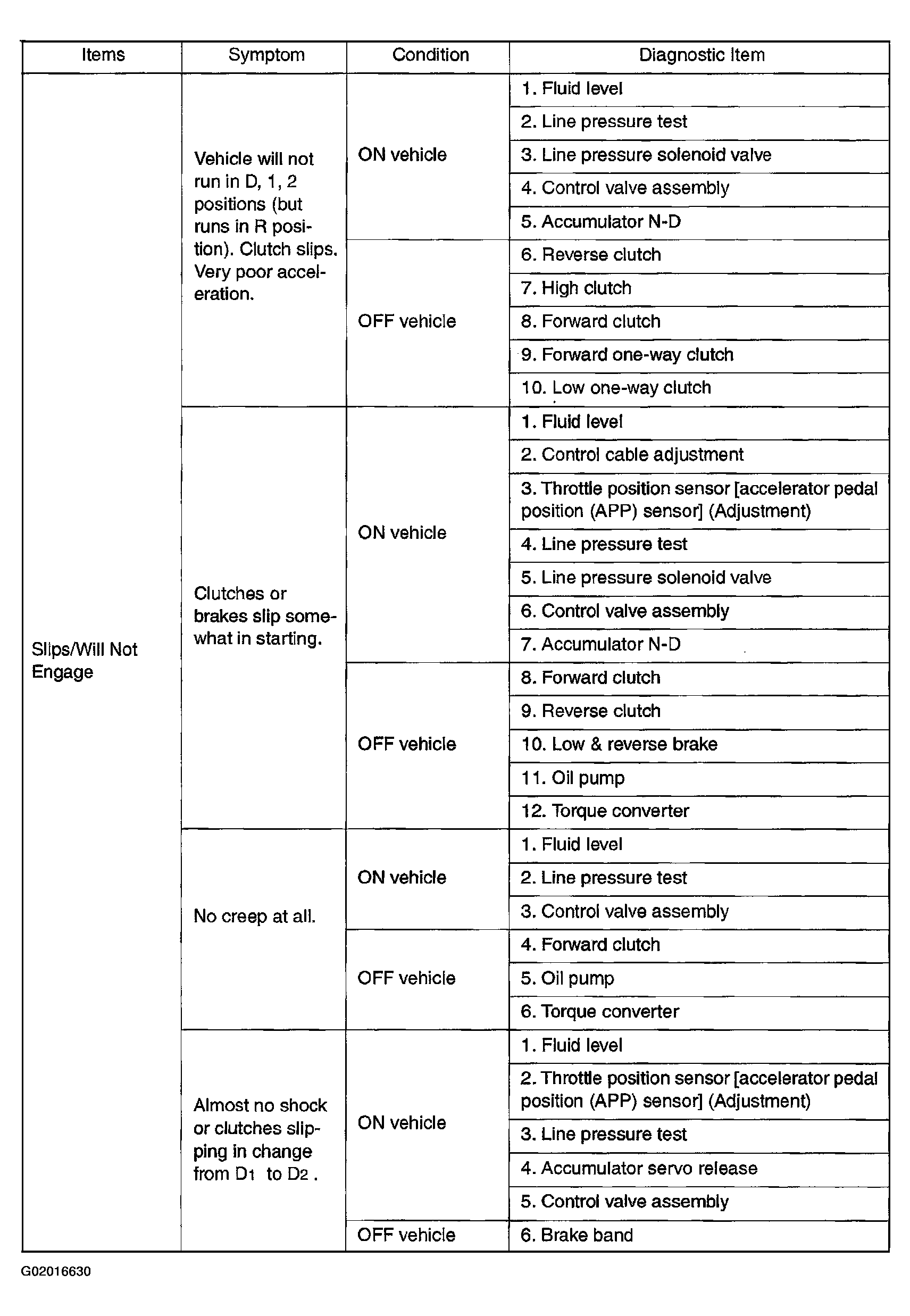

Fig 6: Symptom Chart (6 Of 11)

G02016630

Courtesy of NISSAN MOTOR CO., U.S.A.

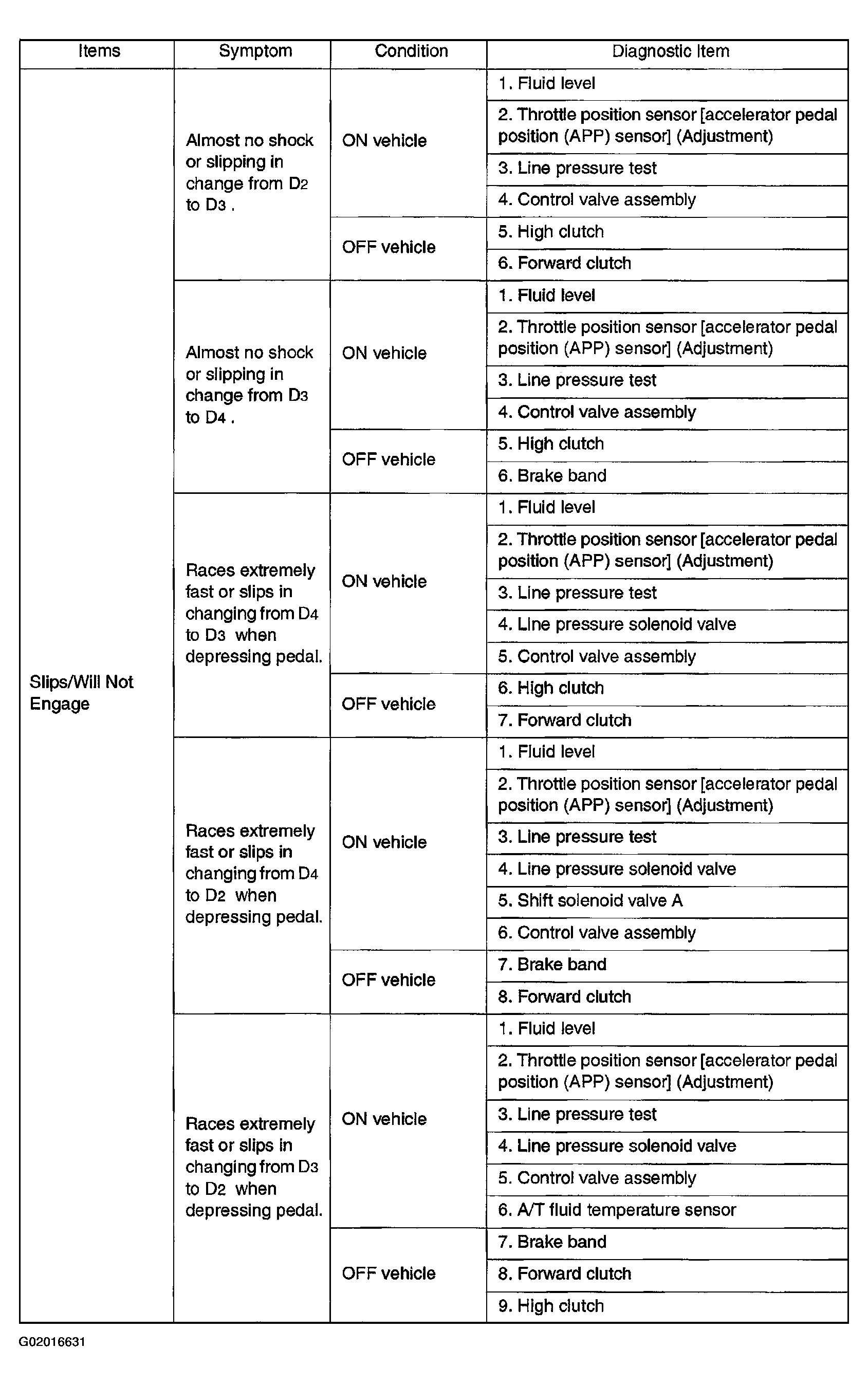

Fig 7: Symptom Chart (7 Of 11)

G02016631

Courtesy of NISSAN MOTOR CO., U.S.A.

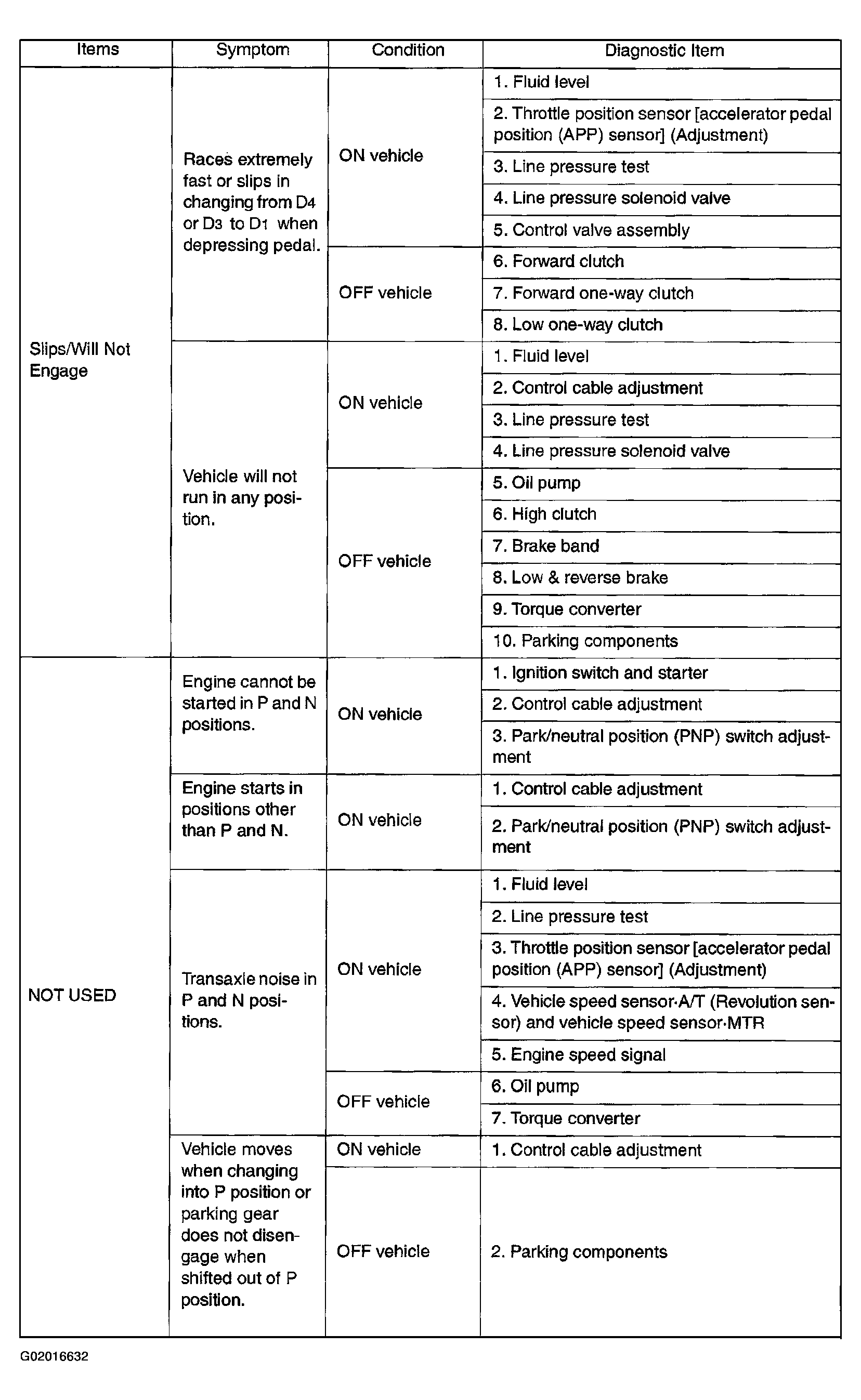

Fig 8: Symptom Chart (8 Of 11)

G02016632

Courtesy of NISSAN MOTOR CO., U.S.A.

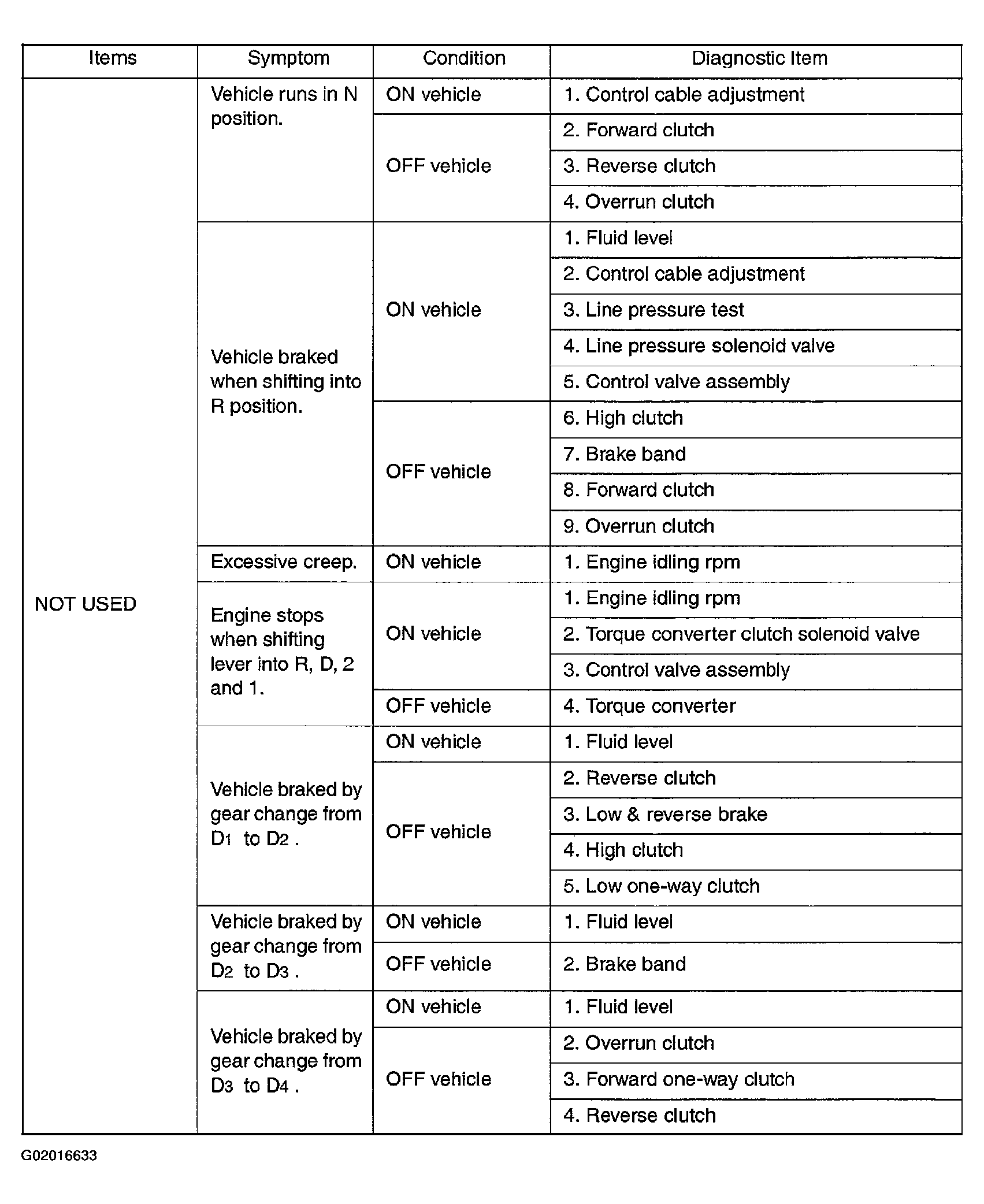

Fig 9: Symptom Chart (9 Of 11)

G02016633

Courtesy of NISSAN MOTOR CO., U.S.A.

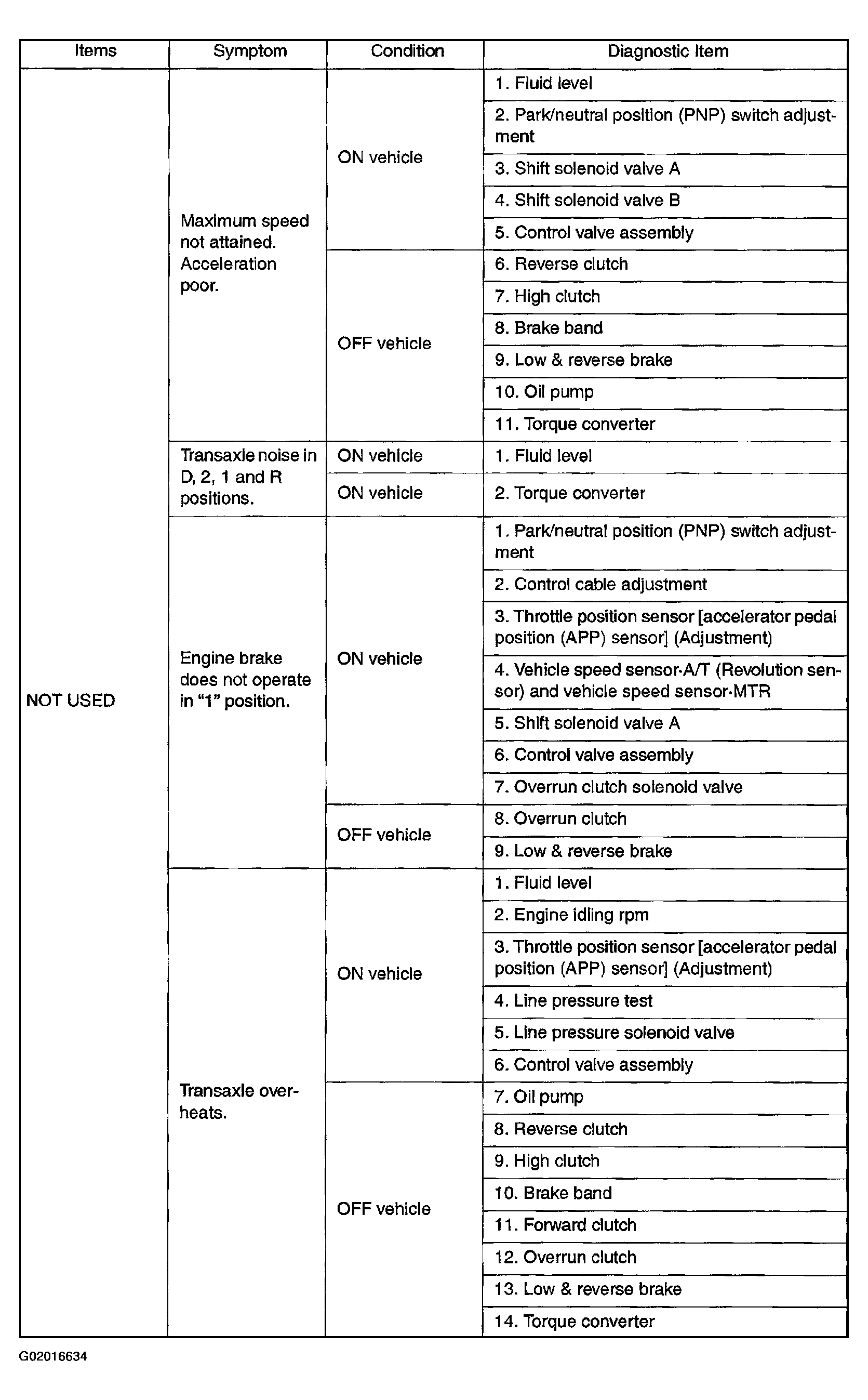

Fig 10: Symptom Chart (10 Of 11)

G02016634

Courtesy of NISSAN MOTOR CO., U.S.A.

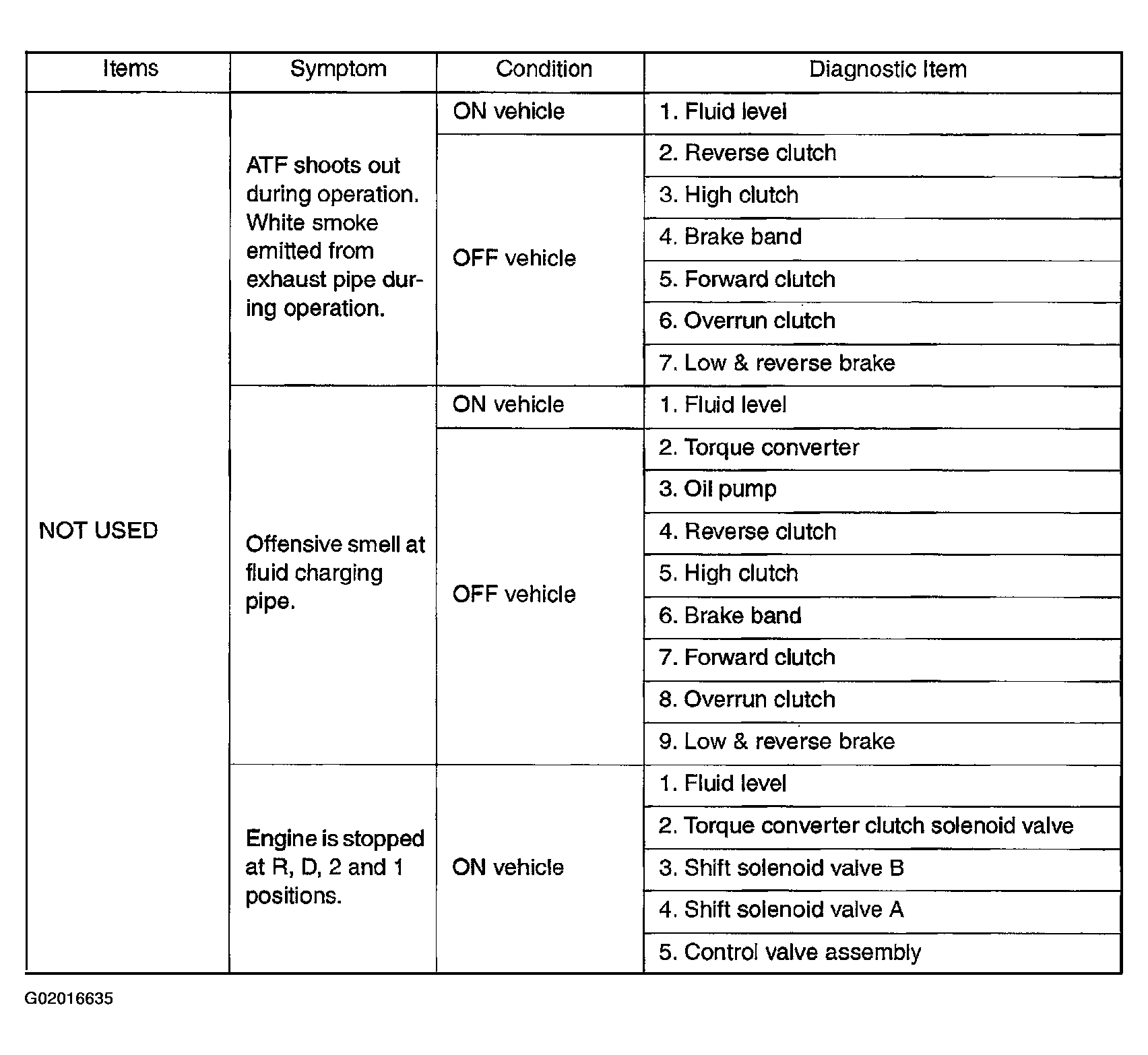

Fig 11: Symptom Chart (11 Of 11)

G02016635

Courtesy of NISSAN MOTOR CO., U.S.A.
