Cruise Test - Part 2

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK STARTING GEAR (D1) POSITION
1. Confirm overdrive control switch is in ON position.
2. Confirm selector lever is in D position.
3. Accelerate vehicle by half throttle again.
4. Does vehicle start from D1 ?
  Read gear position.
Yes or No
1. Yes: GO TO 2.
2. No: Go to 16. Vehicle Does Not Start From D1 . Continue ROAD TEST.
CHECK SHIFT UP AND SHIFT DOWN (D4 TO D2)
1. Accelerate vehicle to 80 km/h (50 MPH) as shown.

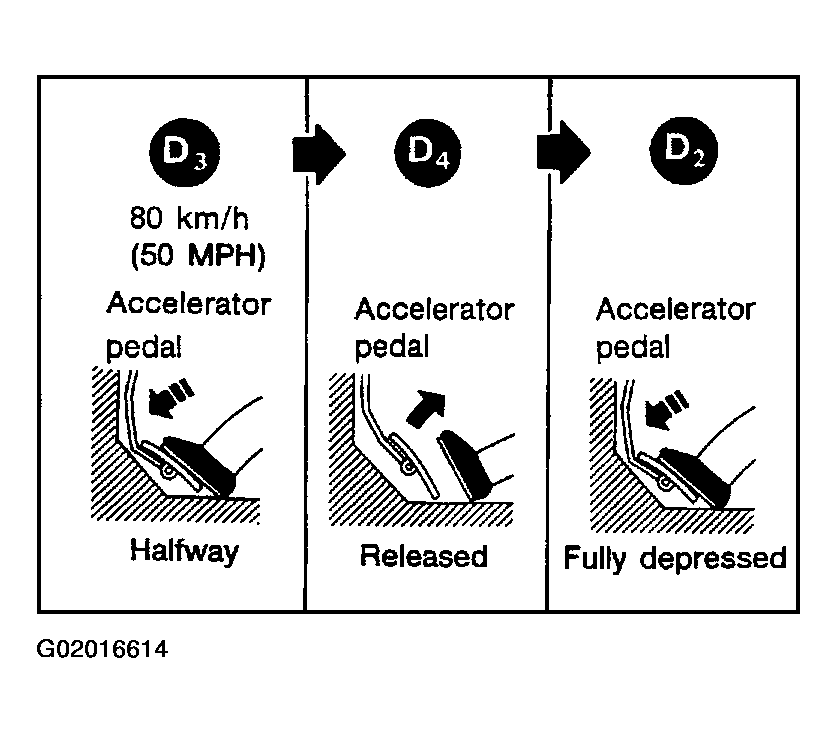

  Fig 1: Checking Shift Up And Shift Down (D3 To D4 To D2) By Accelerator Pedal Operation
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Release accelerator pedal and then quickly depress it fully.
3. Does A/T shift from D4 to D2 as soon as accelerator pedal is depressed fully?
  Read gear position and throttle opening.
Yes or No
1. Yes: GO TO 3.
2. No: Go to 9. A/T Does Not Shift: D1 --> D2 or Does Not Kickdown: D4 --> D2 . Continue ROAD TEST.
CHECK SHIFT UP (D2 TO D3)
Does A/T shift from D2 to D3 at the specified speed?

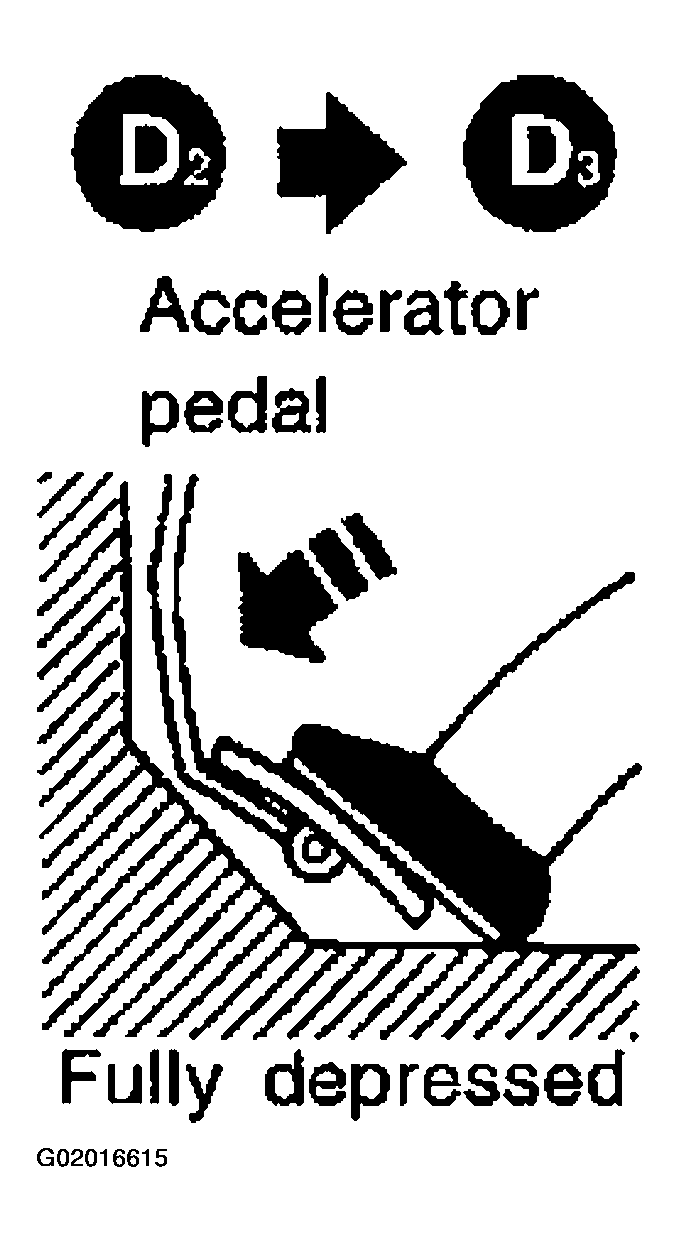

Fig 2: Checking Shift Up (D2 To D3) By Depressing Accelerator Pedal
Courtesy of NISSAN MOTOR CO., U.S.A.

Read gear position, throttle opening and vehicle speed.
1. Specified speed when shifting from D2 to D3: Refer to SHIFT SCHEDULE .
Yes or No
1. Yes: GO TO 4.
2. No: Go to 10. A/T Does Not Shift: D2 --> D3 . Continue ROAD TEST.
CHECK SHIFT UP (D3 TO D4) AND ENGINE BRAKE
Release accelerator pedal after shifting from D2 to D3.

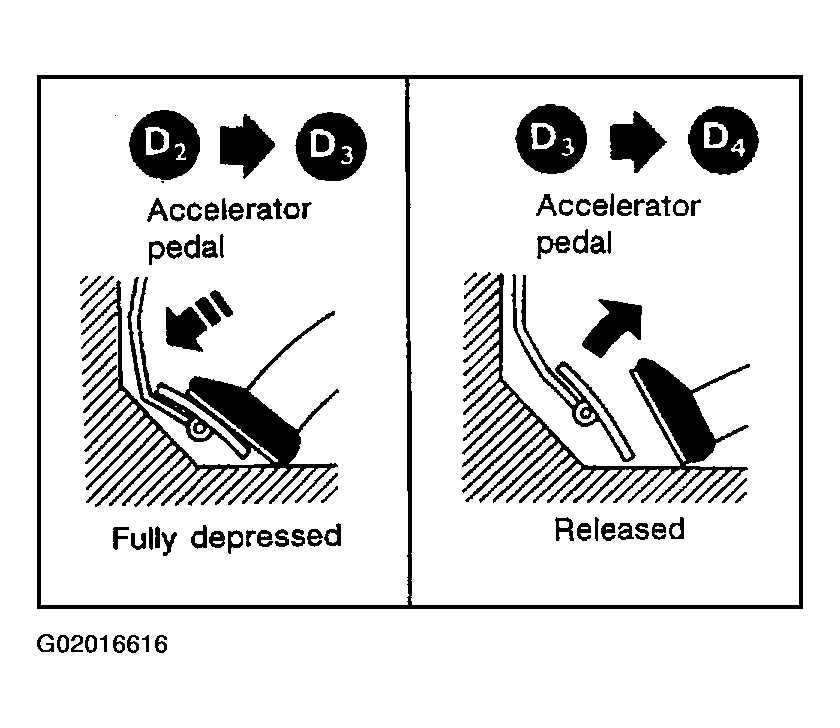

Fig 3: Checking Shift Up (D3 To D4) And Engine Brake By Depressing And Releasing Accelerator Pedal
Courtesy of NISSAN MOTOR CO., U.S.A.

Does A/T shift from D3 to D4 and does vehicle decelerate by engine brake?

Read gear position, throttle opening and vehicle speed.

Yes or No
1. Yes:
  1. Stop vehicle.
  2. Go to CRUISE TEST-PART 3 .
2. No: Go to 11. A/T DOES NOT SHIFT: D3 --> D4 . Continue ROAD TEST.
