Line Pressure Test Ports

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

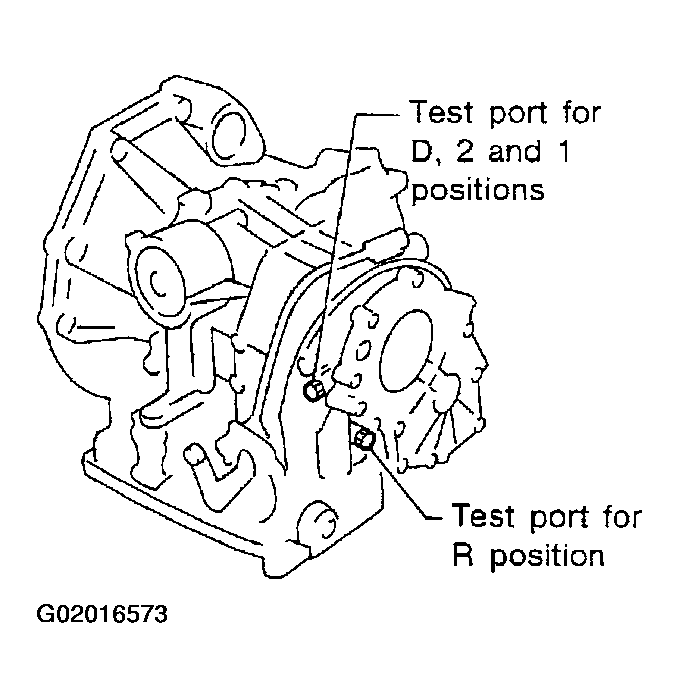

Fig 1: Locating Line Pressure Test Port
G02016573Courtesy of NISSAN MOTOR CO., U.S.A.

Location of line pressure test ports are shown in the illustration.
