Thrust Washers For Adjusting Reverse Clutch Drum End Play

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

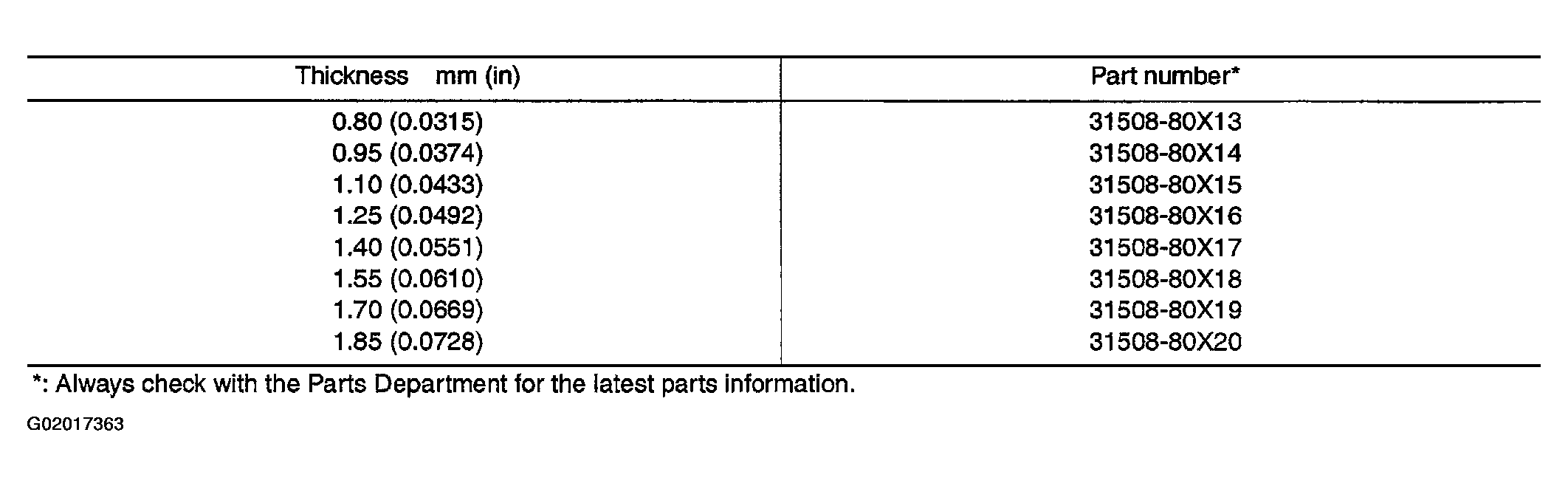

Fig 1: Thrust Washers Adjusting Reverse Clutch Drum End Play Specifications
G02017363Courtesy of NISSAN MOTOR CO., U.S.A.
