Vehicle Speed When Performing And Releasing Lock-Up

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

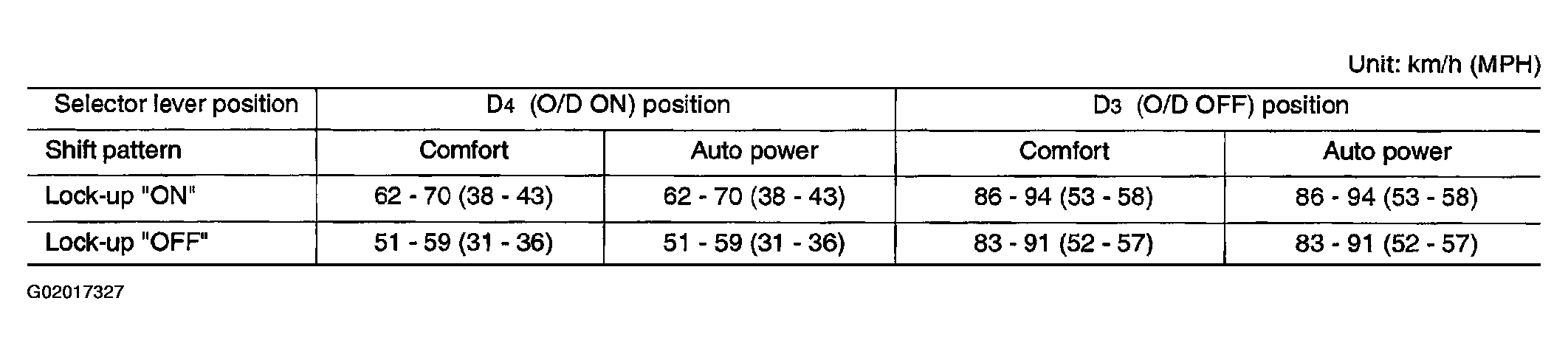

Fig 1: Lock-Up Vehicle Speed Specifications
G02017327Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Lock-up vehicle speed indicates the speed in D4 (O/D ON) position.
  • Perform lock-up inspection after warming up engine.
  • Lock-up vehicle speed may vary depending on the driving conditions and circumstances.
