Manual Shaft: Removal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove detent spring from transmission case.

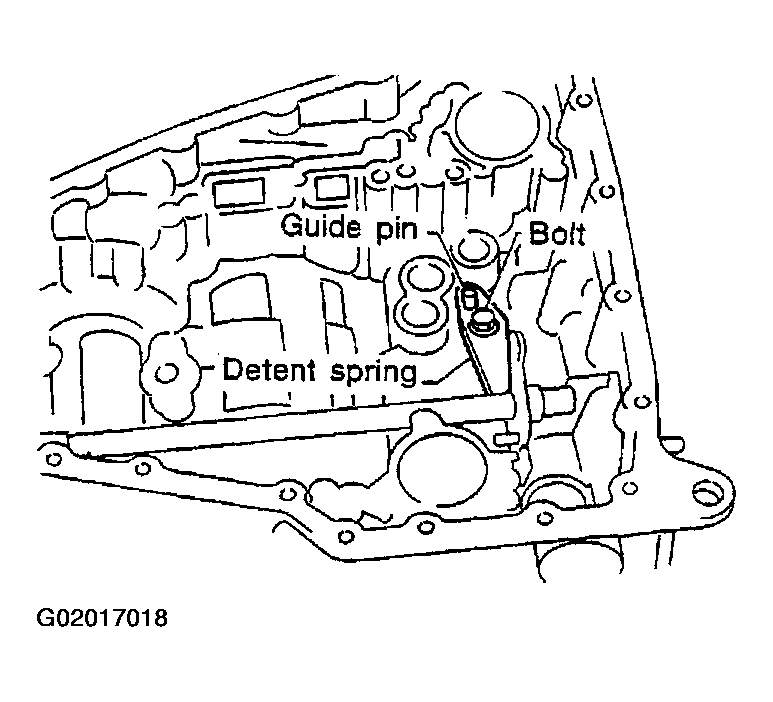

    Fig 1: Removing Detent Spring From Transmission Case
    G02017018Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Drive out manual plate retaining pin.

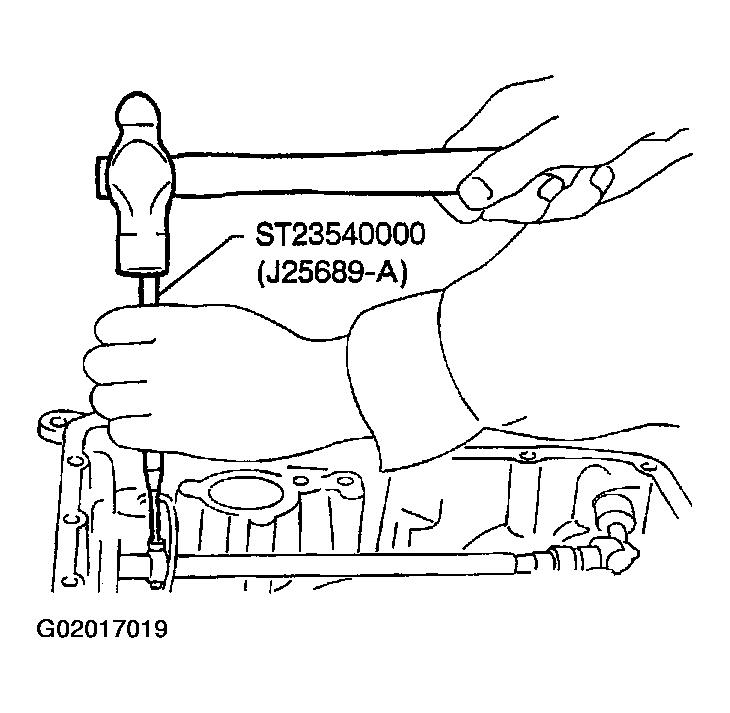

    Fig 2: Removing Manual Plate Retaining Pin
    G02017019Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive and pull out parking rod plate retaining pin.
  4. Remove parking rod plate from manual shaft.
  5. Draw out parking rod from transmission case.

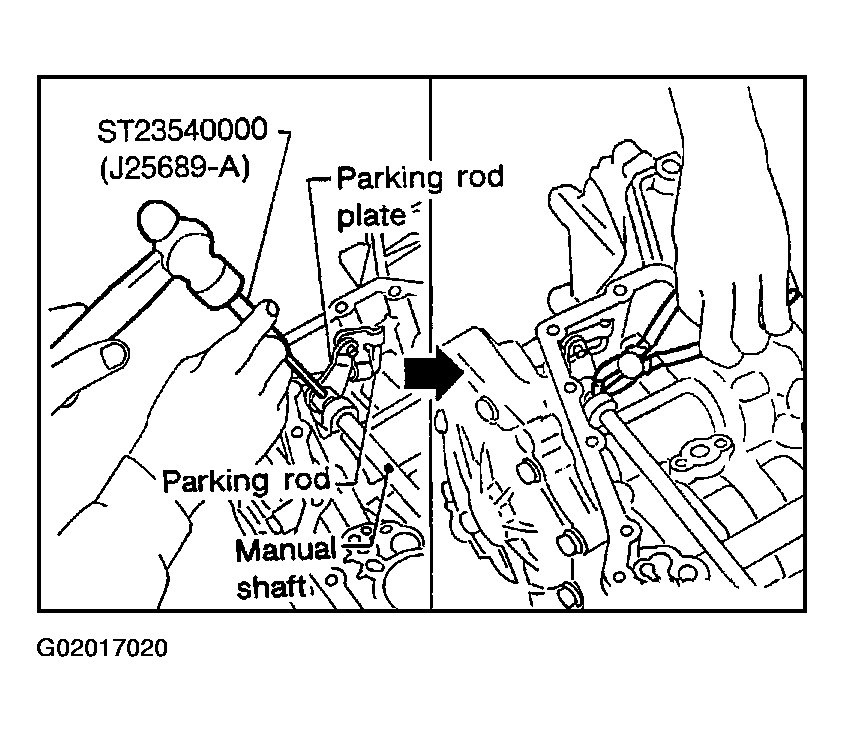

    Fig 3: Removing Parking Plate And Parking Rod
    G02017020Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Pull out manual shaft retaining pin.
  7. Remove manual shaft and manual plate from transmission case.

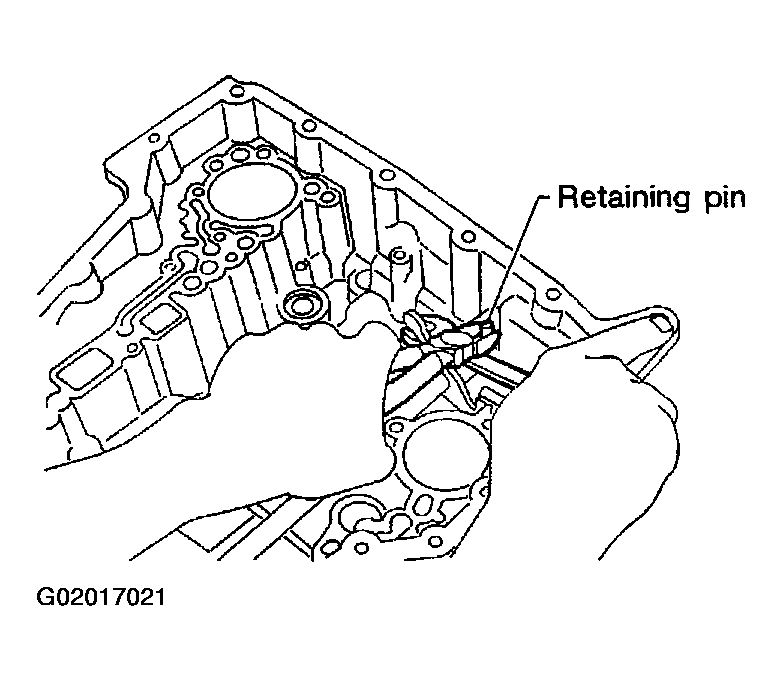

    Fig 4: Removing Manual Shaft Retaining Pin
    G02017021Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove manual shaft oil seal.

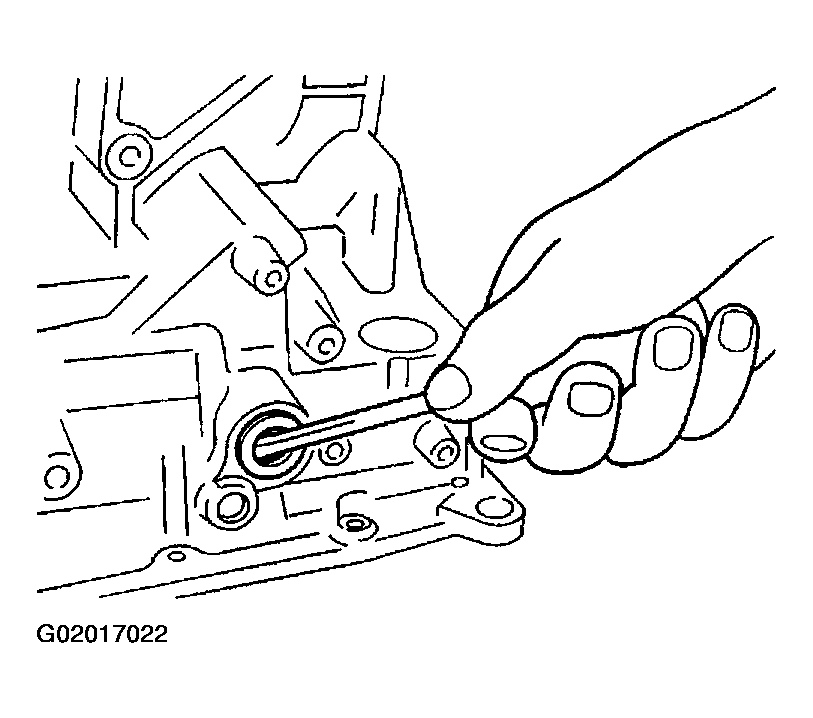

    Fig 5: Removing Manual Shaft Oil Seal
    G02017022Courtesy of NISSAN MOTOR CO., U.S.A.
