Retainer Plate (Upper Body)

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

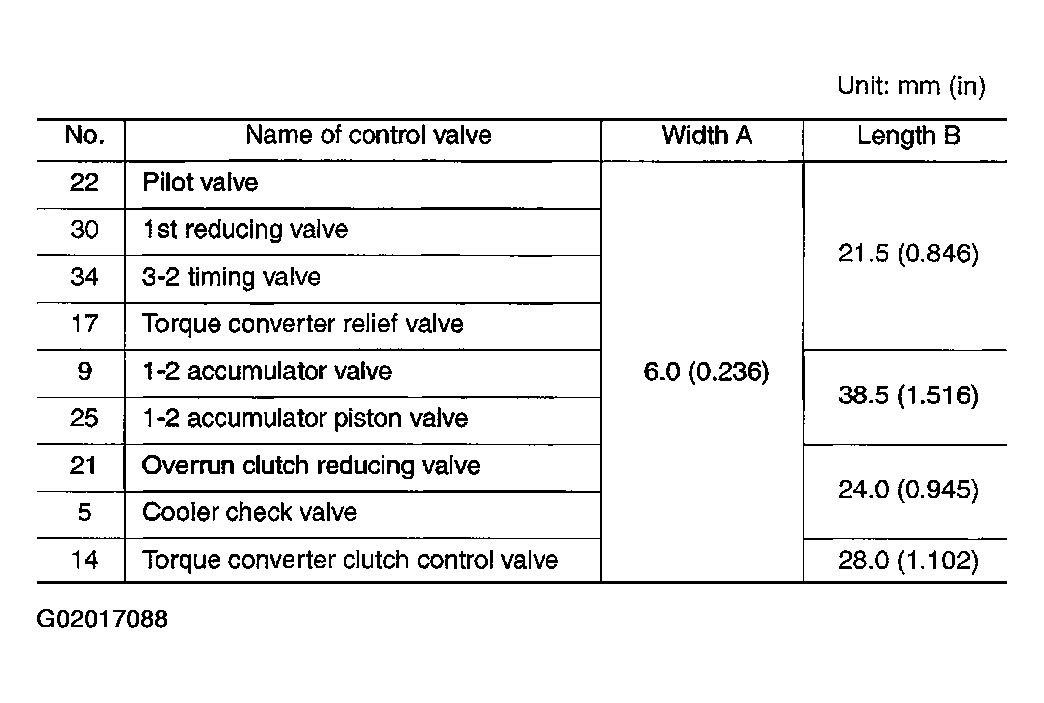

Fig 1: Upper Body Retainer Plate Control Valve Specifications
G02017088Courtesy of NISSAN MOTOR CO., U.S.A.

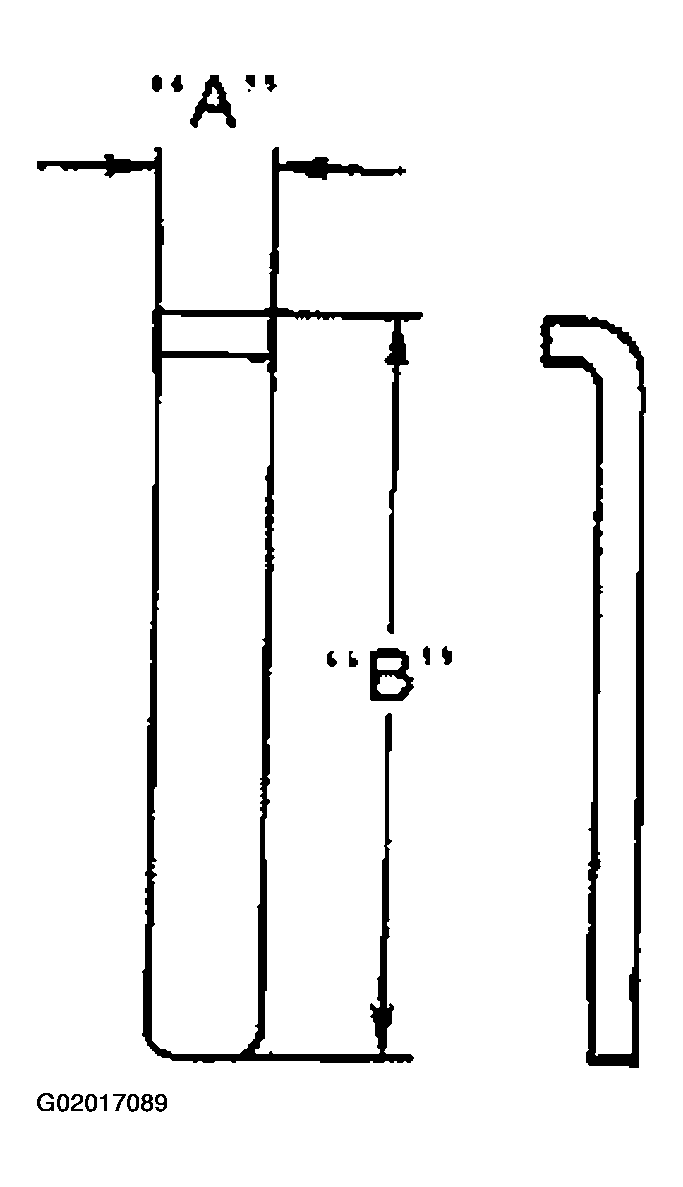

Fig 2: Identifying Upper Body Retainer Plate Width And Length
G02017089Courtesy of NISSAN MOTOR CO., U.S.A.
