Retainer Plate (Lower Body)

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

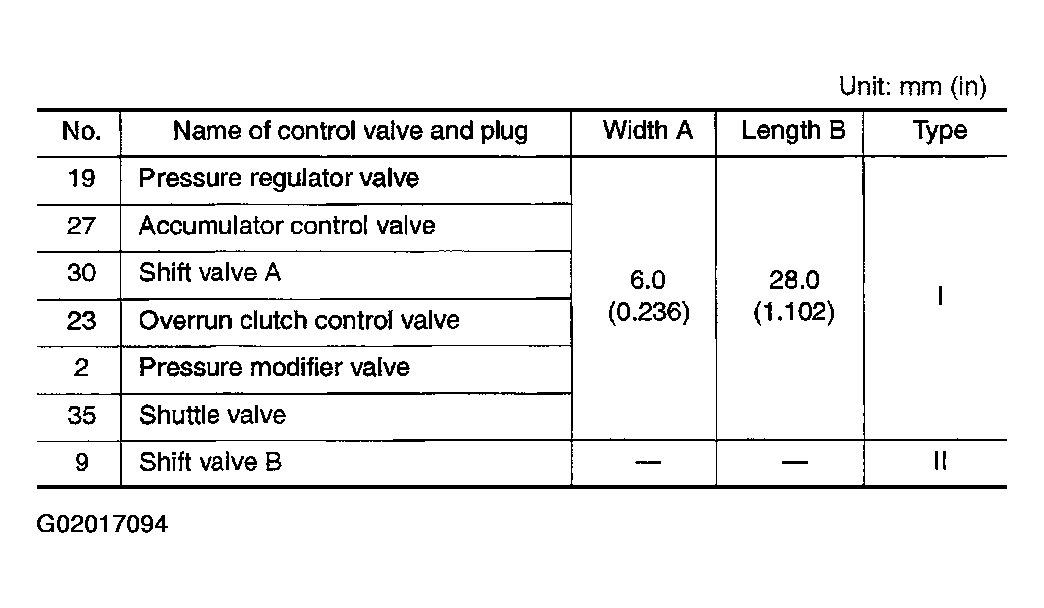

Fig 1: Lower Body Retainer Plate Control Valve Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Install proper retainer plates. Refer to Control Valve Lower Body .

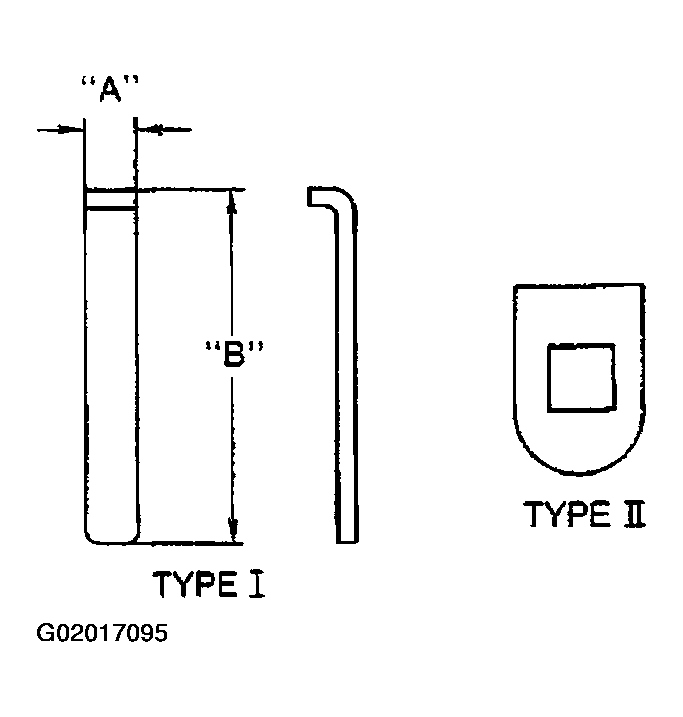

Fig 2: Identifying Lower Body Retainer Plate Control Valve Width And Length
Courtesy of NISSAN MOTOR CO., U.S.A.
