D2, 3(2), 2(2) and 1(2) Positions

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

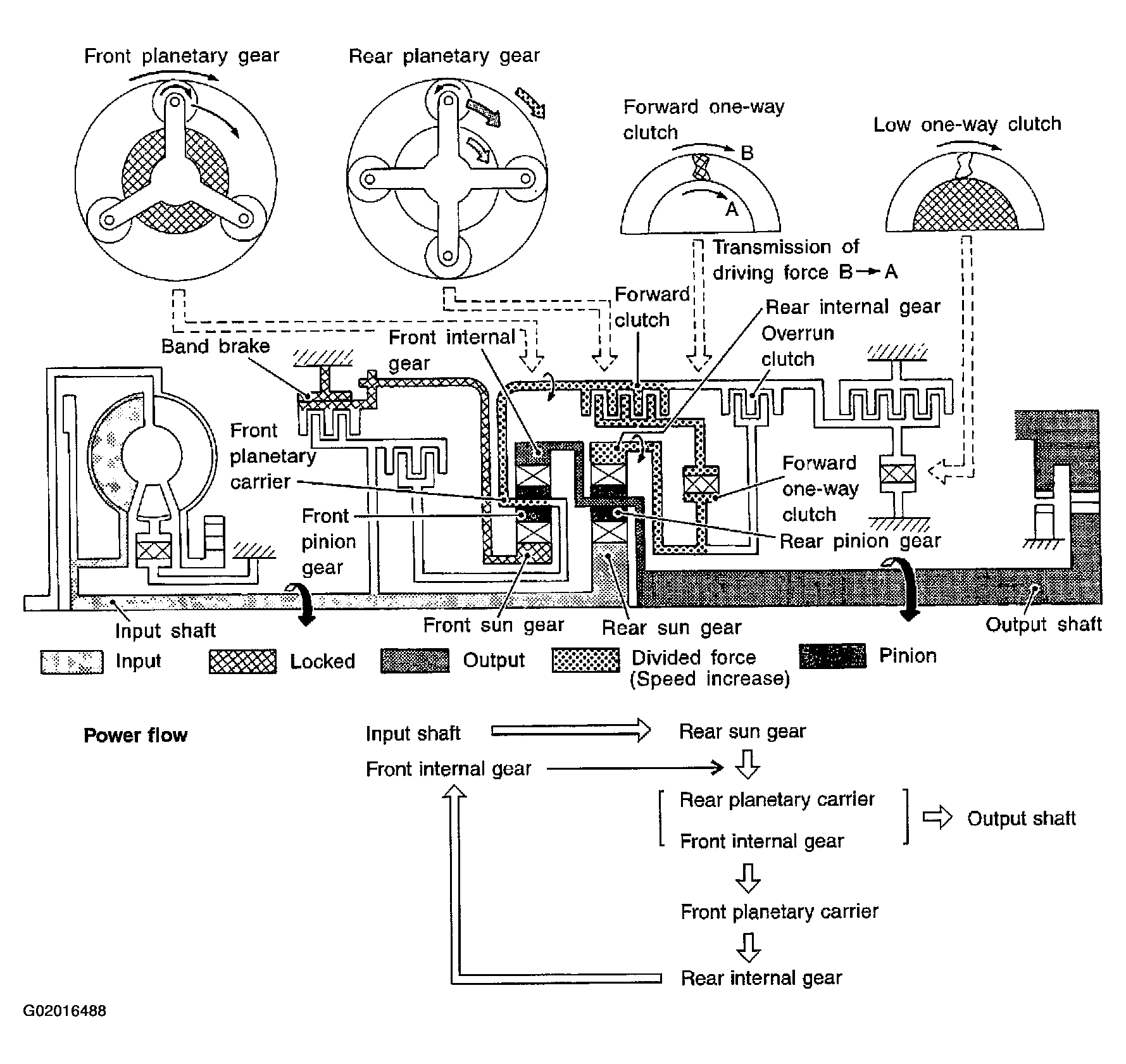

Fig 1: Automatic Transaxle System Power Transmission Diagram (D2, 3(2), 2(2) And 1(2) Positions)

Courtesy of NISSAN MOTOR CO., U.S.A.

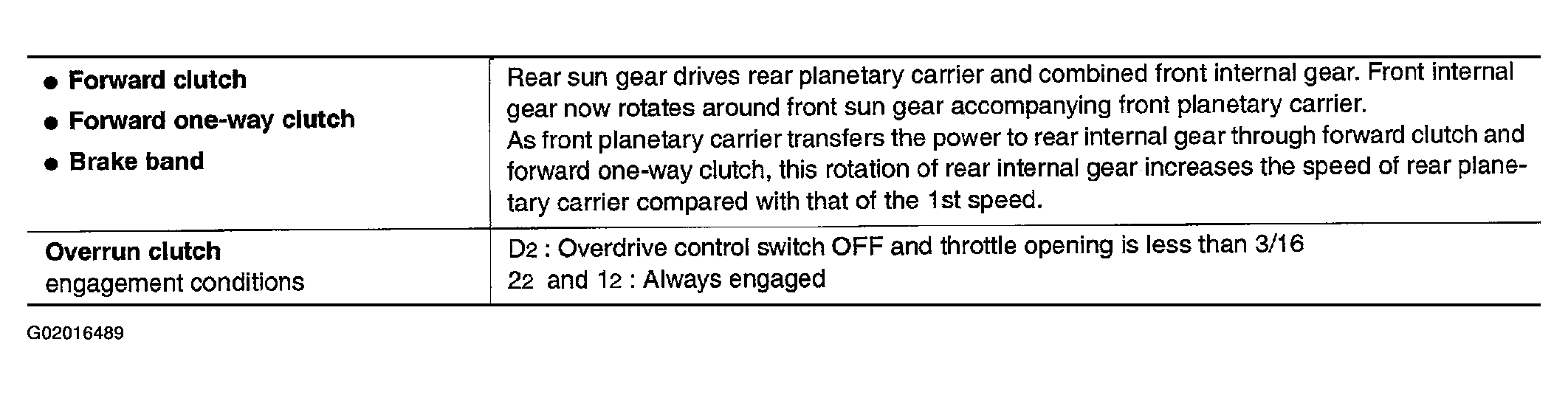

Fig 2: Components Operation Description Chart (D2, 3(2), 2(2) And 1(2) Positions)

Courtesy of NISSAN MOTOR CO., U.S.A.
