WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

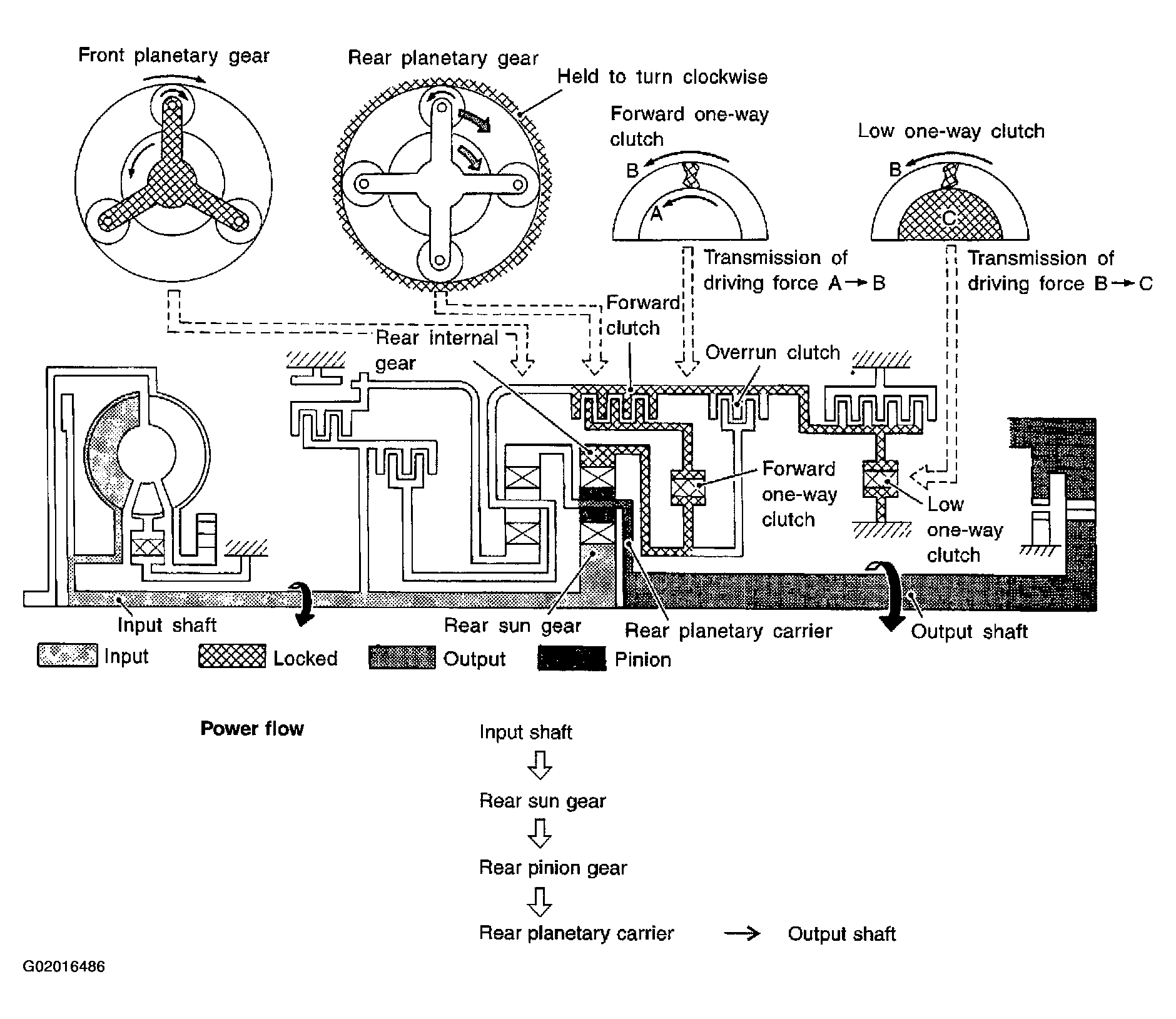

Fig 1: Automatic Transmission System Power Transmission Diagram (D1 And 2(1) Positions)
Courtesy of NISSAN MOTOR CO., U.S.A.

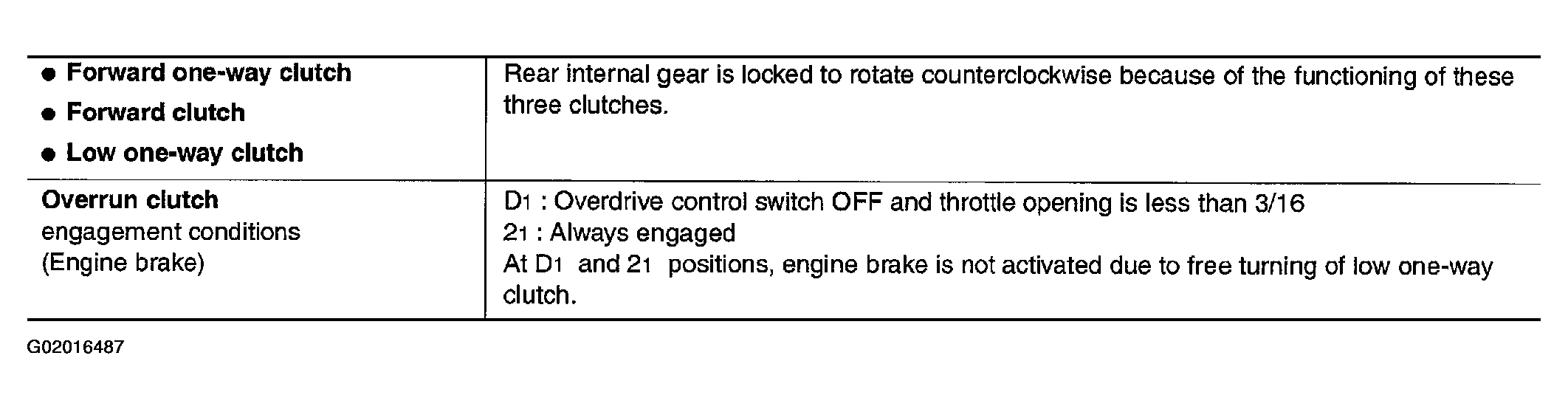

Fig 2: Components Operation Description Chart (D1 And 2(1) Positions)
