Clutch And Band Chart

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For identification of components called out in heading, see Figure.

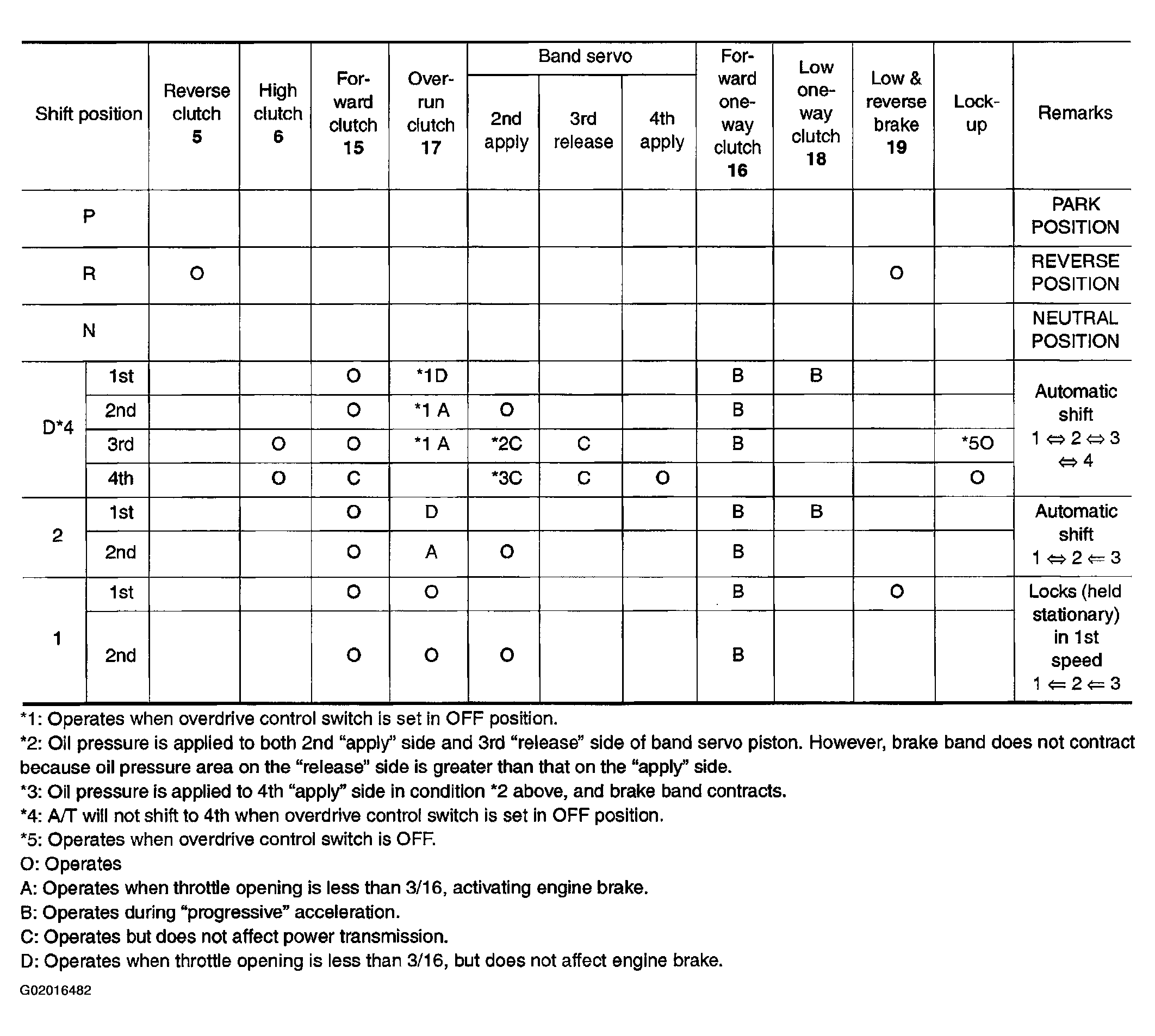

Fig 1: Clutch And Band Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
