Differential Side Oil Seal Replacement

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Remove drive shaft assembly. Refer to REMOVAL, OVERHAUL & INSTALLATION .
Remove oil seal.

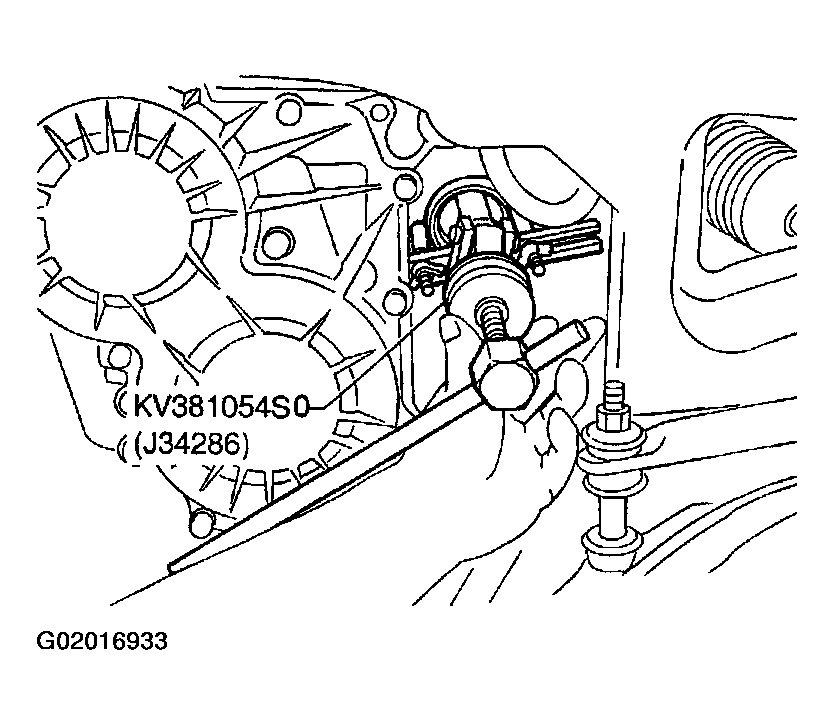

Fig 1: Removing Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil seal.
- Apply ATF before installing.

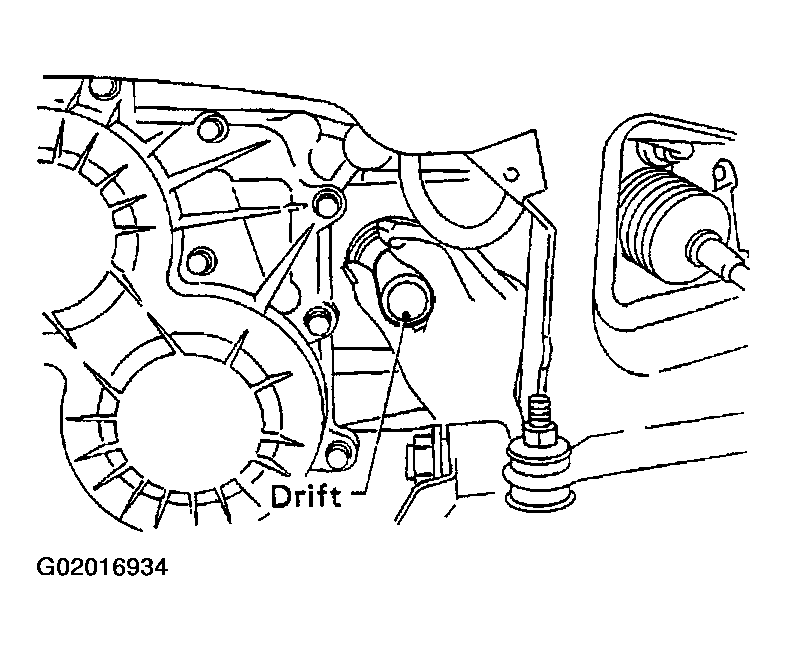

  Fig 2: Installing Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install oil seals so dimension A is within specification
  A: -0.5 mm (-0.02 in) to 0.5 mm (0.02 in)
Reinstall any part removed.

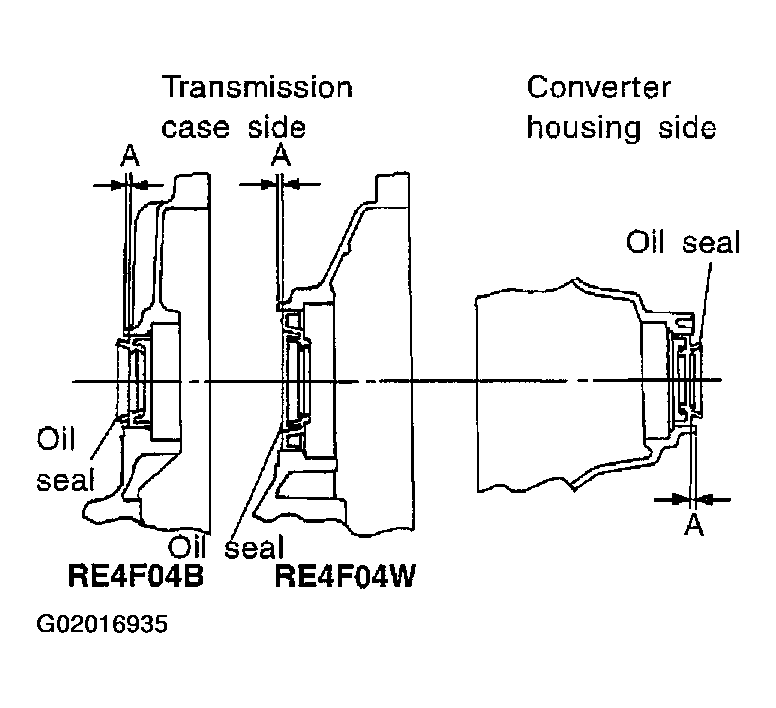

Fig 3: Identifying Oil Seal Dimensions At Transmission Case And Converter Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
