Self-Diagnostic Result Test Mode

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

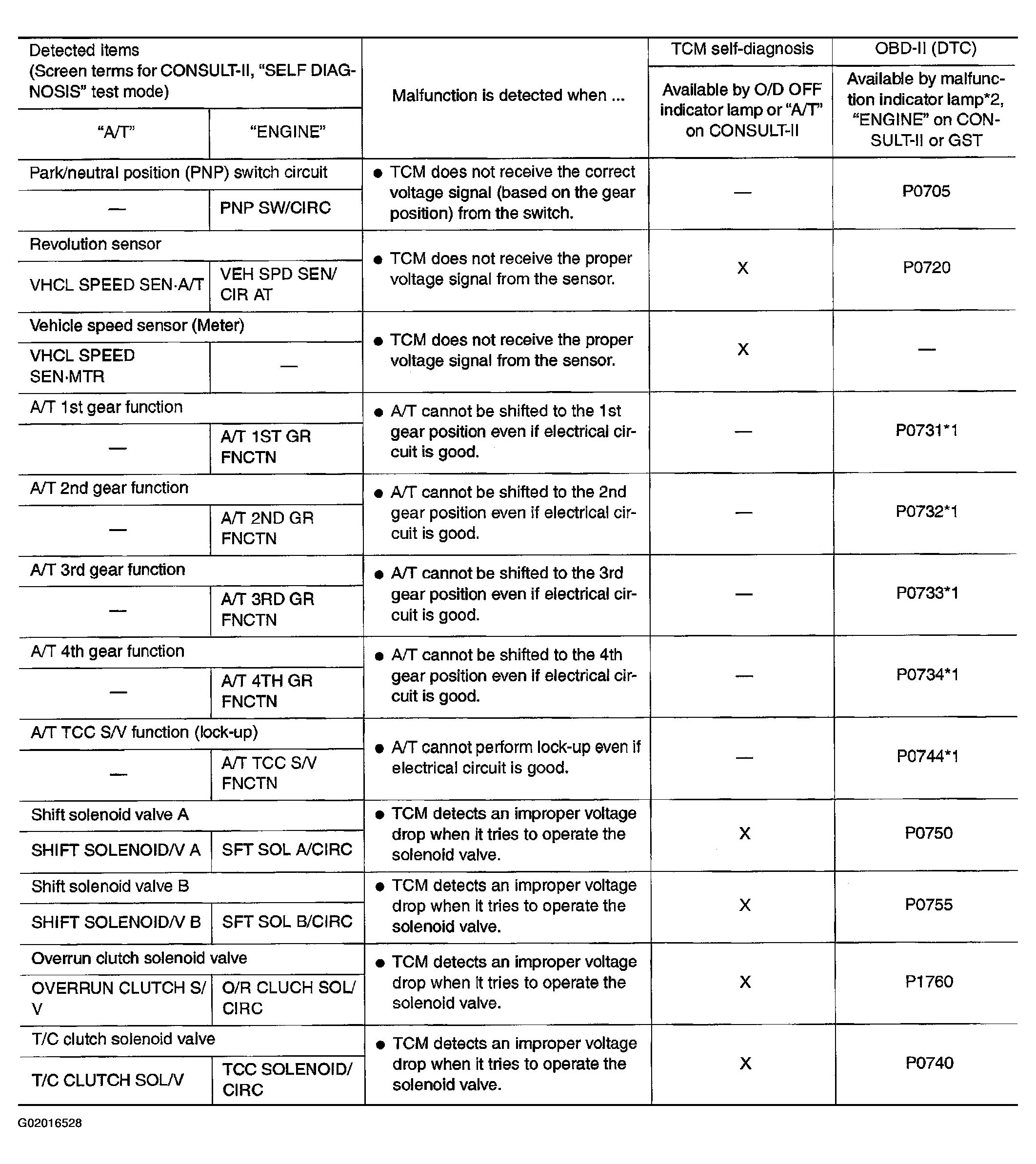

Fig 1: Self-Diagnostic Result Test Mode Chart (1 Of 2)
G02016528Courtesy of NISSAN MOTOR CO., U.S.A.

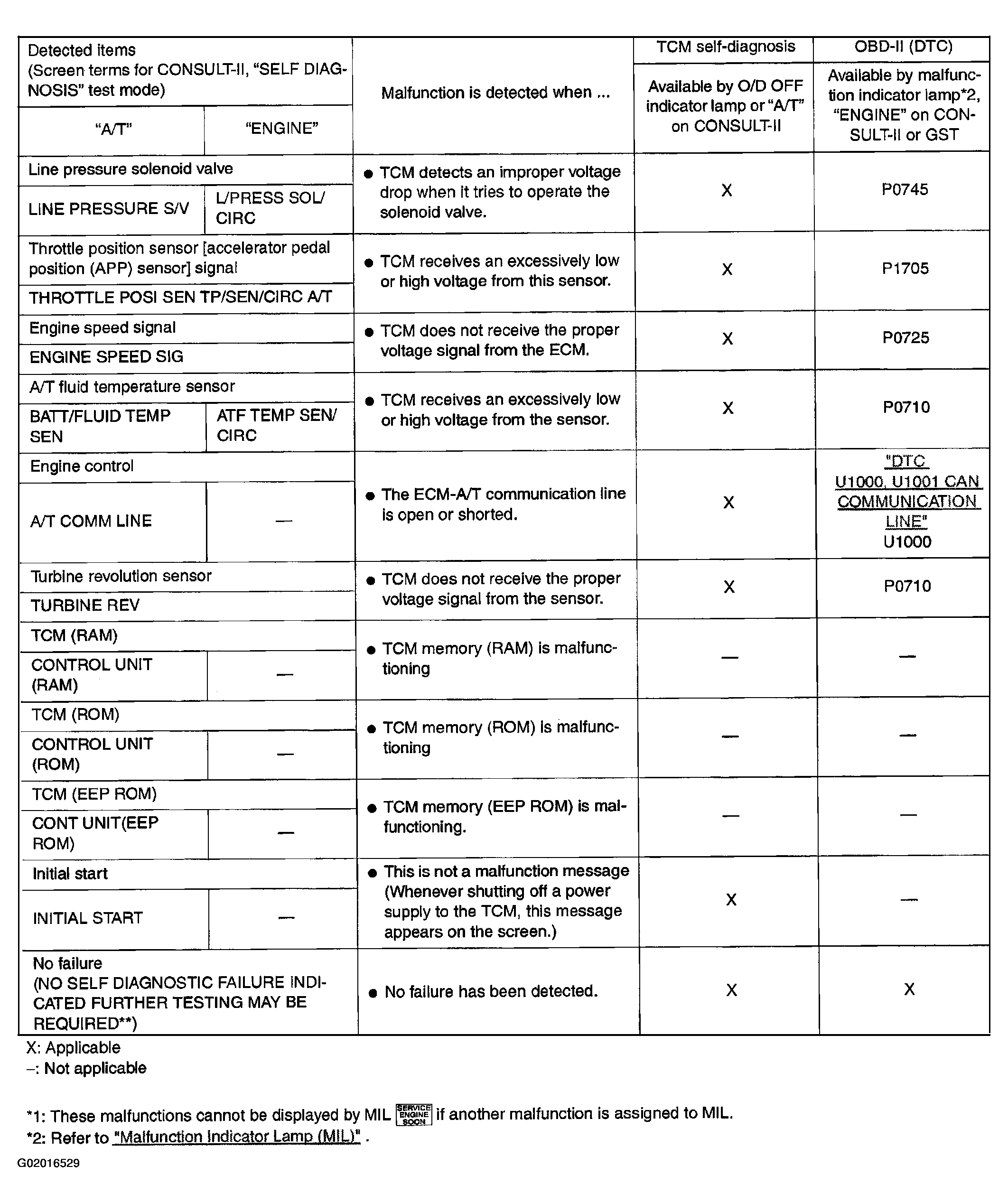

Fig 2: Self-Diagnostic Result Test Mode Chart (2 Of 2)
G02016529Courtesy of NISSAN MOTOR CO., U.S.A.
