Self-Diagnostic Procedure (With Consult-II)

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Turn on CONSULT-II and touch ENGINE for OBD-II detected items or touch A/T for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground circuit. Refer to TROUBLE DIAGNOSIS FOR POWER SUPPLY . If result is NG, refer to POWER DISTRIBUTION .

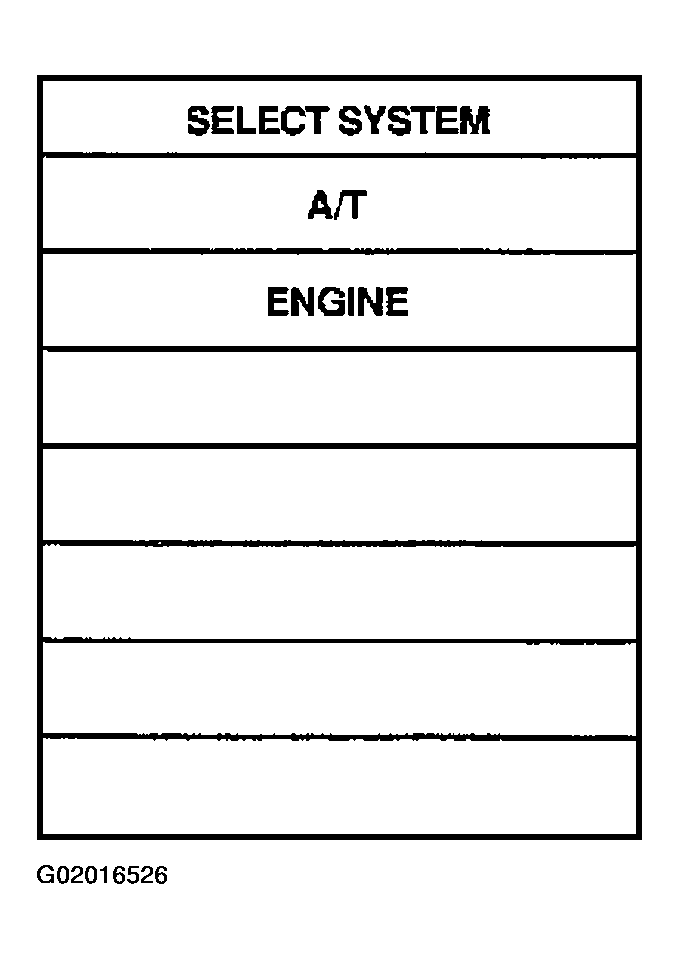

Fig 1: CONSULT-II Display - Touch "ENGINE"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch SELF DIAGNOSIS.
Display shows malfunction experienced since the last erasing operation.

CONSULT-II performs Real Time Diagnosis.

Also, any malfunction detected while in this mode will be displayed at real time.

Fig 2: CONSULT-II Display - Touch "SELF DIAG RESULTS"
Courtesy of NISSAN MOTOR CO., U.S.A.
