Wiring Diagram - AT - VSSMTR

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagrams referring to PG-POWER, see POWER DISTRIBUTION . For complete wiring diagrams, see SYSTEM WIRING DIAGRAMS .

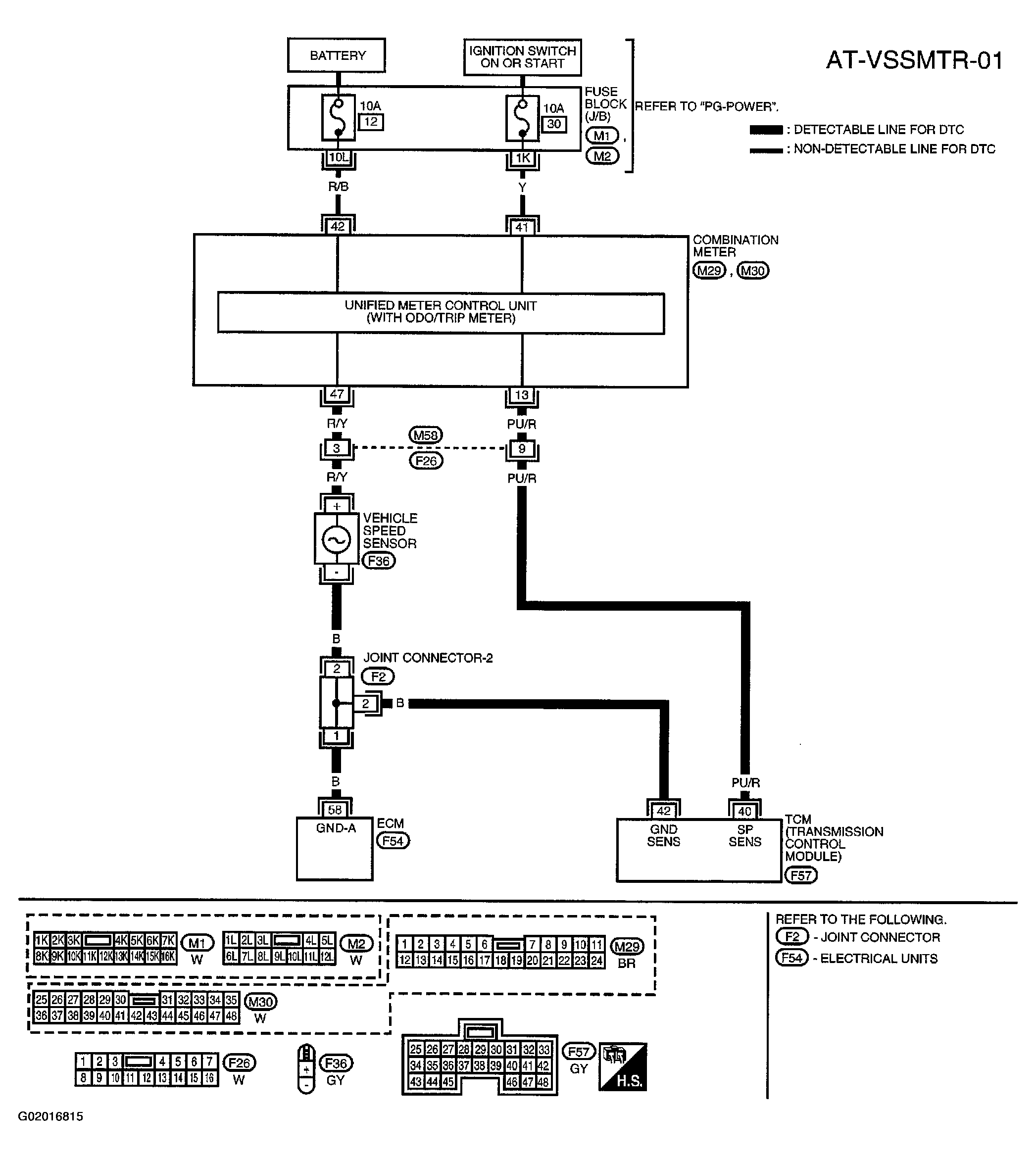

Fig 1: Vehicle Speed Sensor Meter Circuit And Identifying Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

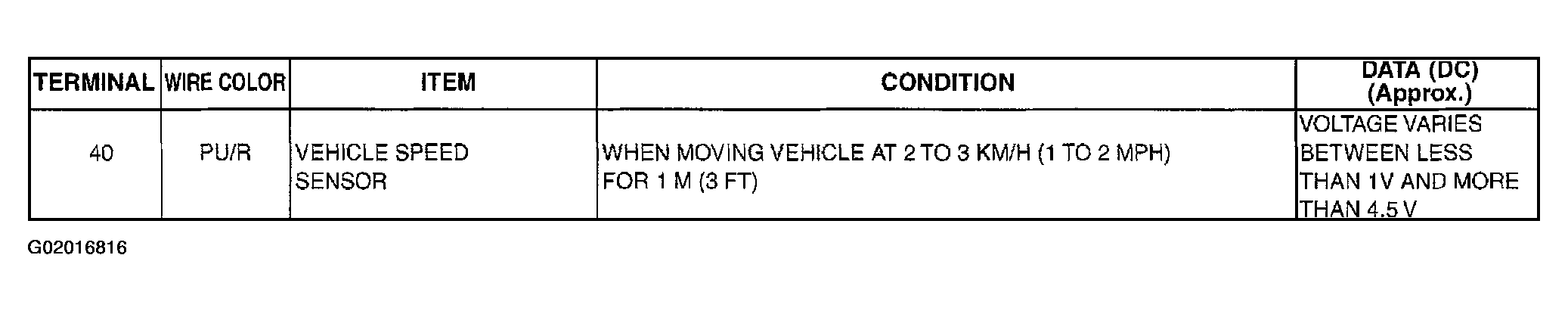

Fig 2: Transmission Control Module Terminal Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
