Turbine Revolution Sensor

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between terminals 1, 2 and 3.

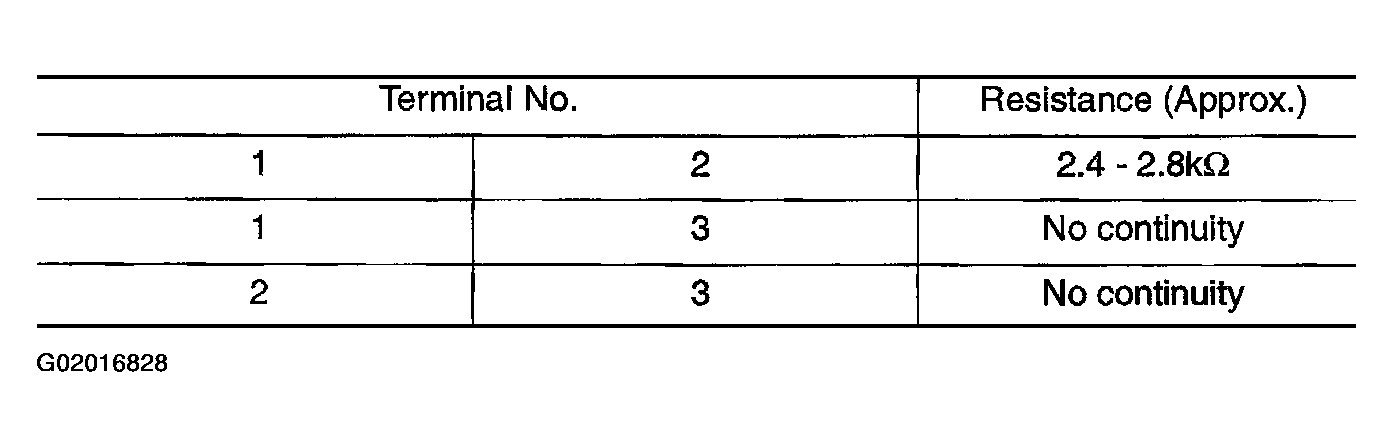

Fig 1: Turbine Revolution Sensor Terminal Resistance Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

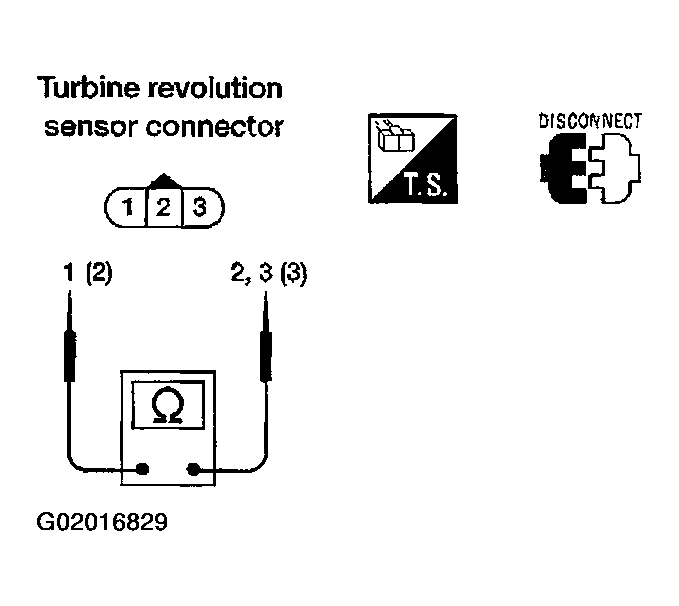

Fig 2: Checking Resistance Between Turbine Revolution Sensor Terminals 1, 2 And 3

Courtesy of NISSAN MOTOR CO., U.S.A.
