With Consult-II

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select DATA MONITOR mode for ENGINE with CONSULT-II.

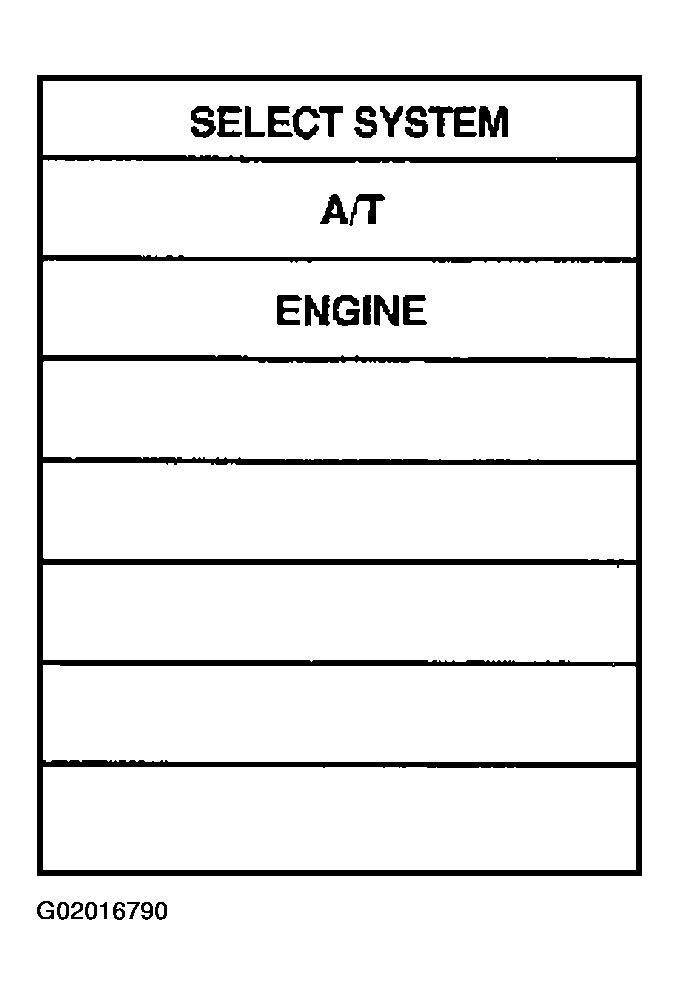

    Fig 1: DTC Confirmation Procedure With CONSULT -II (1 Of 2)
    G02016790Courtesy of NISSAN MOTOR CO., U.S.A.

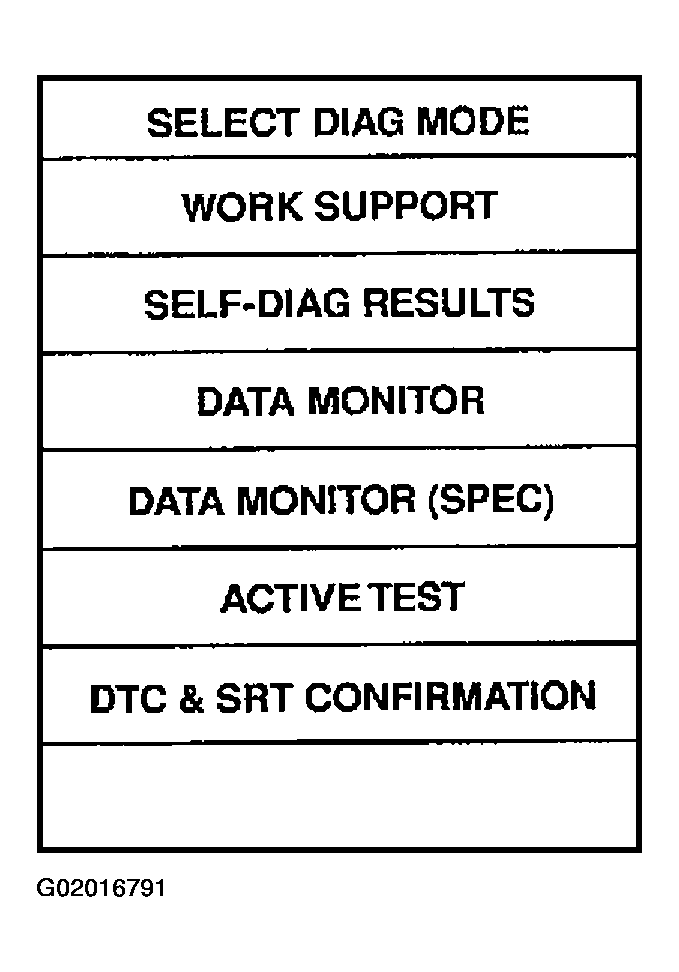

    Fig 2: DTC Confirmation Procedure With CONSULT -II (2 Of 2)
    G02016791Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine.
  3. Accelerate vehicle to a speed of more than 10 km/h (6 MPH) with D position (O/D ON).
  4. Release accelerator pedal completely with D position (O/D OFF).
