Wiring Diagram - AT - SSV/B

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

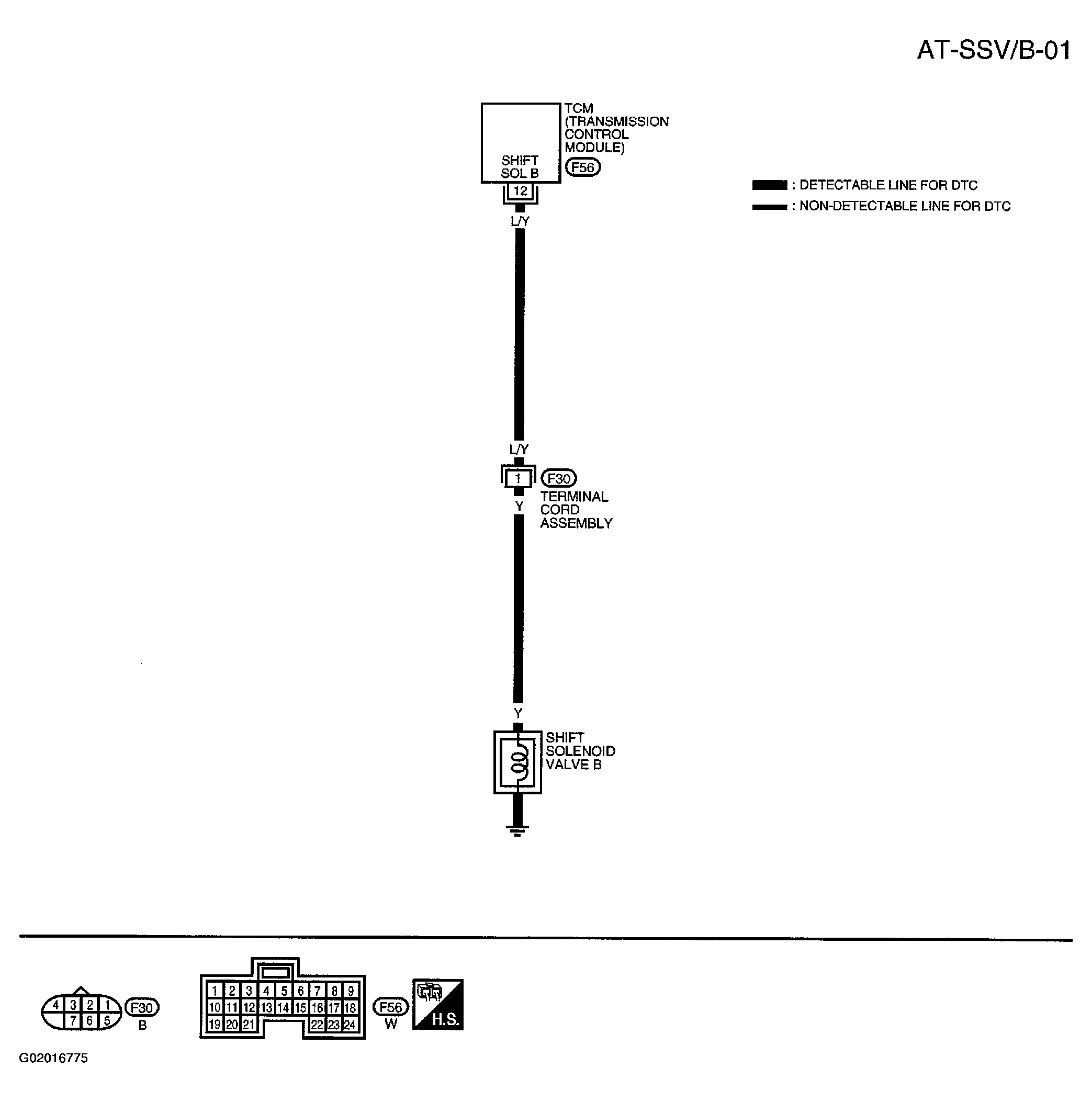

Fig 1: Shift Solenoid Valve B Circuit And Identifying Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

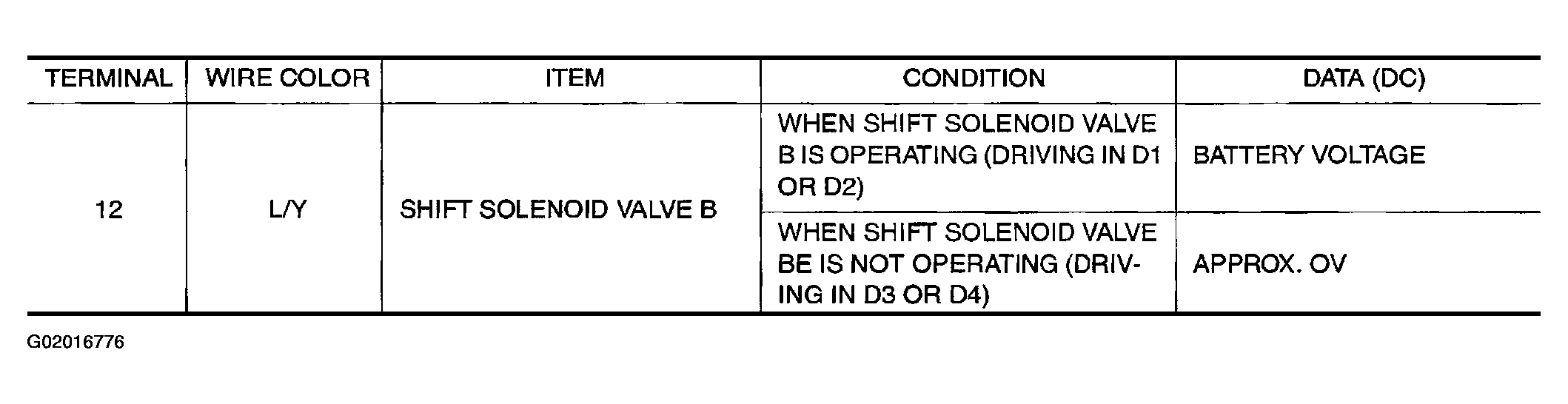

Fig 2: TCM Terminal Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
