With Consult-II

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select DATA MONITOR mode for ENGINE with CONSULT-II.

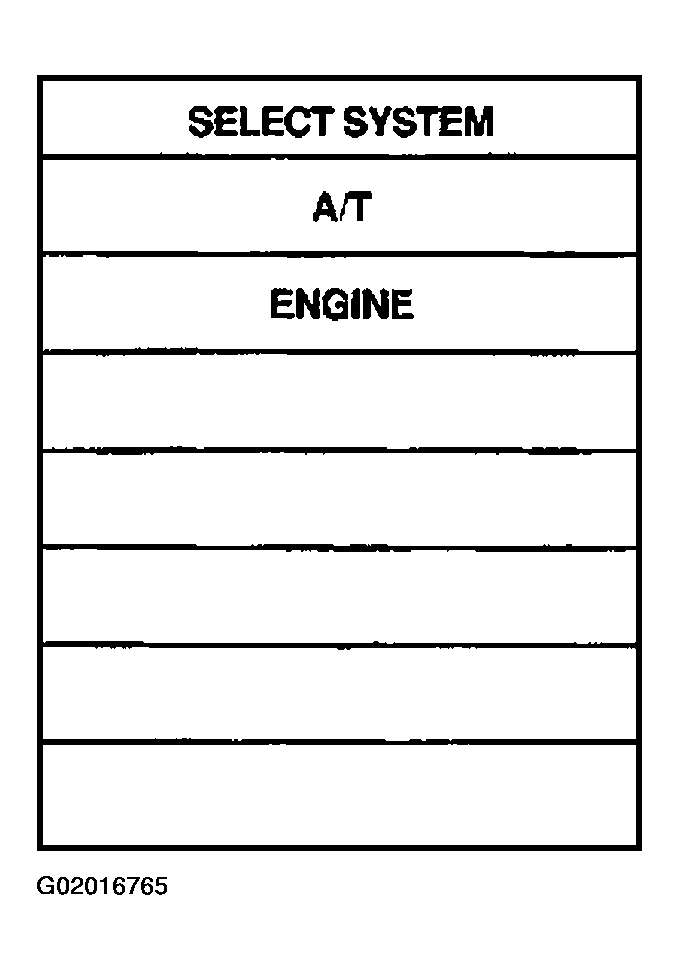

    Fig 1: DTC Confirmation Procedure With CONSULT -II (1 Of 2)
    G02016765Courtesy of NISSAN MOTOR CO., U.S.A.

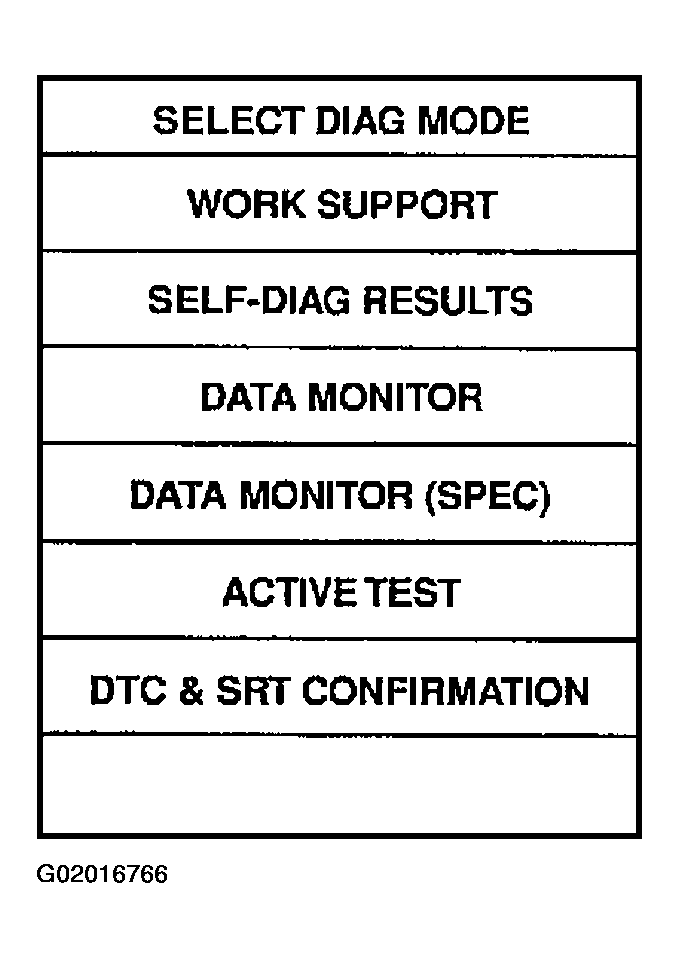

    Fig 2: DTC Confirmation Procedure With CONSULT -II (2 Of 2)
    G02016766Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine.
  3. Drive vehicle in D position and allow the transmission to shift 1 --> 2 (GEAR).
