Wiring Diagram - AT - 1ST

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

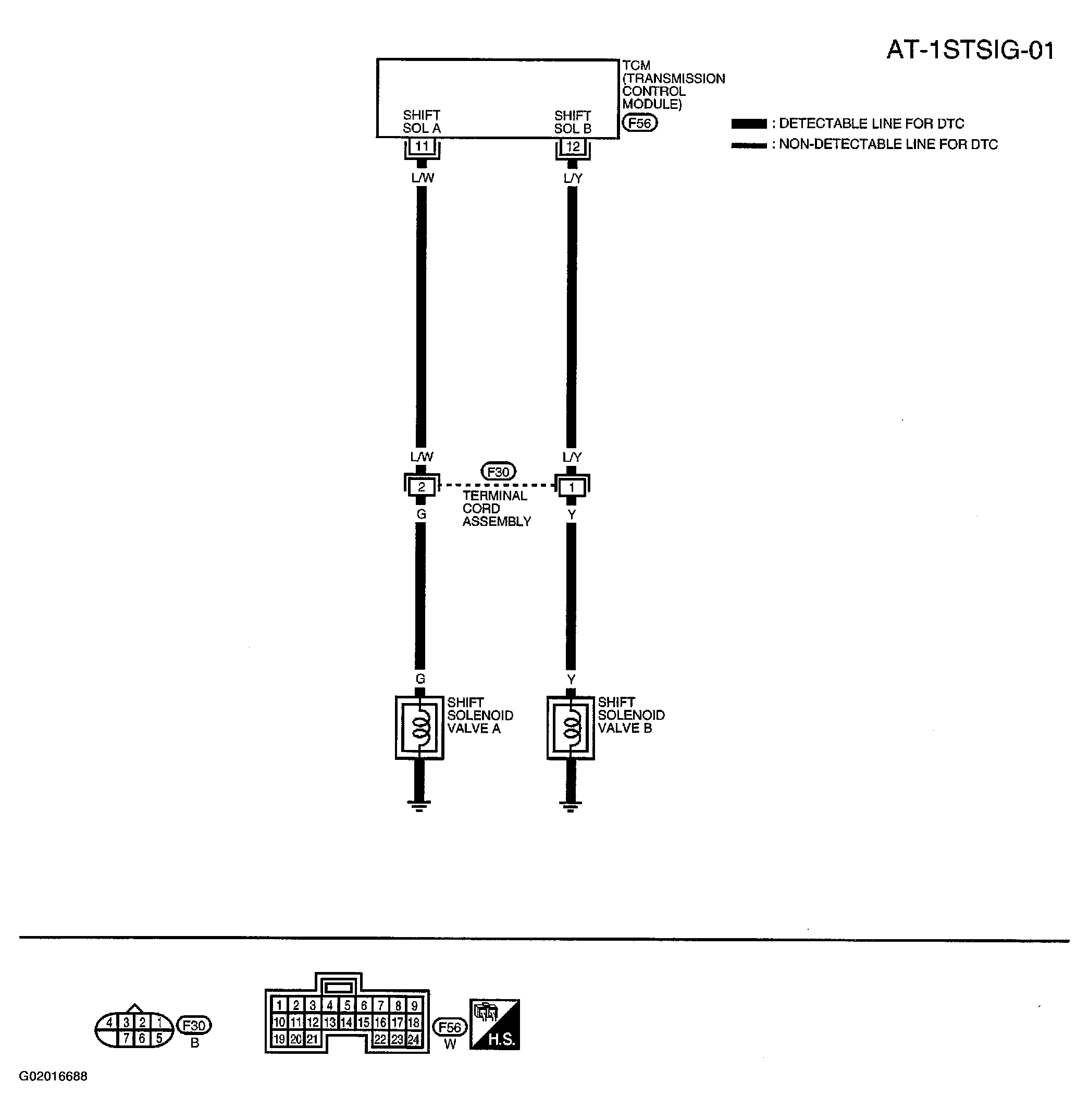

Fig 1: 1st Gear Function Circuit And Identifying Connectors
G02016688Courtesy of NISSAN MOTOR CO., U.S.A.

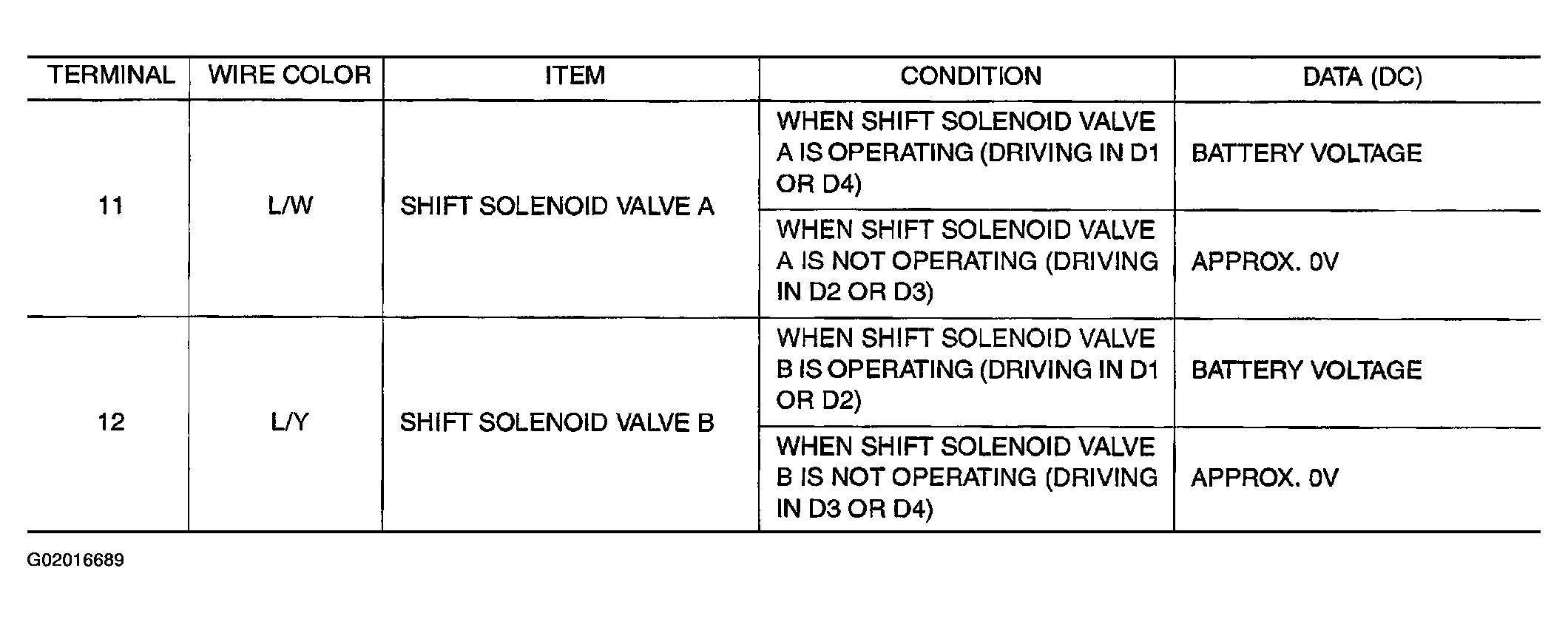

TCM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 25 OR 48 (TCM GROUND)

Fig 2: TCM Terminal Reference Values
G02016689Courtesy of NISSAN MOTOR CO., U.S.A.
