With Consult-II

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select DATA MONITOR mode for ENGINE with CONSULT-II.

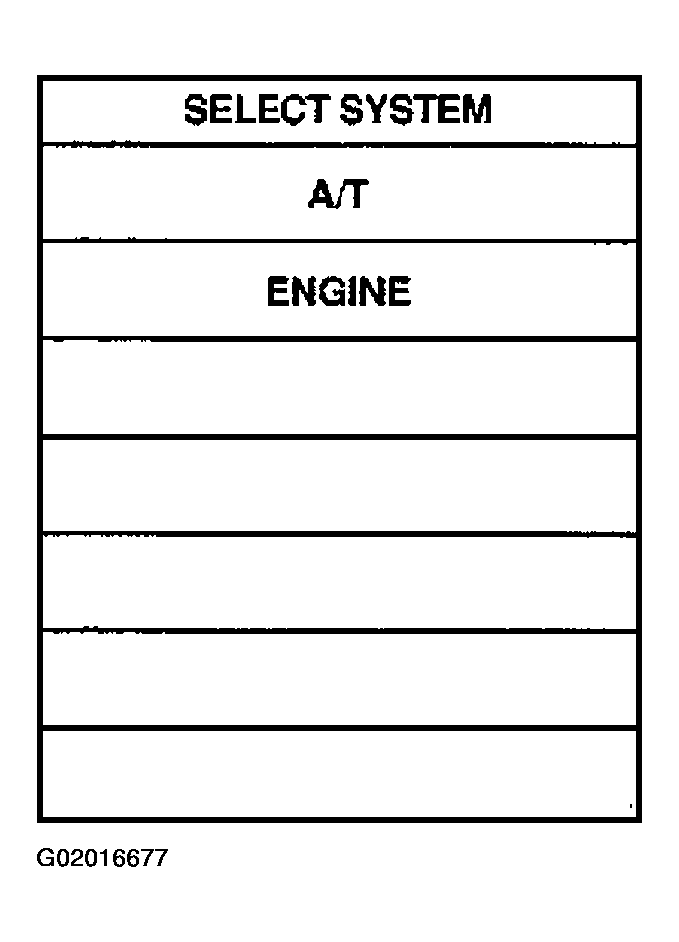

    Fig 1: DTC Confirmation Procedure With CONSULT-II (1 Of 2)
    G02016677Courtesy of NISSAN MOTOR CO., U.S.A.

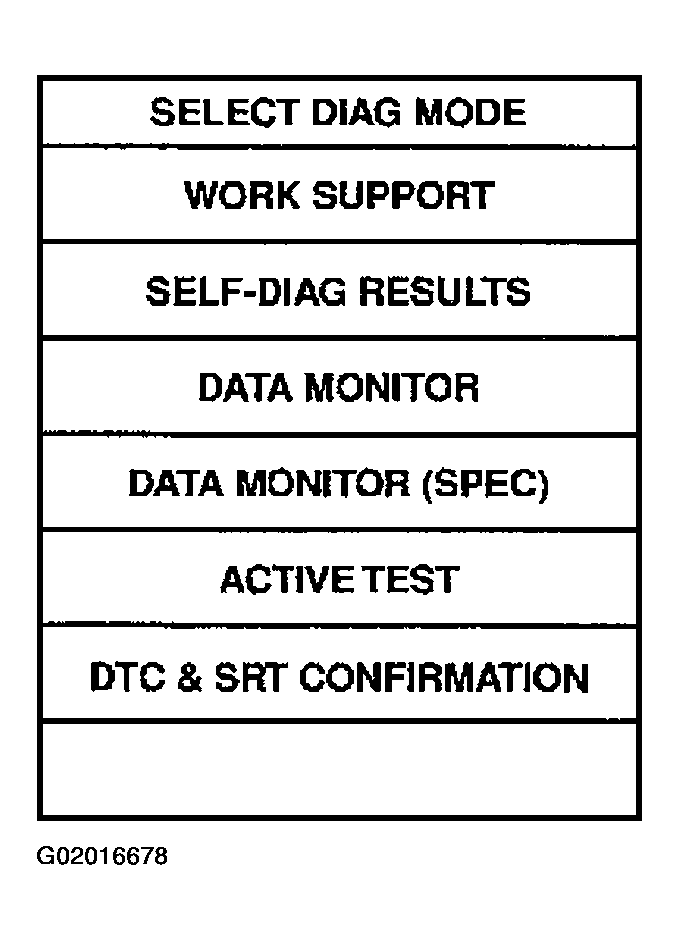

    Fig 2: DTC Confirmation Procedure With CONSULT-II (2 Of 2)
    G02016678Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine and maintain the following conditions for at least 10 consecutive seconds.

    VHCL SPEED SE: 10 km/h (6 MPH) or more THRTL POS SEN: More than 1.2V Selector lever: D position (O/D ON)
