With Consult-II

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON and select DATA MONITOR mode for A/T with CONSULT-II.

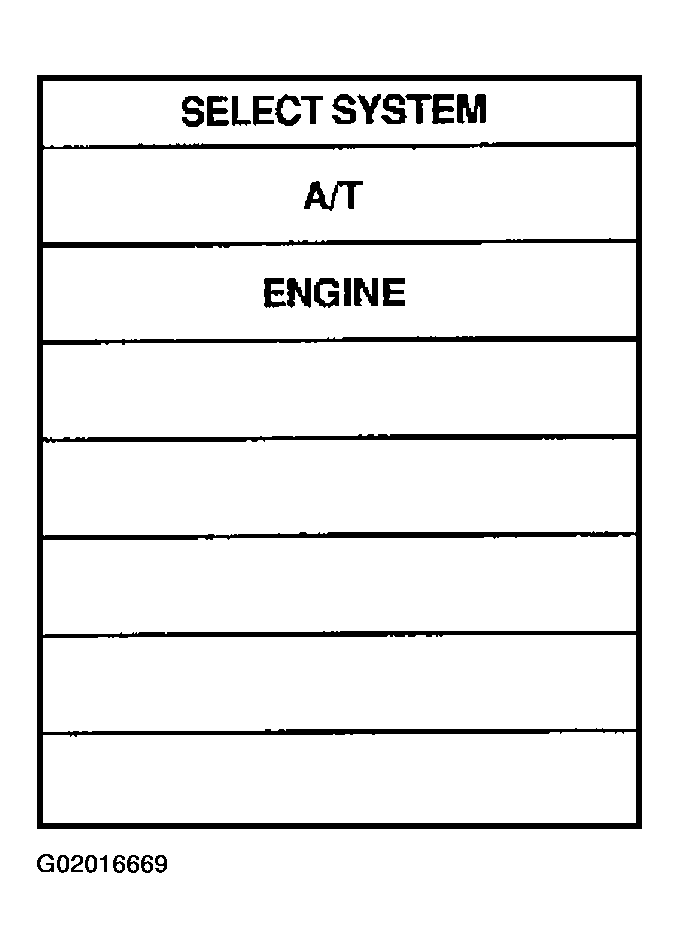

Fig 1: DTC Confirmation Procedure With CONSULT-II (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

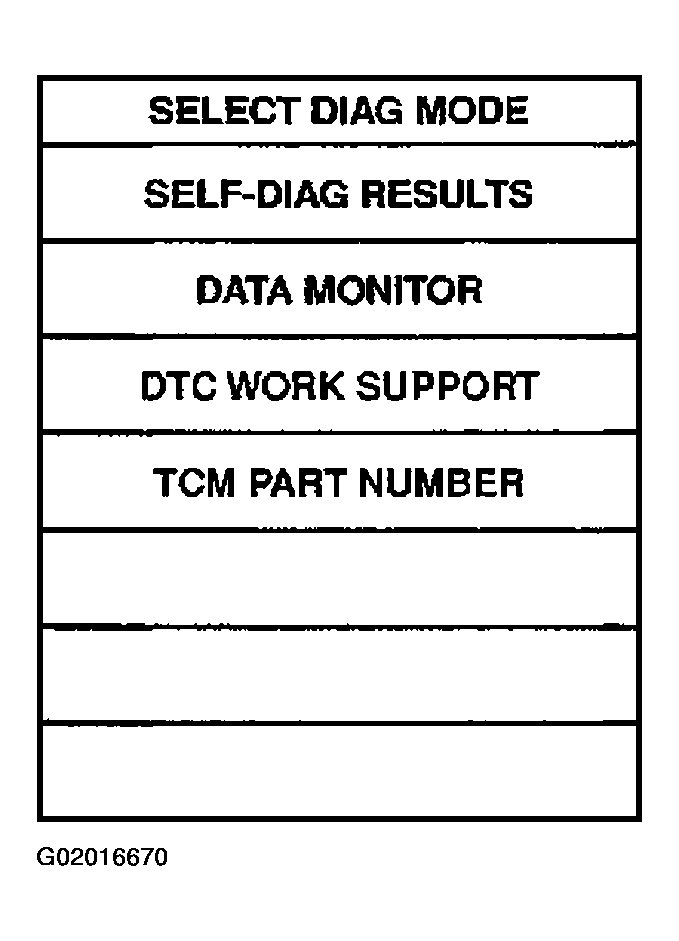

Fig 2: DTC Confirmation Procedure With CONSULT-II (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive vehicle and check for an increase of VHCL/S SE.MTR value.
If the check result is NG, go to DIAGNOSTIC PROCEDURE .

If the check result is OK, go to following step.
Select DATA MONITOR mode for ENGINE with CONSULT-II.

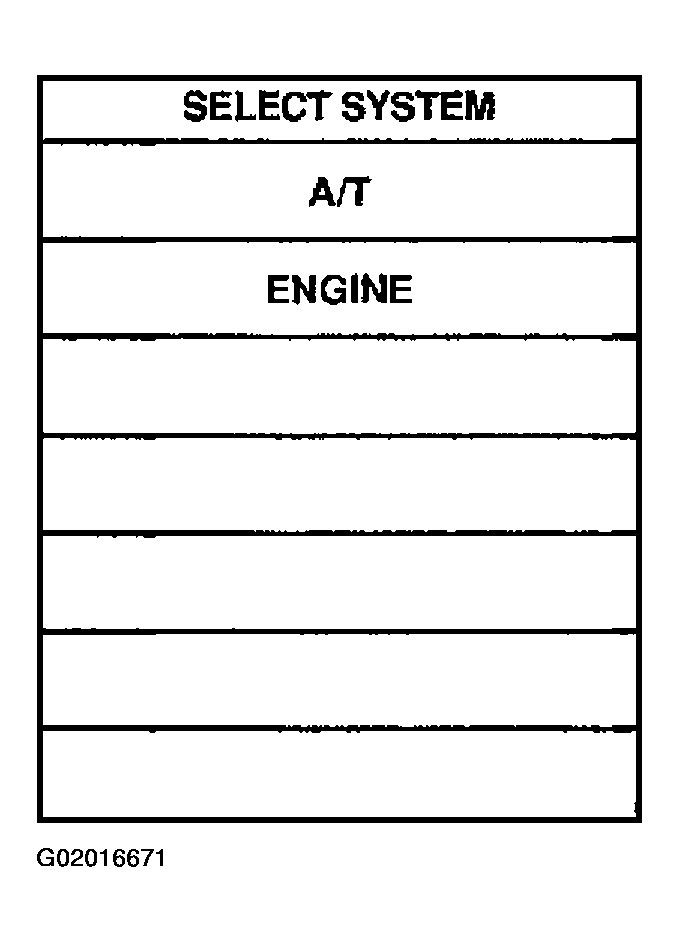

Fig 3: DTC Confirmation Procedure With CONSULT-II (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

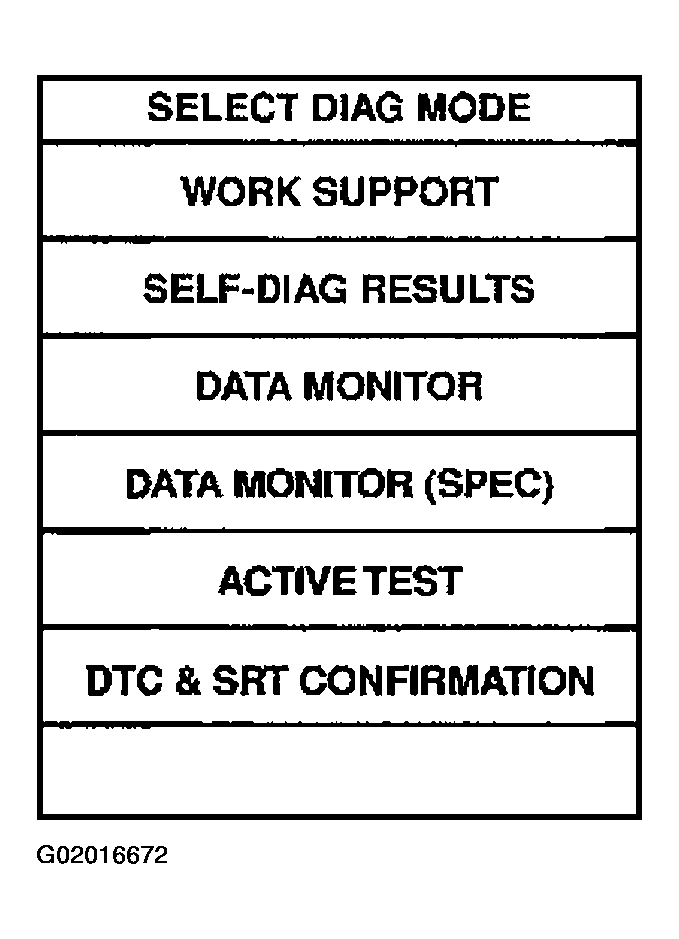

Fig 4: DTC Confirmation Procedure With CONSULT-II (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 30 km/h (19 MPH) or more THRTL POS SEN: More than 1.2V Selector lever: D position (O/D ON)

Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.

If the check result is NG, go to DIAGNOSTIC PROCEDURE .

If the check result is OK, go to following step.
Maintain the following conditions for at least 5 consecutive seconds.
CMPS.RPM (REF): 3,500 rpm or more THRTL POS SEN: More than 1.2V Selector lever: D position (O/D ON)

Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.
