DTC P0720 Vehicle Speed Sensor (A/T Revolution Sensor): Description

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

The revolution sensor detects the revolution of the idler gear parking pawl lock gear and emits a pulse signal. The pulse signal is sent to the TCM which converts it into vehicle speed.

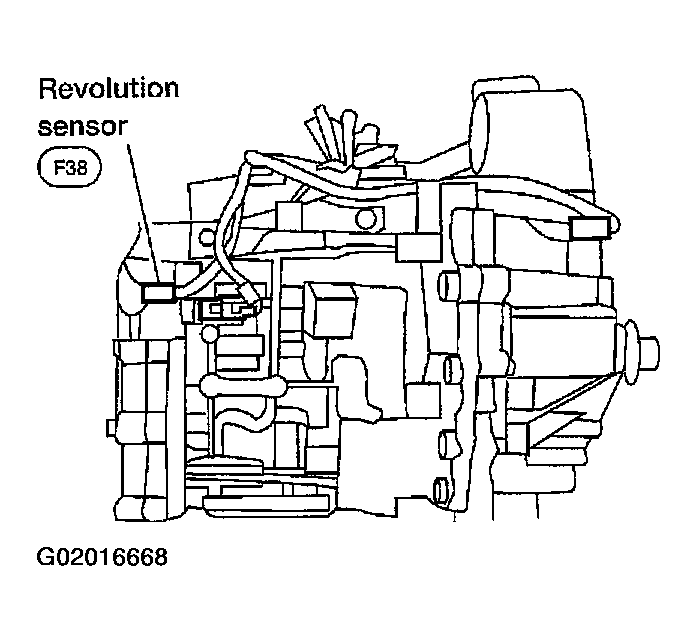

Fig 1: Locating Revolution Sensor
G02016668Courtesy of NISSAN MOTOR CO., U.S.A.
