With Consult-II

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select DATA MONITOR mode for A/T with CONSULT-II.

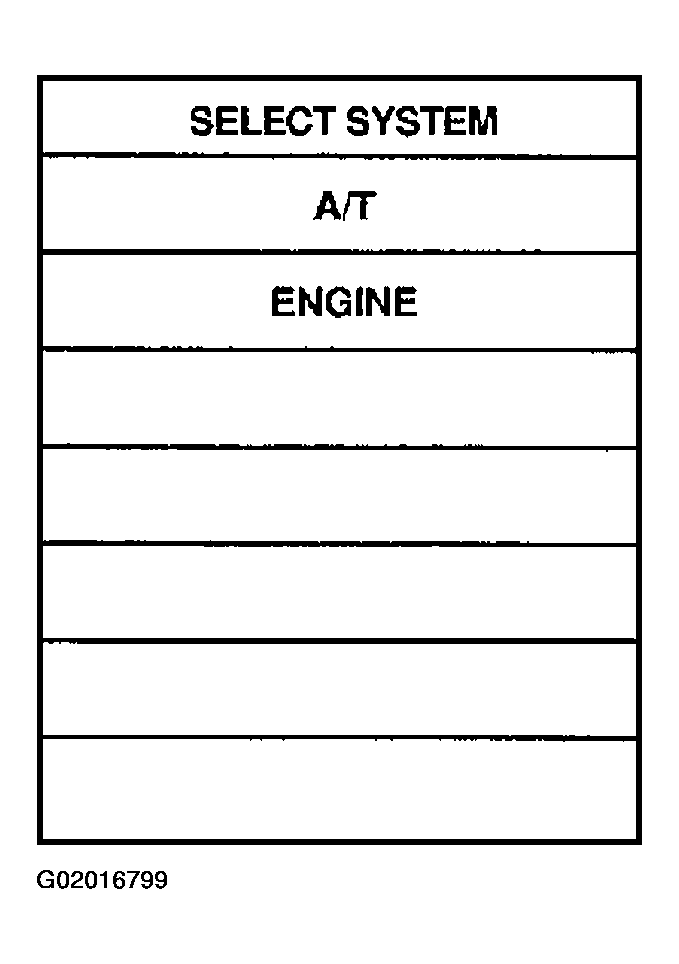

    Fig 1: DTC Confirmation Procedure With CONSULT -II (1 Of 2)
    G02016799Courtesy of NISSAN MOTOR CO., U.S.A.

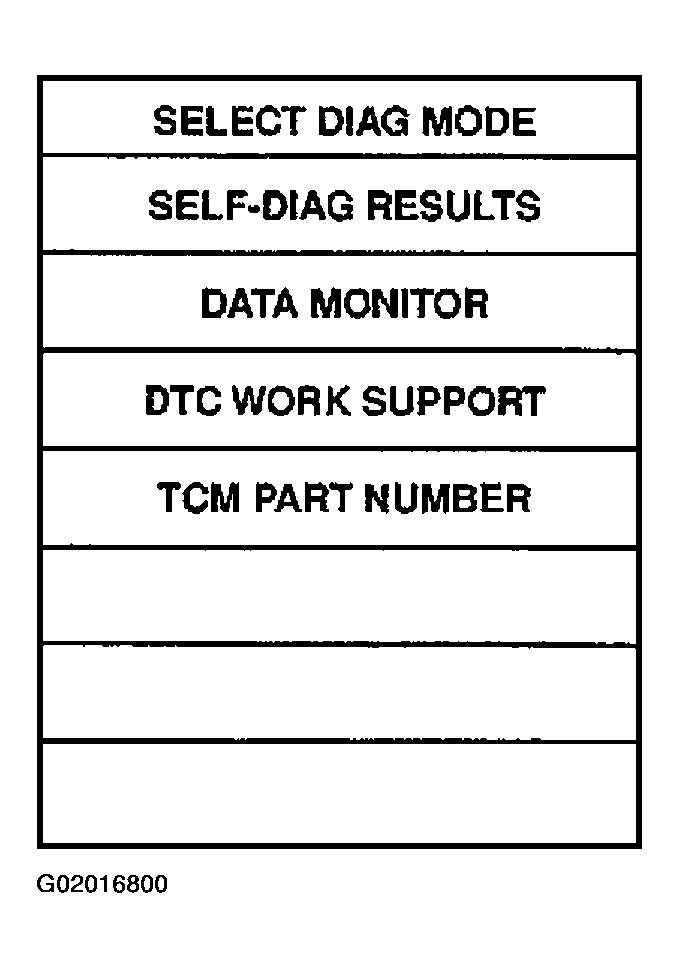

    Fig 2: DTC Confirmation Procedure With CONSULT -II (2 Of 2)
    G02016800Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive vehicle under the following conditions: Selector lever in D, vehicle speed higher than 20 km/h (12 MPH).
