Wiring Diagram - SHIFT -

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

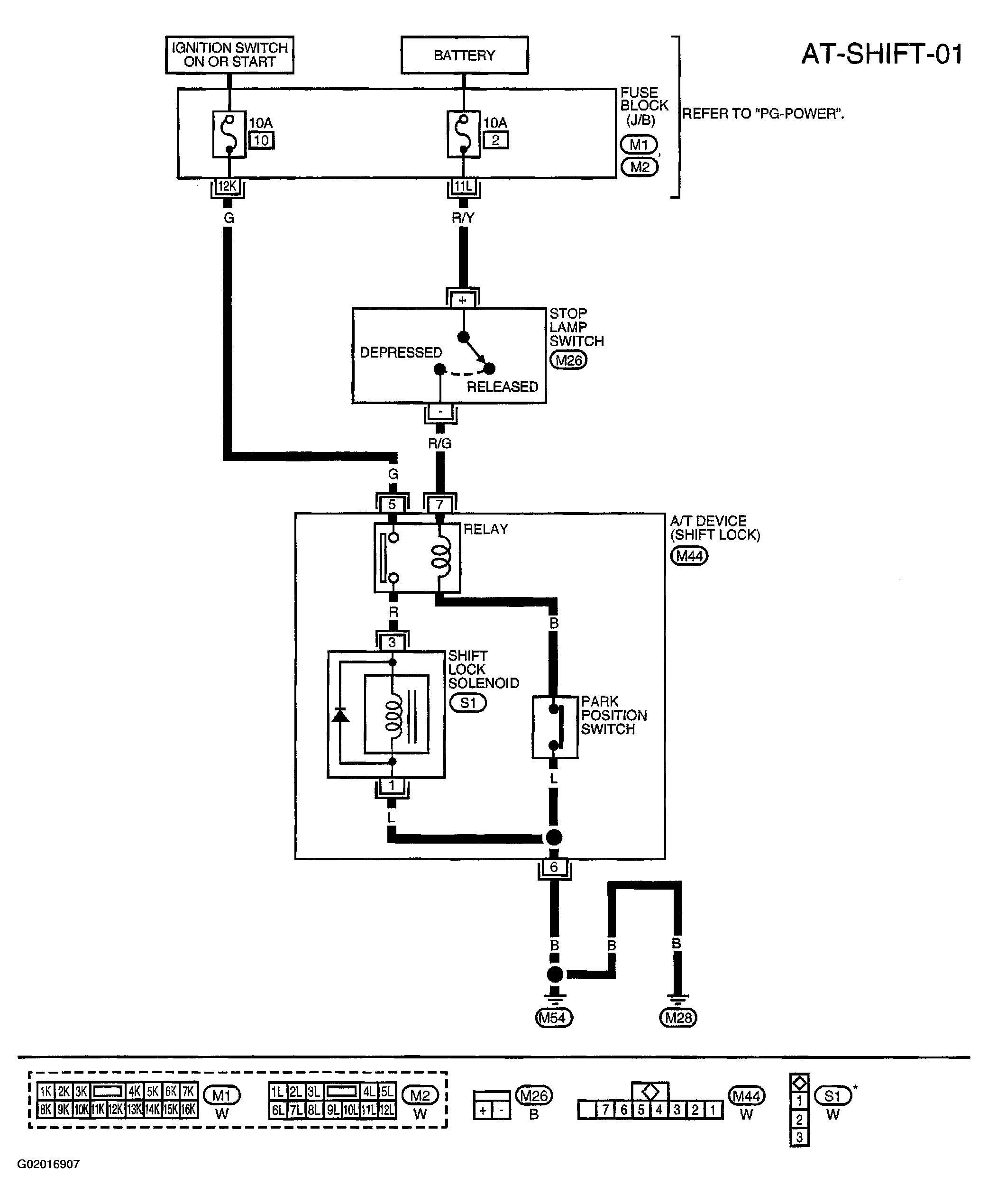

Fig 1: Shift Lock System Circuit And Identifying Connectors
G02016907Courtesy of NISSAN MOTOR CO., U.S.A.
