Symptom Chart

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Numbers are arranged in order of inspection.

Perform inspections starting with number one and work up.

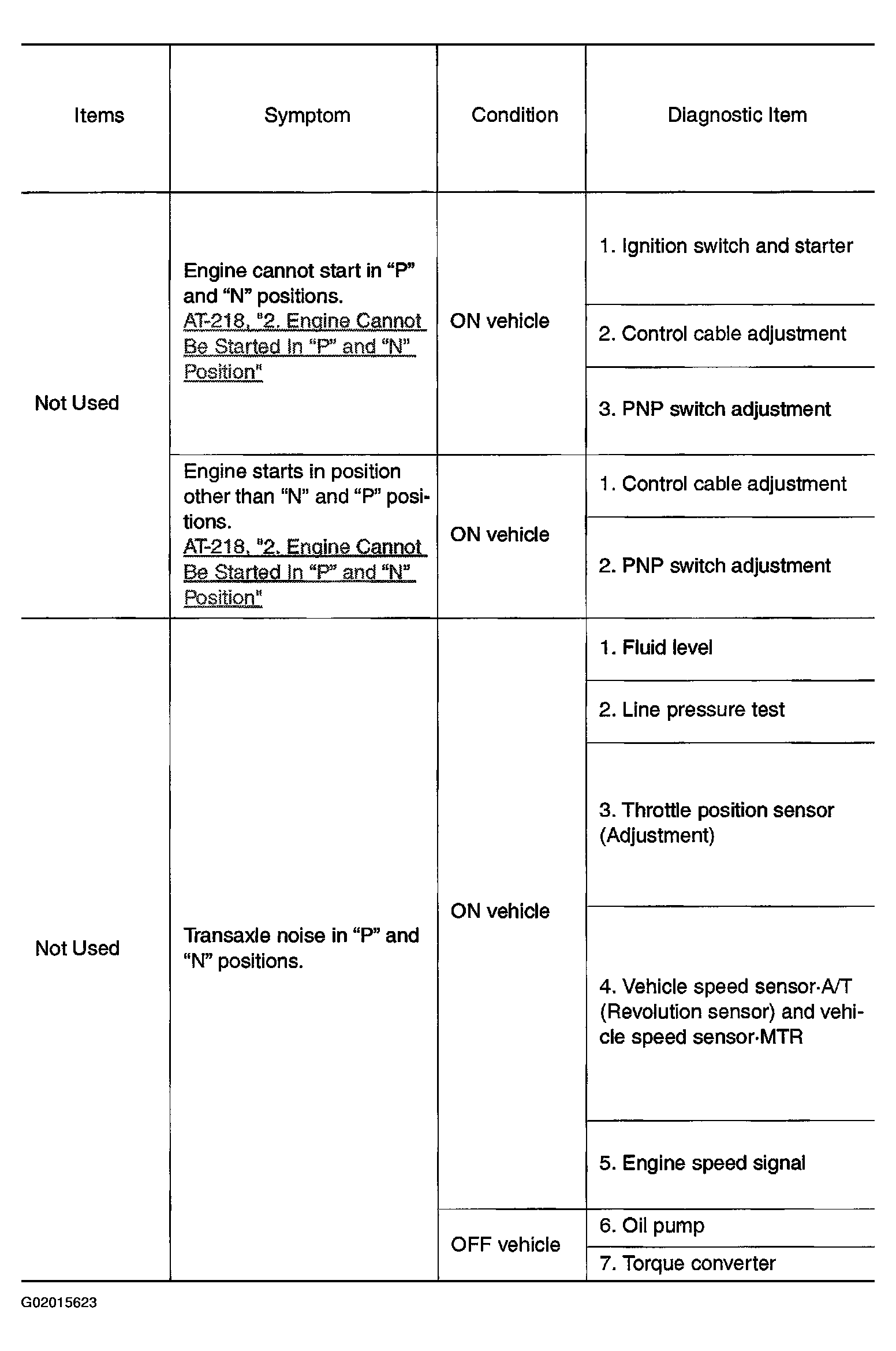

Fig 1: Isolating Causes Of Symptoms (1 Of 23)

G02015623

Courtesy of NISSAN MOTOR CO., U.S.A.

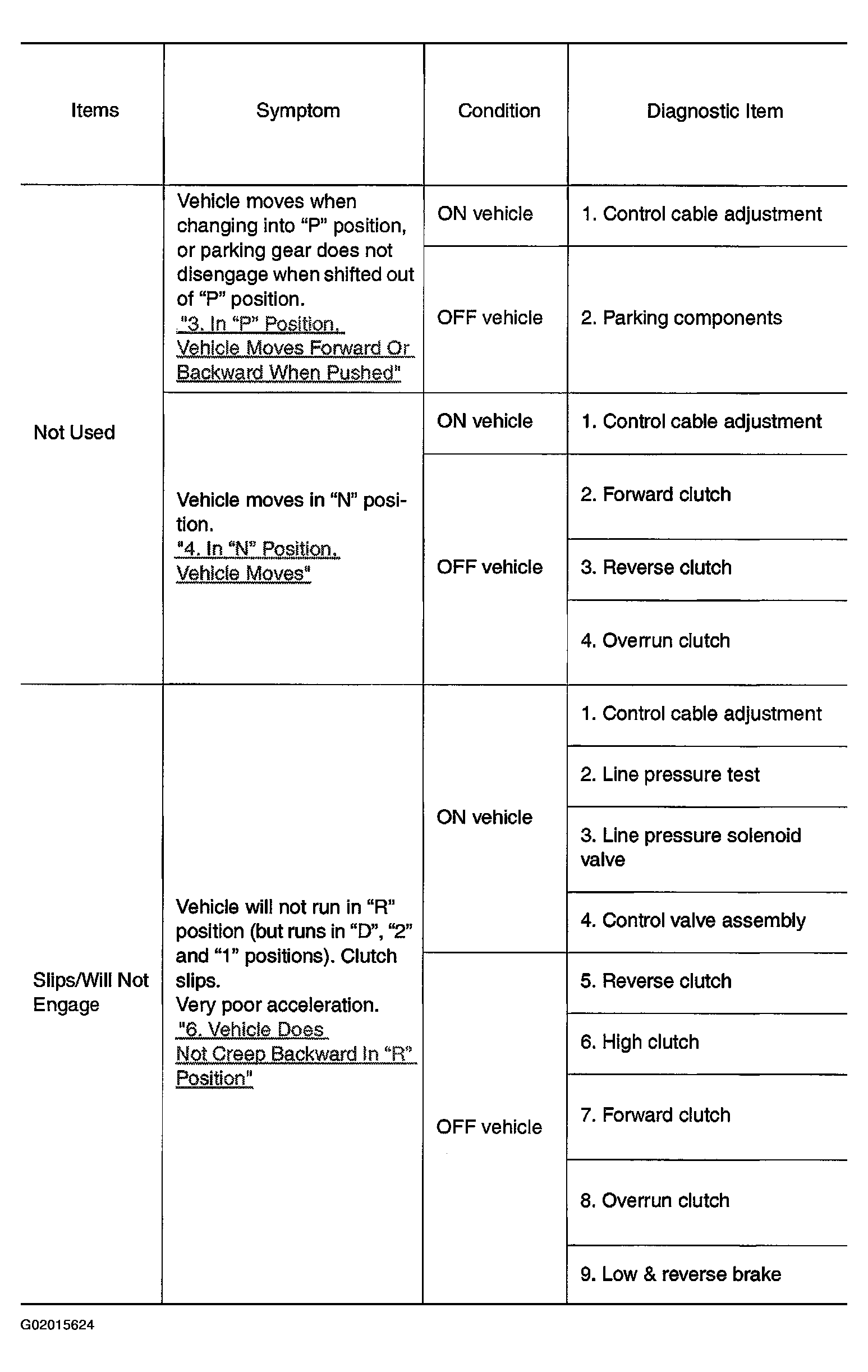

Fig 2: Isolating Causes Of Symptoms (2 Of 23)

G02015624

Courtesy of NISSAN MOTOR CO., U.S.A.

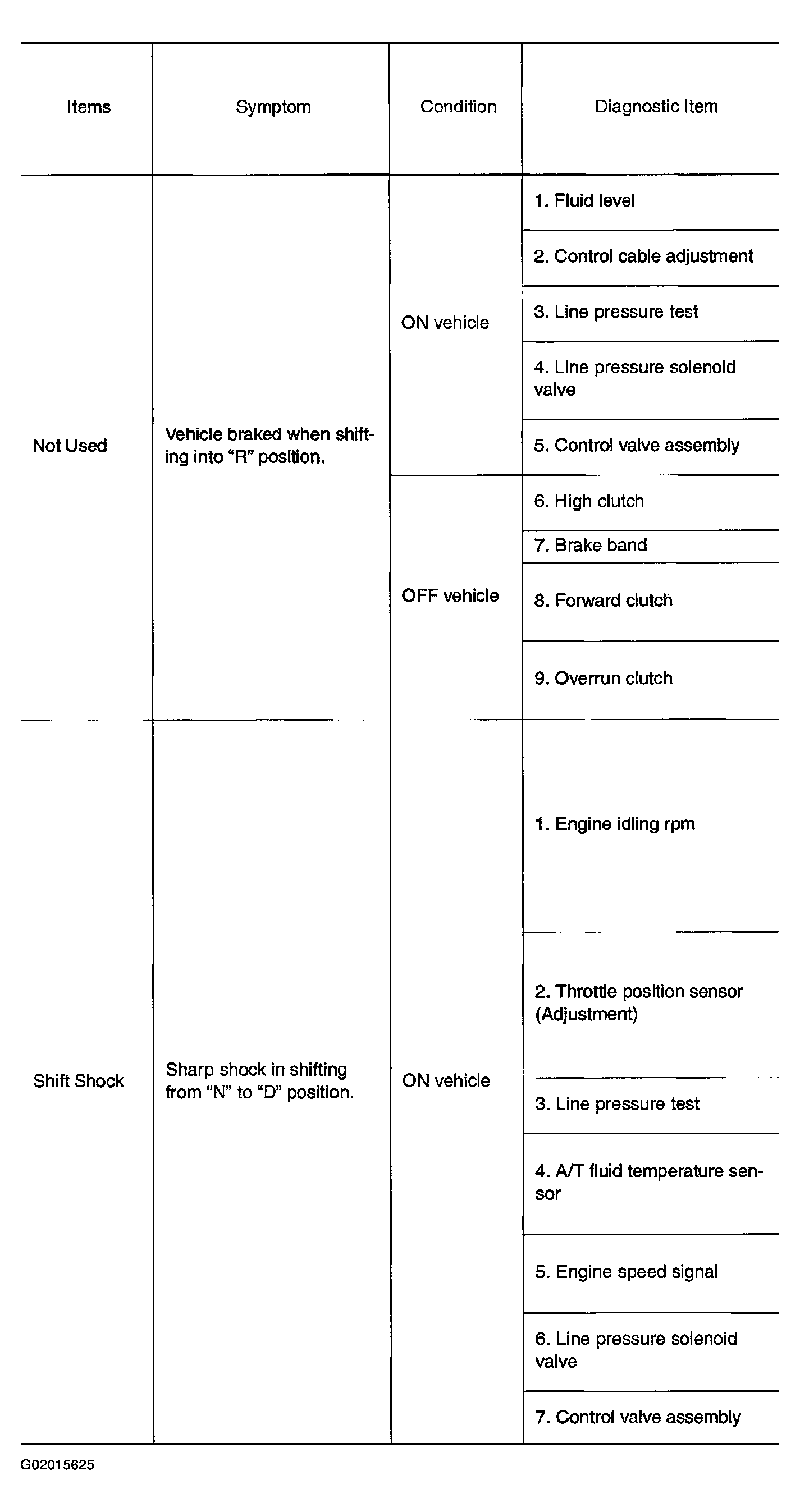

Fig 3: Isolating Causes Of Symptoms (3 Of 23)

G02015625

Courtesy of NISSAN MOTOR CO., U.S.A.

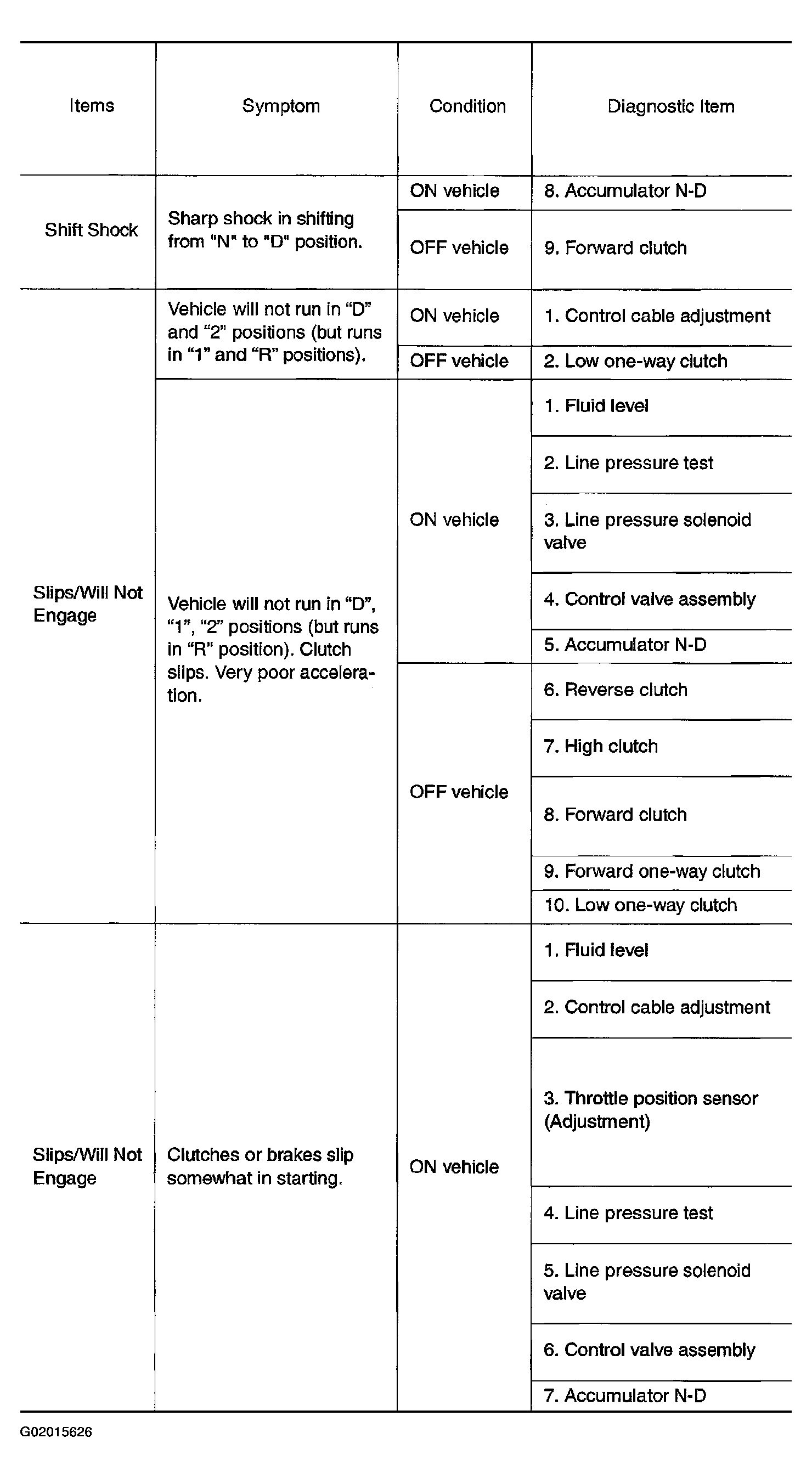

Fig 4: Isolating Causes Of Symptoms (4 Of 23)

G02015626

Courtesy of NISSAN MOTOR CO., U.S.A.

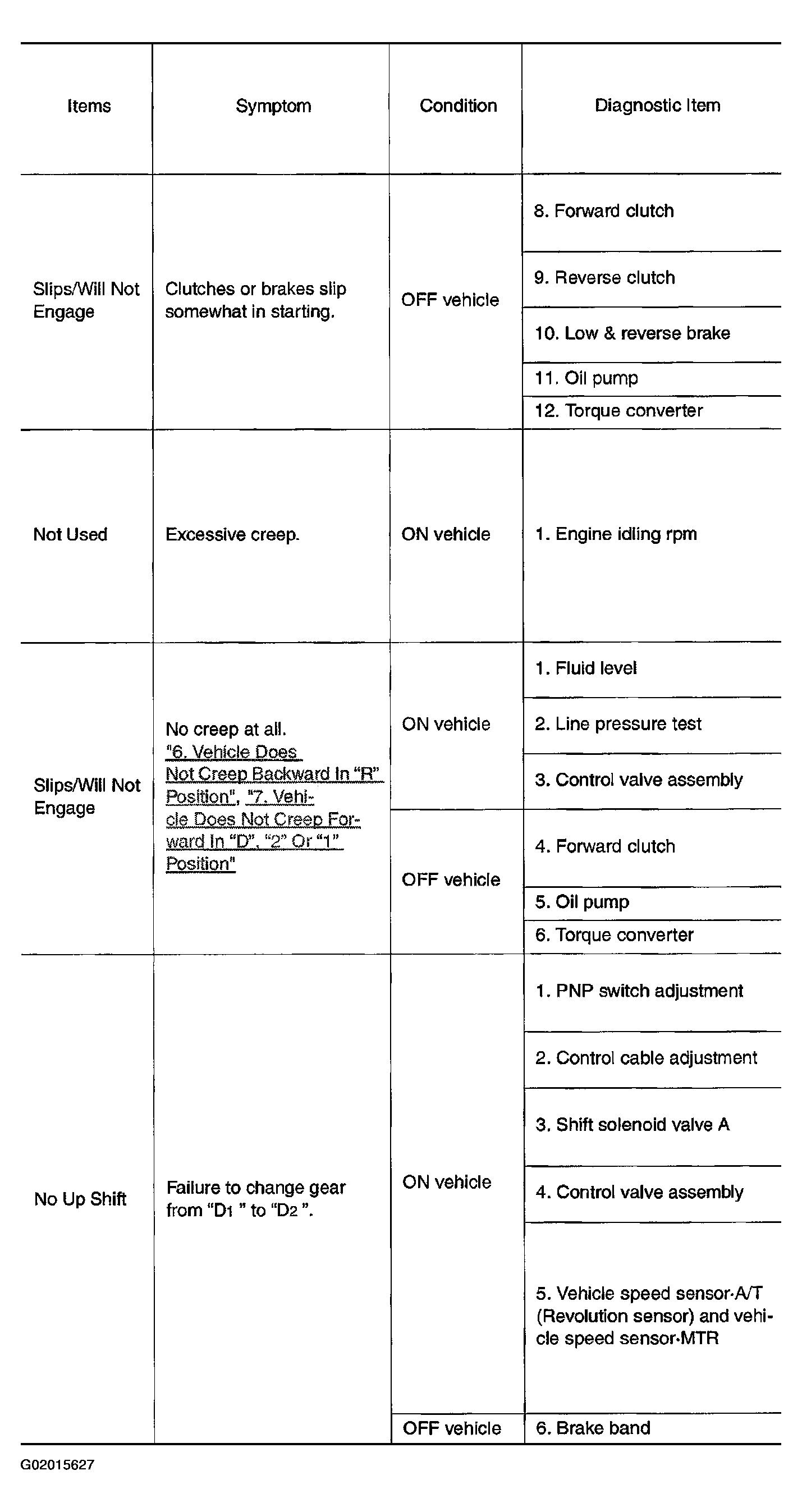

Fig 5: Isolating Causes Of Symptoms (5 Of 23)

G02015627

Courtesy of NISSAN MOTOR CO., U.S.A.

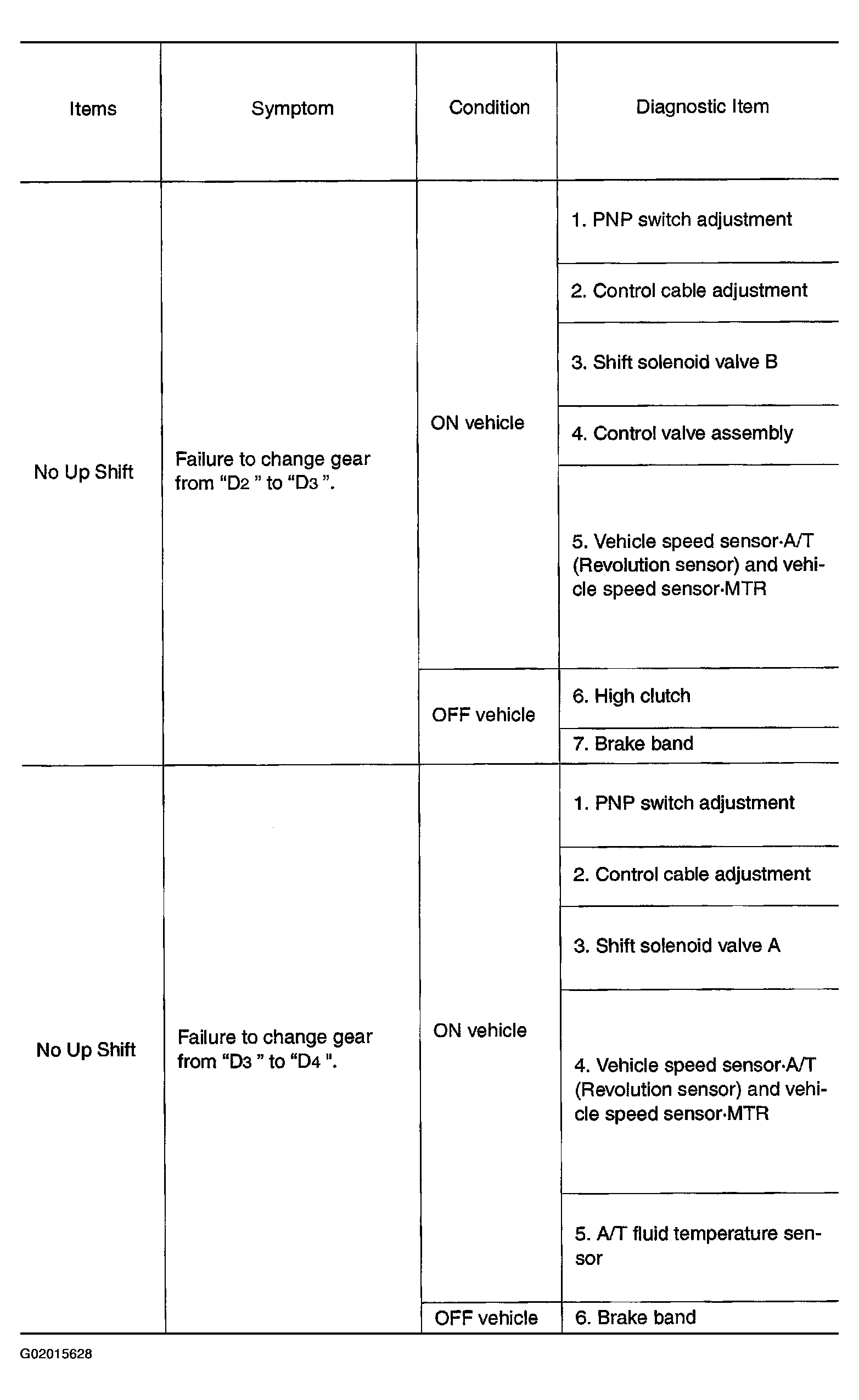

Fig 6: Isolating Causes Of Symptoms (6 Of 23)

G02015628

Courtesy of NISSAN MOTOR CO., U.S.A.

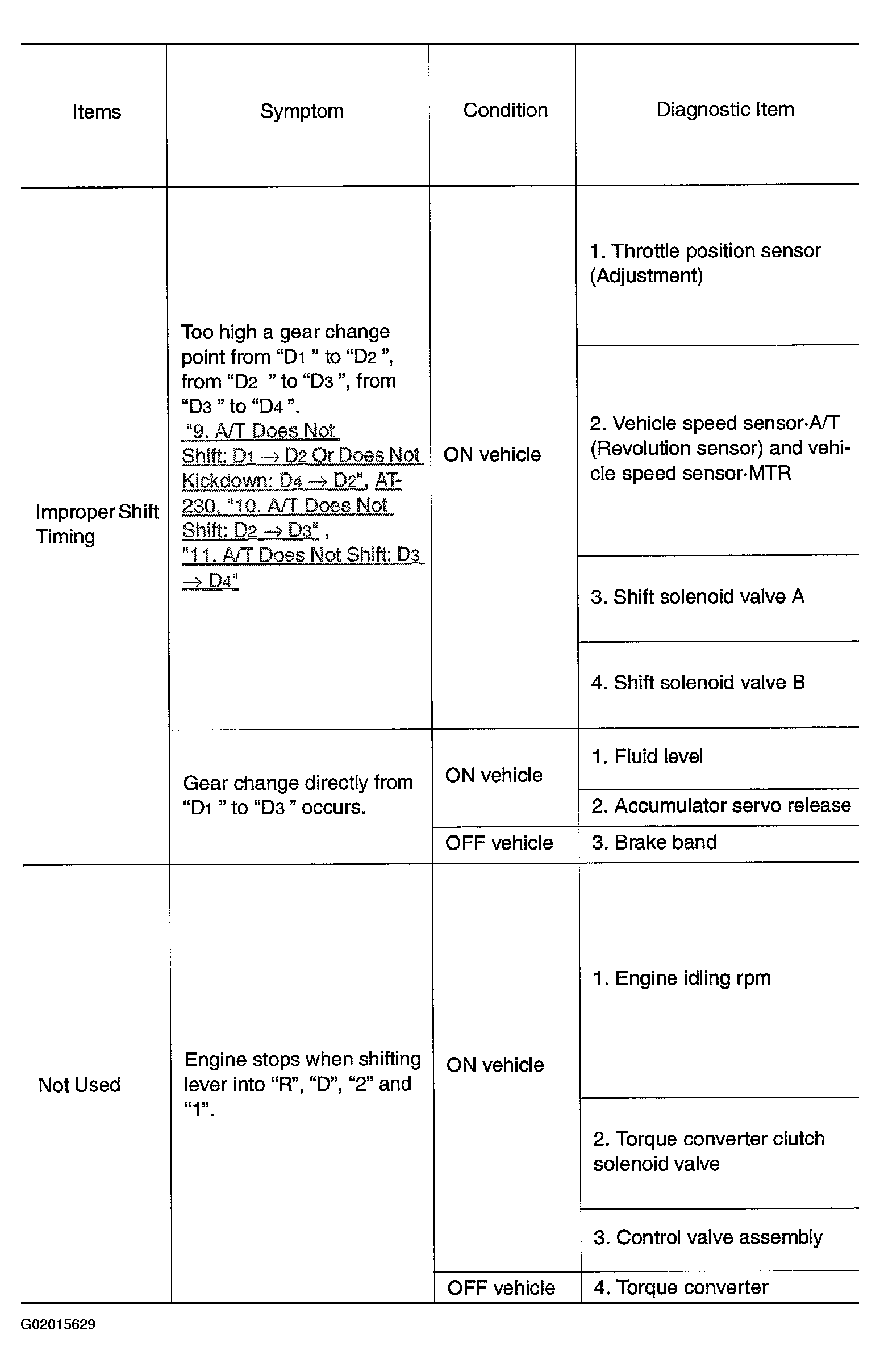

Fig 7: Isolating Causes Of Symptoms (7 Of 23)

G02015629

Courtesy of NISSAN MOTOR CO., U.S.A.

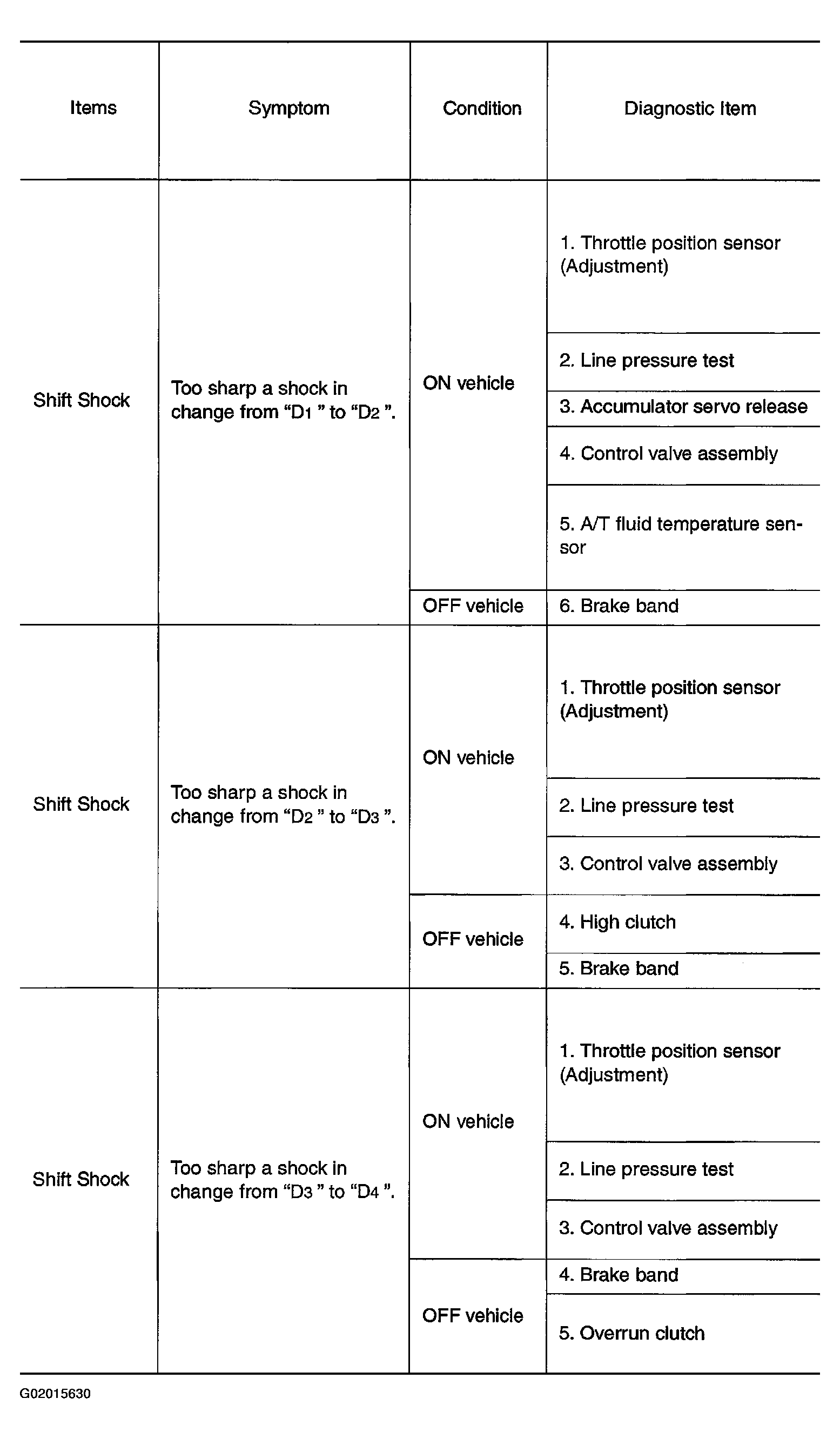

Fig 8: Isolating Causes Of Symptoms (8 Of 23)

G02015630

Courtesy of NISSAN MOTOR CO., U.S.A.

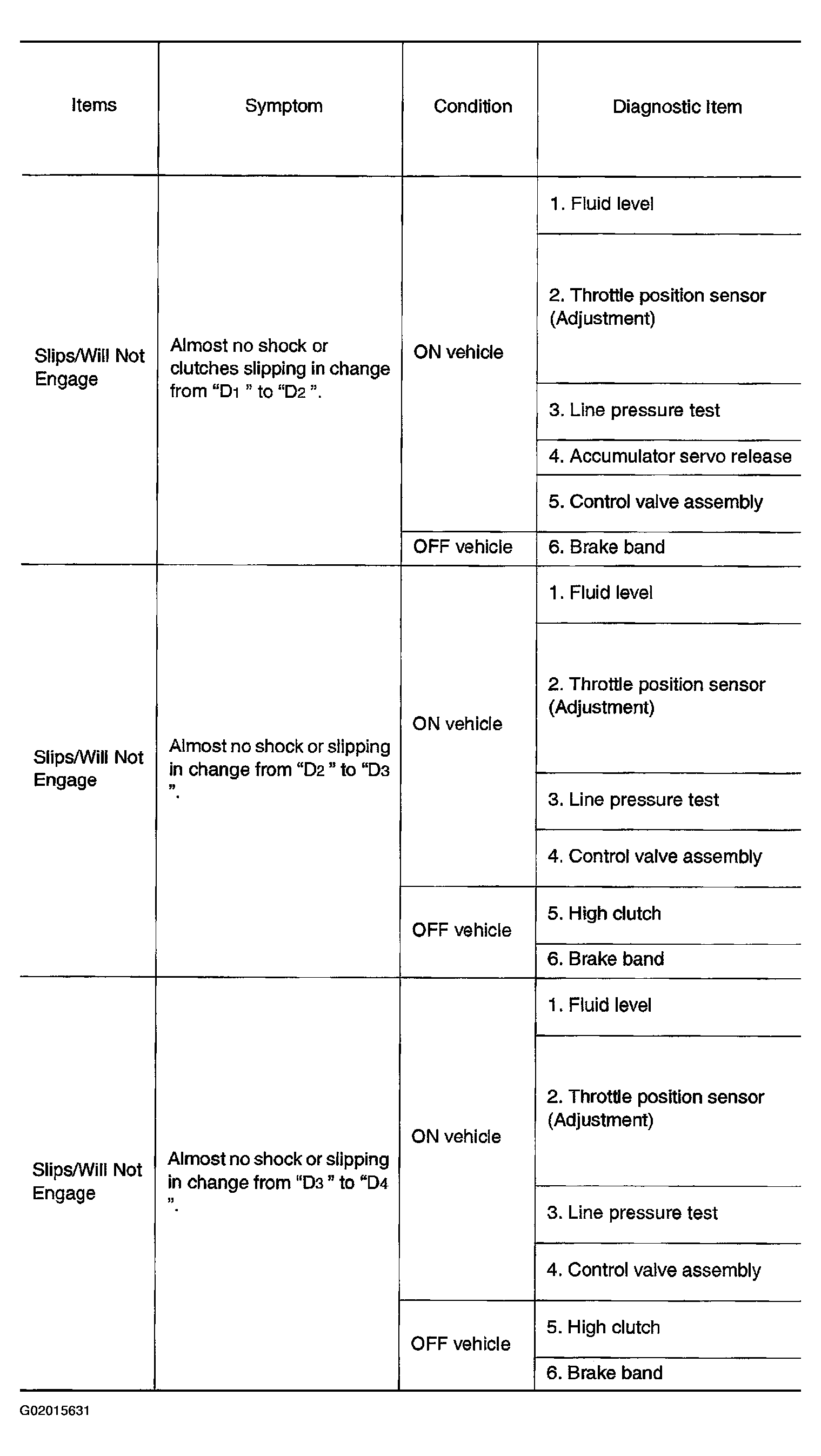

Fig 9: Isolating Causes Of Symptoms (9 Of 23)

G02015631

Courtesy of NISSAN MOTOR CO., U.S.A.

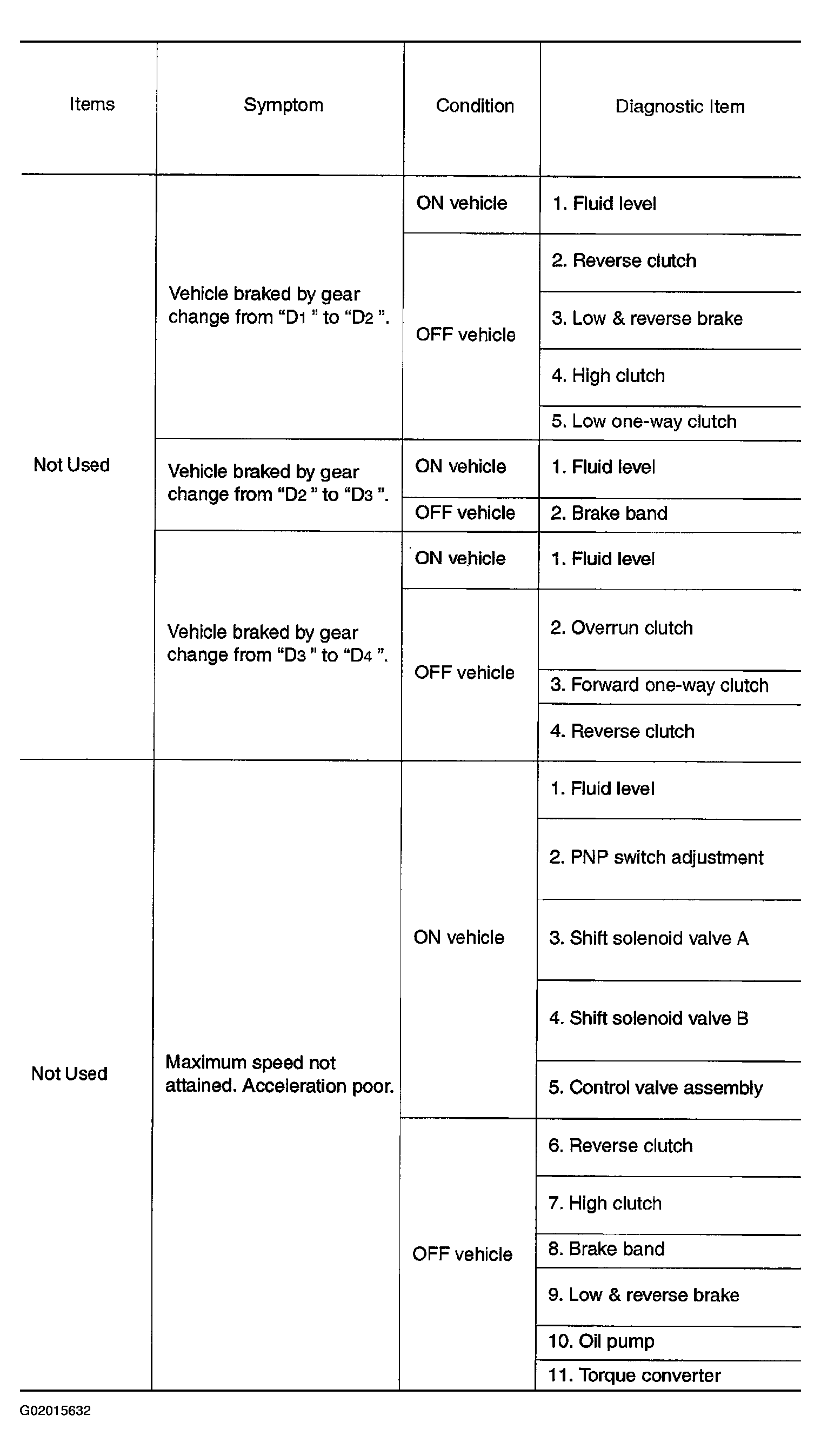

Fig 10: Isolating Causes Of Symptoms (10 Of 23)

G02015632

Courtesy of NISSAN MOTOR CO., U.S.A.

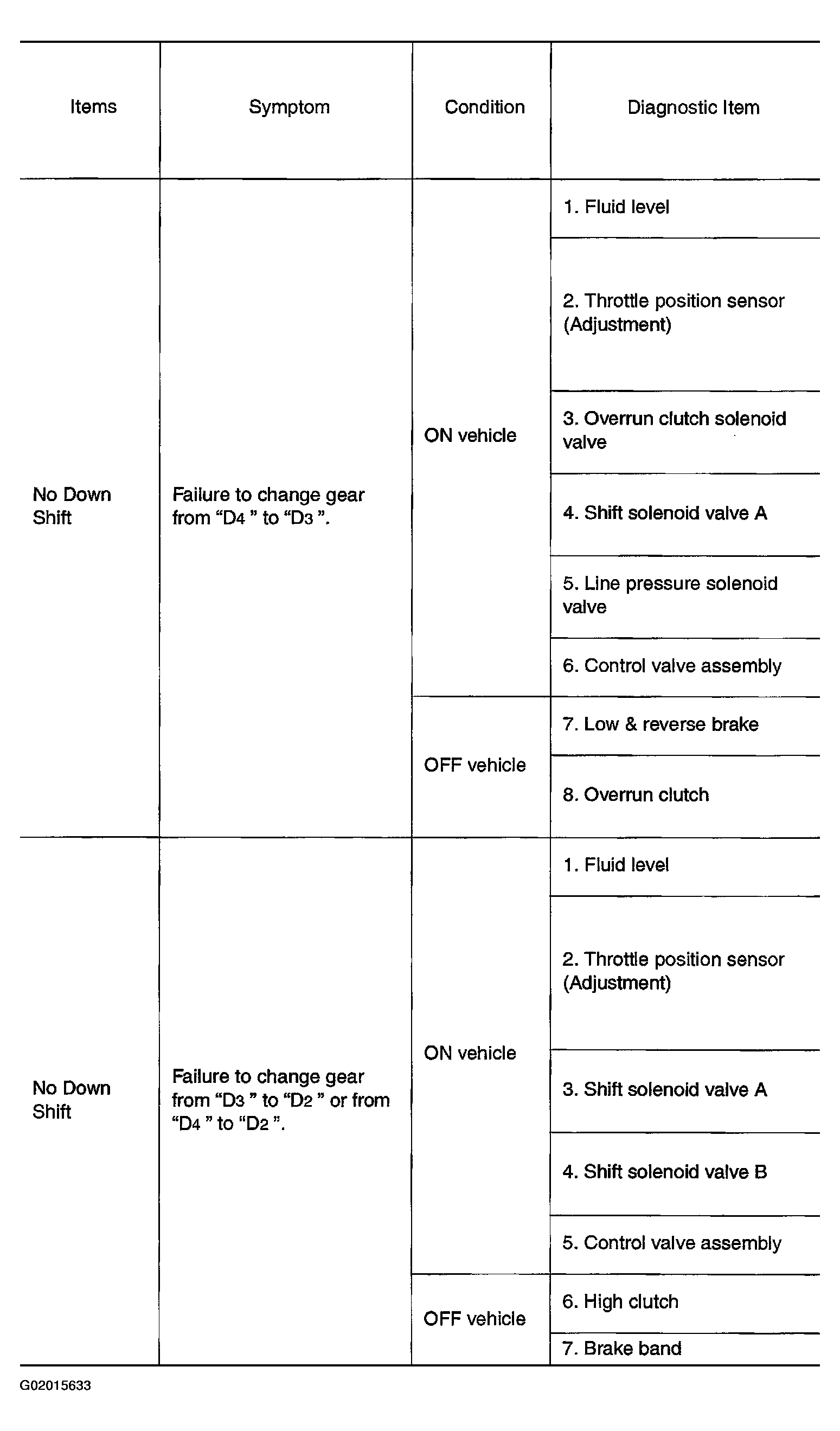

Fig 11: Isolating Causes Of Symptoms (11 Of 23)

G02015633

Courtesy of NISSAN MOTOR CO., U.S.A.

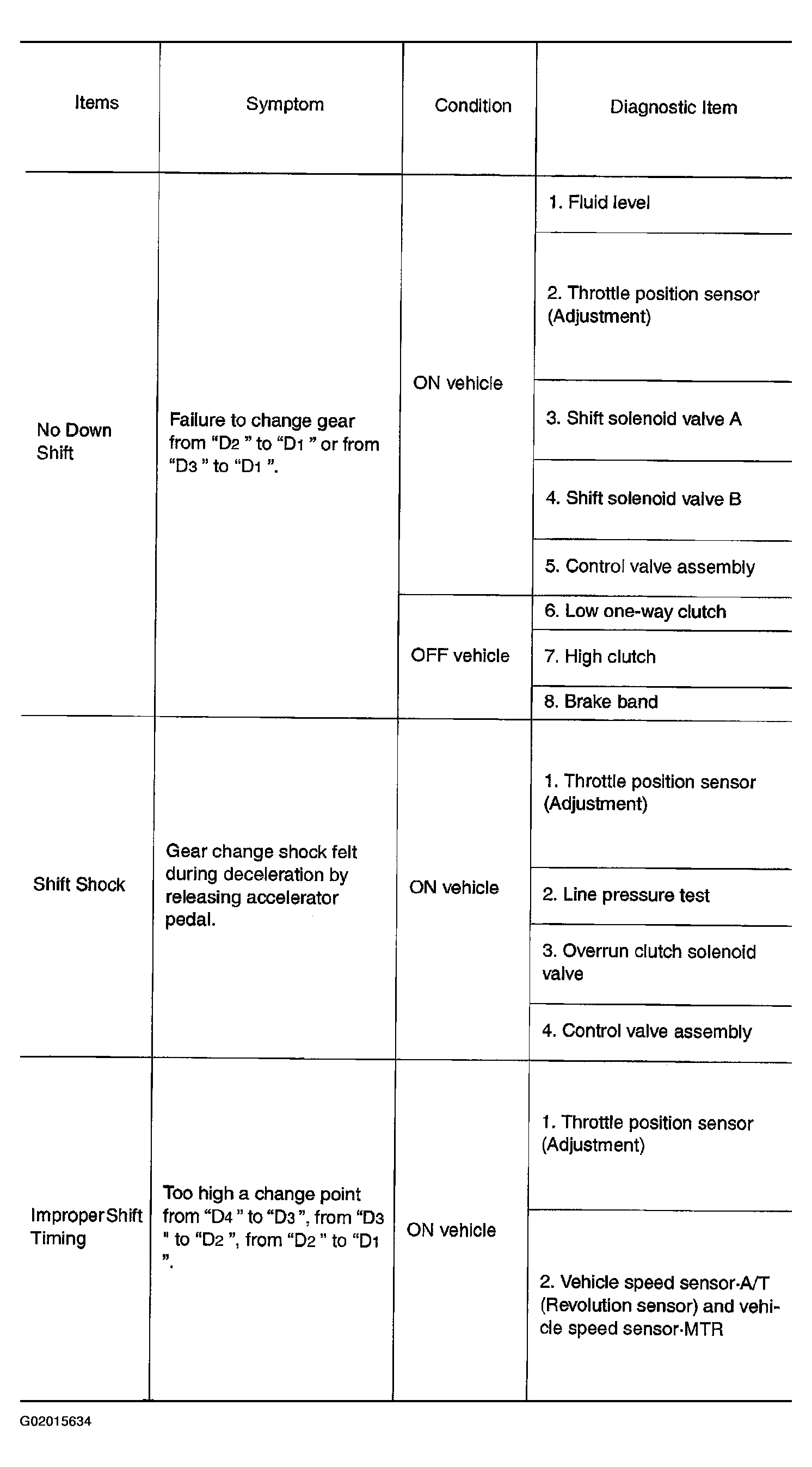

Fig 12: Isolating Causes Of Symptoms (12 Of 23)

G02015634

Courtesy of NISSAN MOTOR CO., U.S.A.

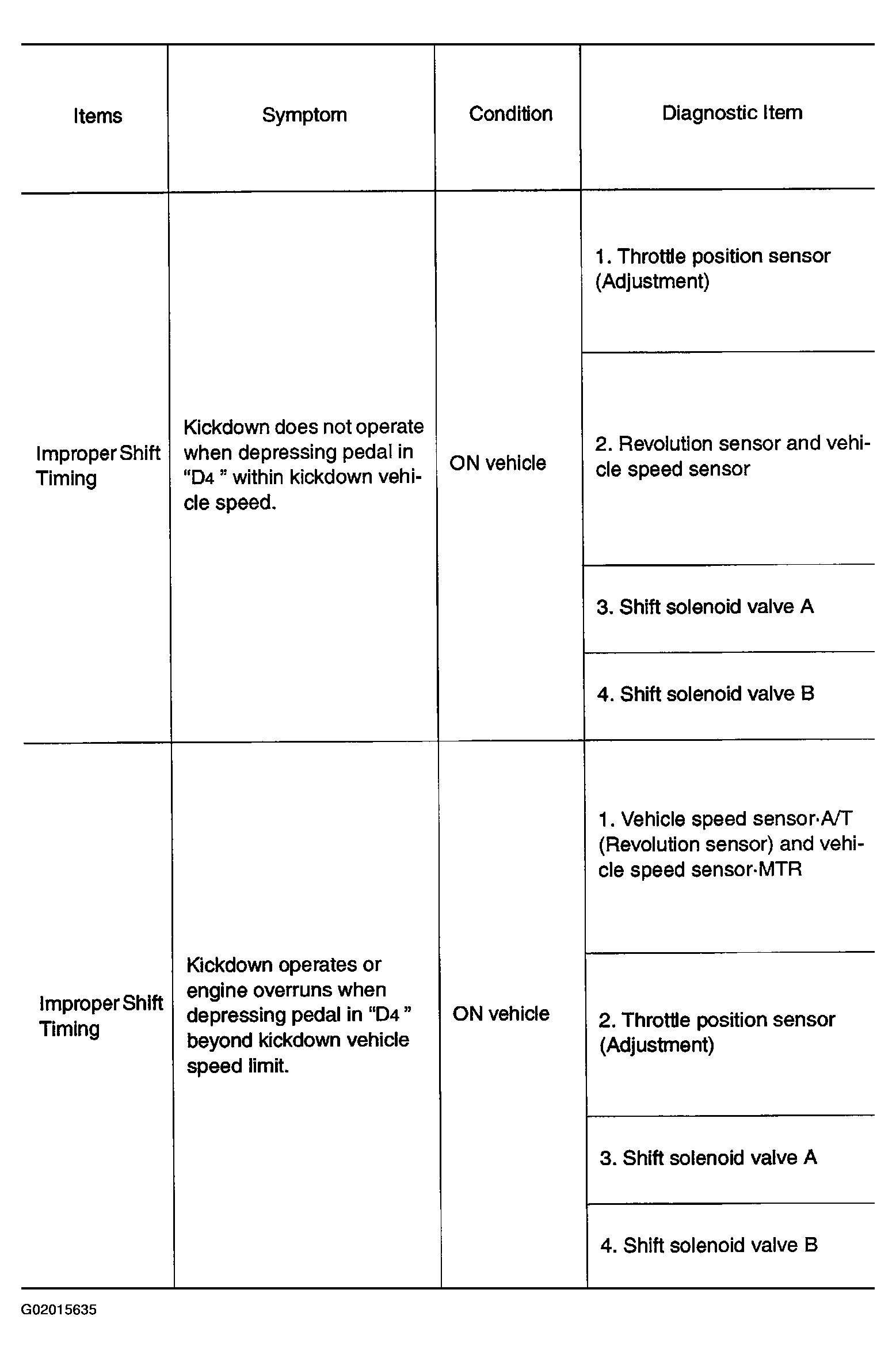

Fig 13: Isolating Causes Of Symptoms (13 Of 23)

G02015635

Courtesy of NISSAN MOTOR CO., U.S.A.

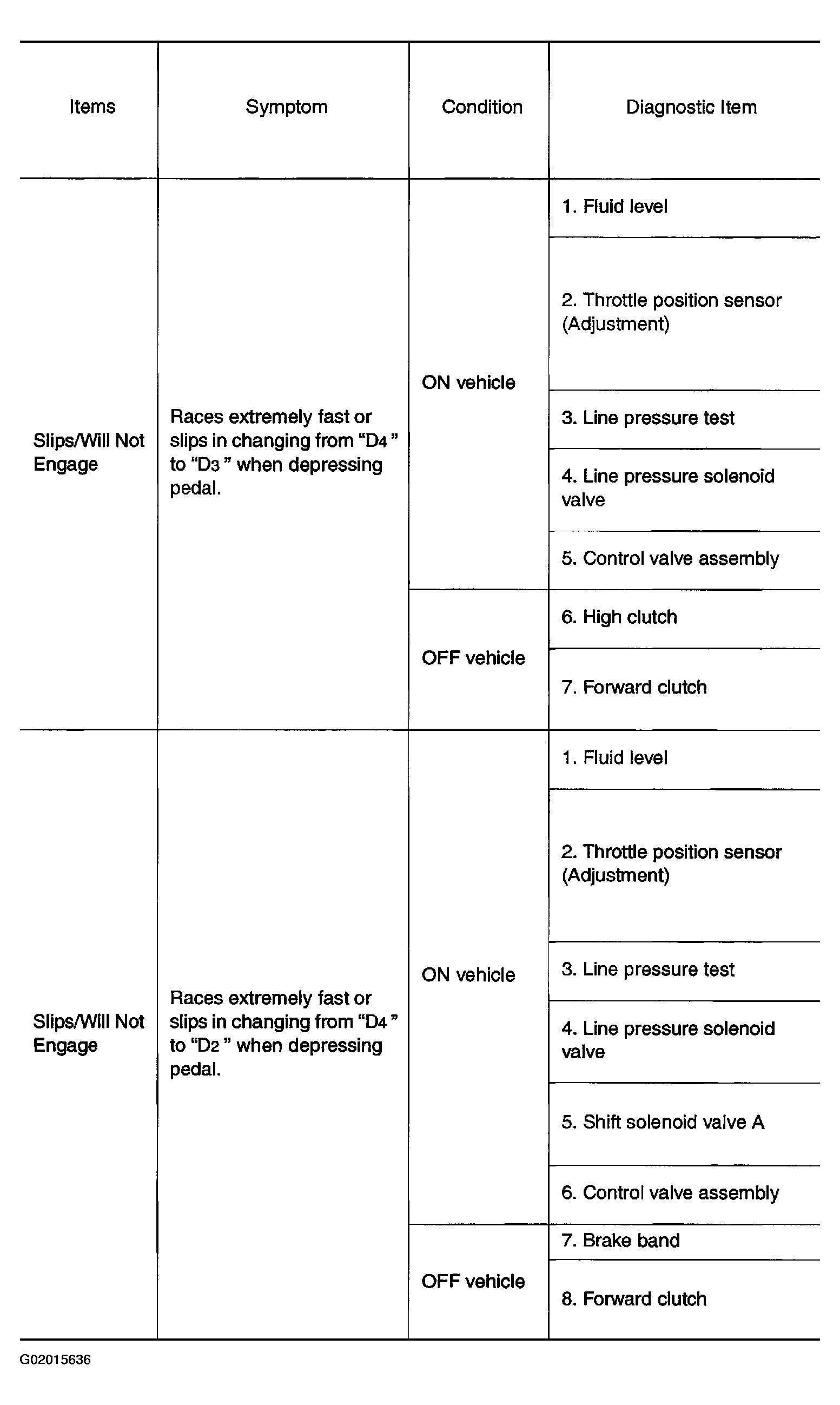

Fig 14: Isolating Causes Of Symptoms (14 Of 23)

G02015636

Courtesy of NISSAN MOTOR CO., U.S.A.

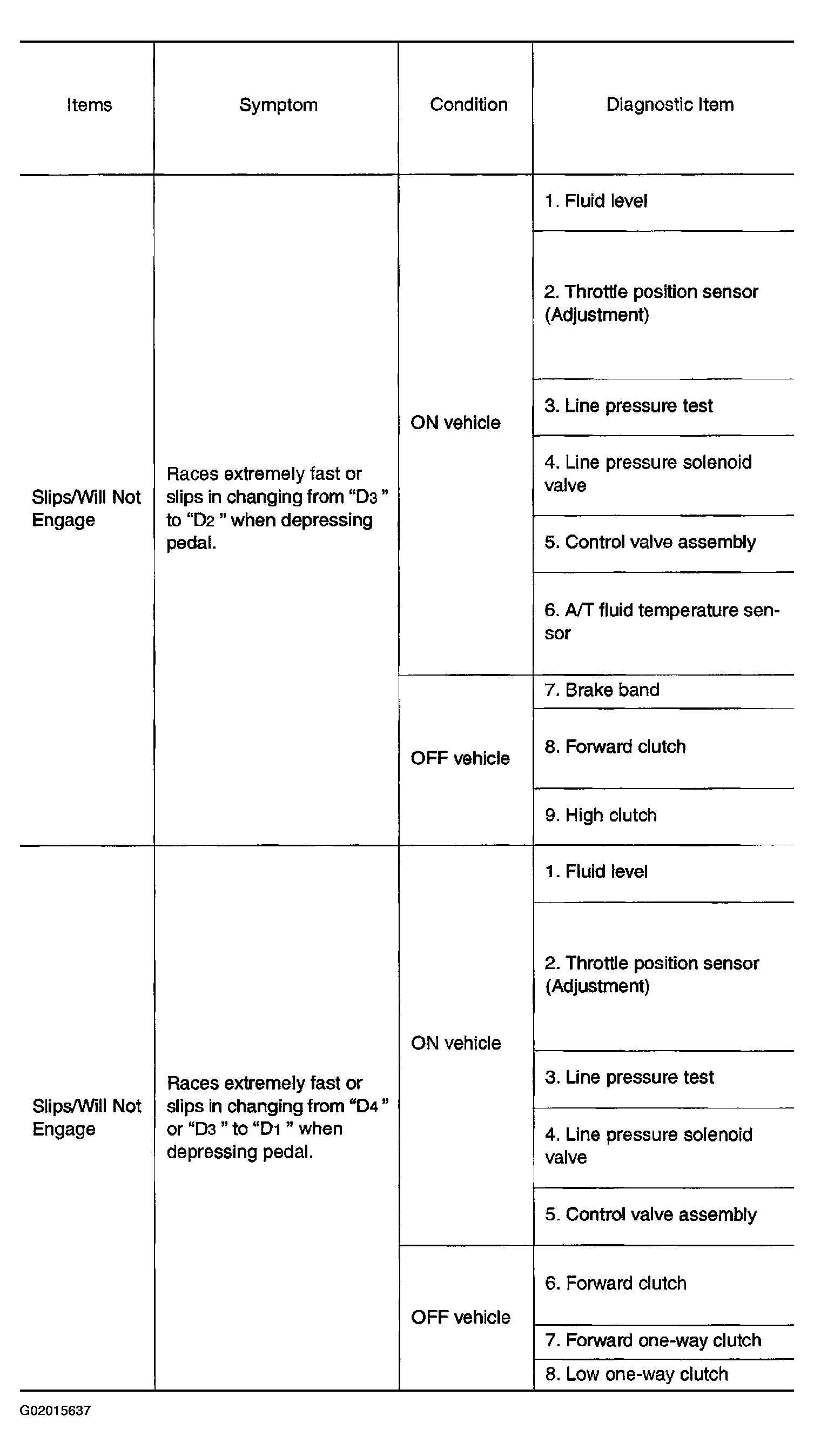

Fig 15: Isolating Causes Of Symptoms (15 Of 23)

G02015637

Courtesy of NISSAN MOTOR CO., U.S.A.

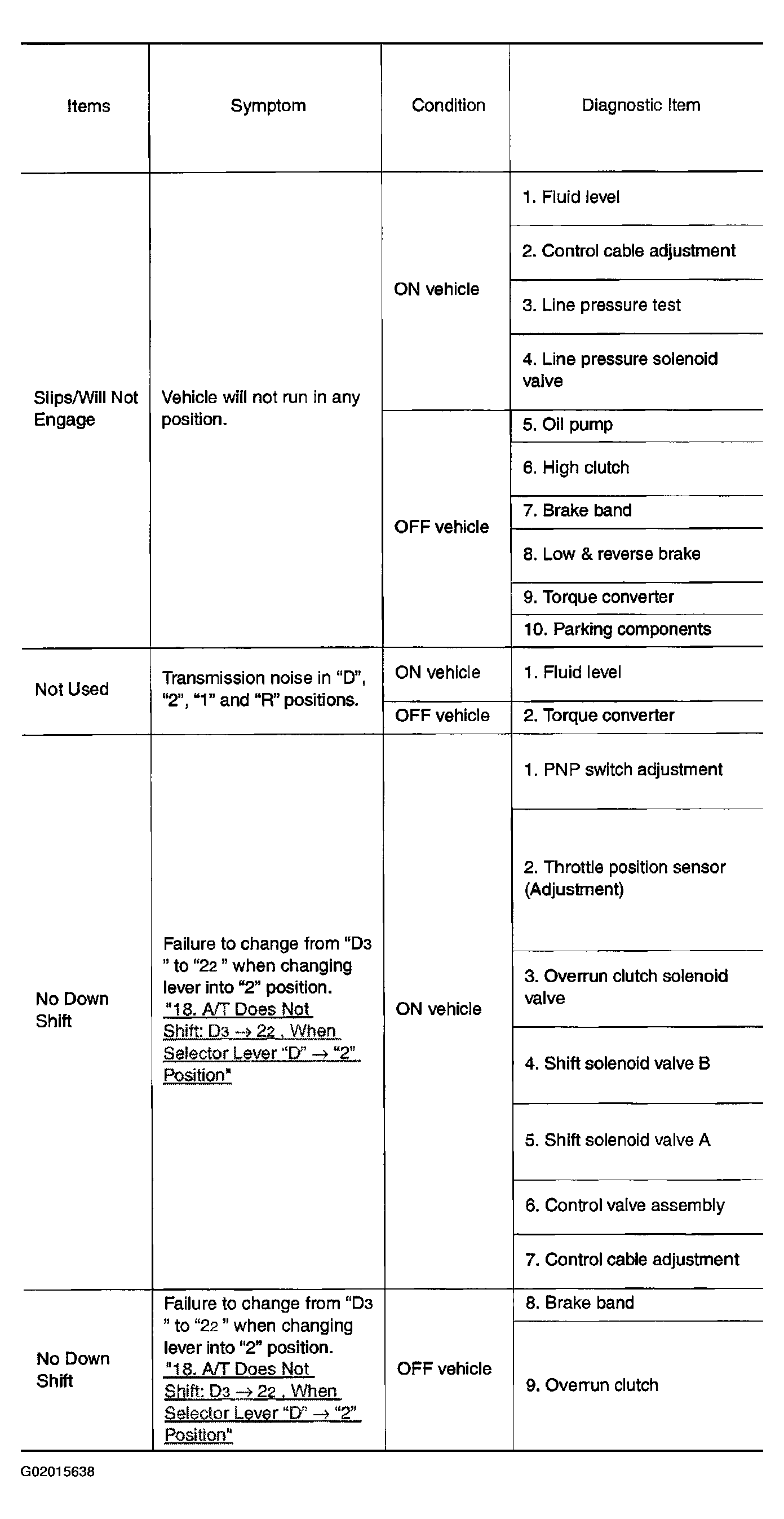

Fig 16: Isolating Causes Of Symptoms (16 Of 23)

G02015638

Courtesy of NISSAN MOTOR CO., U.S.A.

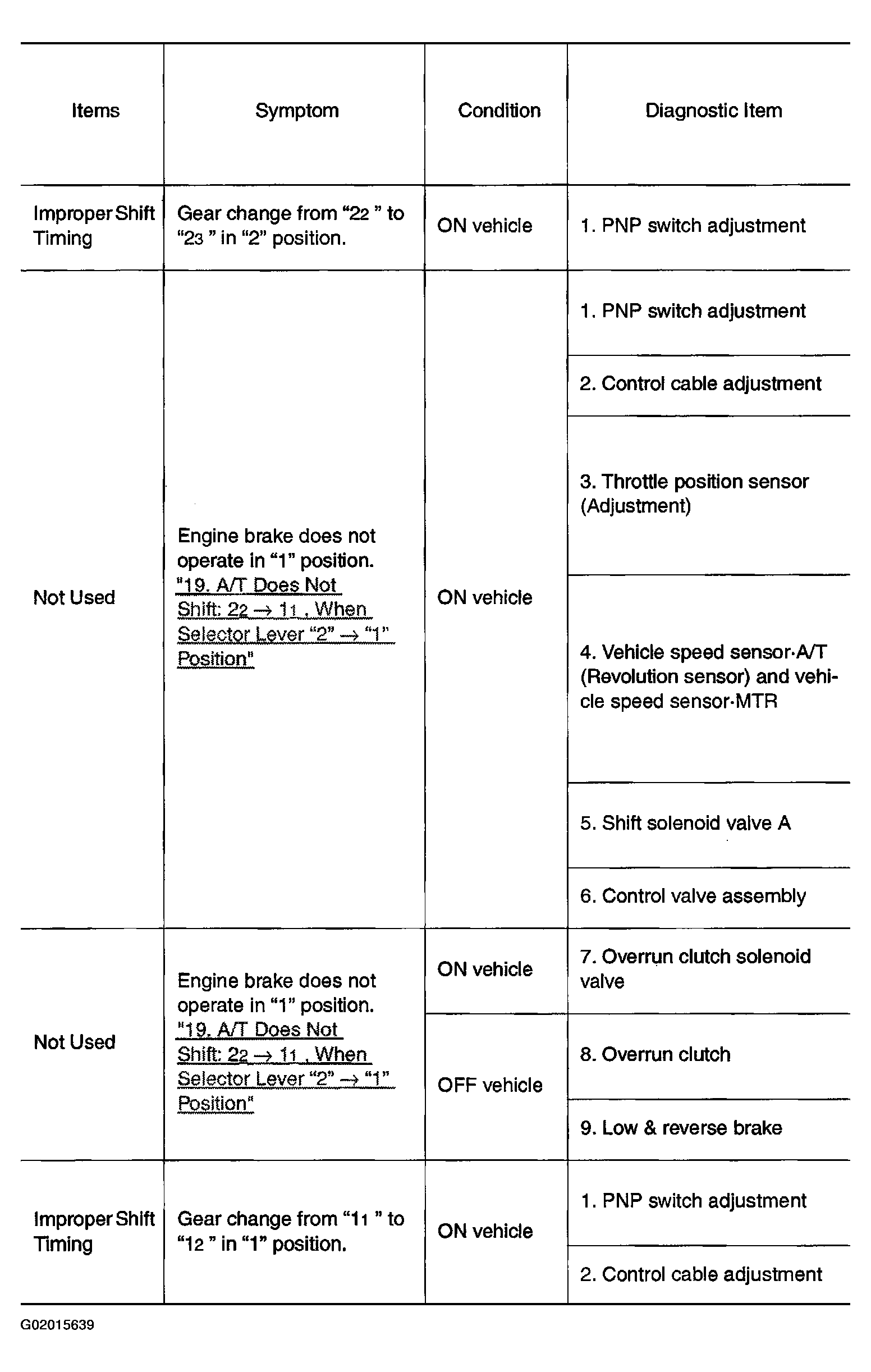

Fig 17: Isolating Causes Of Symptoms (17 Of 23)

G02015639

Courtesy of NISSAN MOTOR CO., U.S.A.

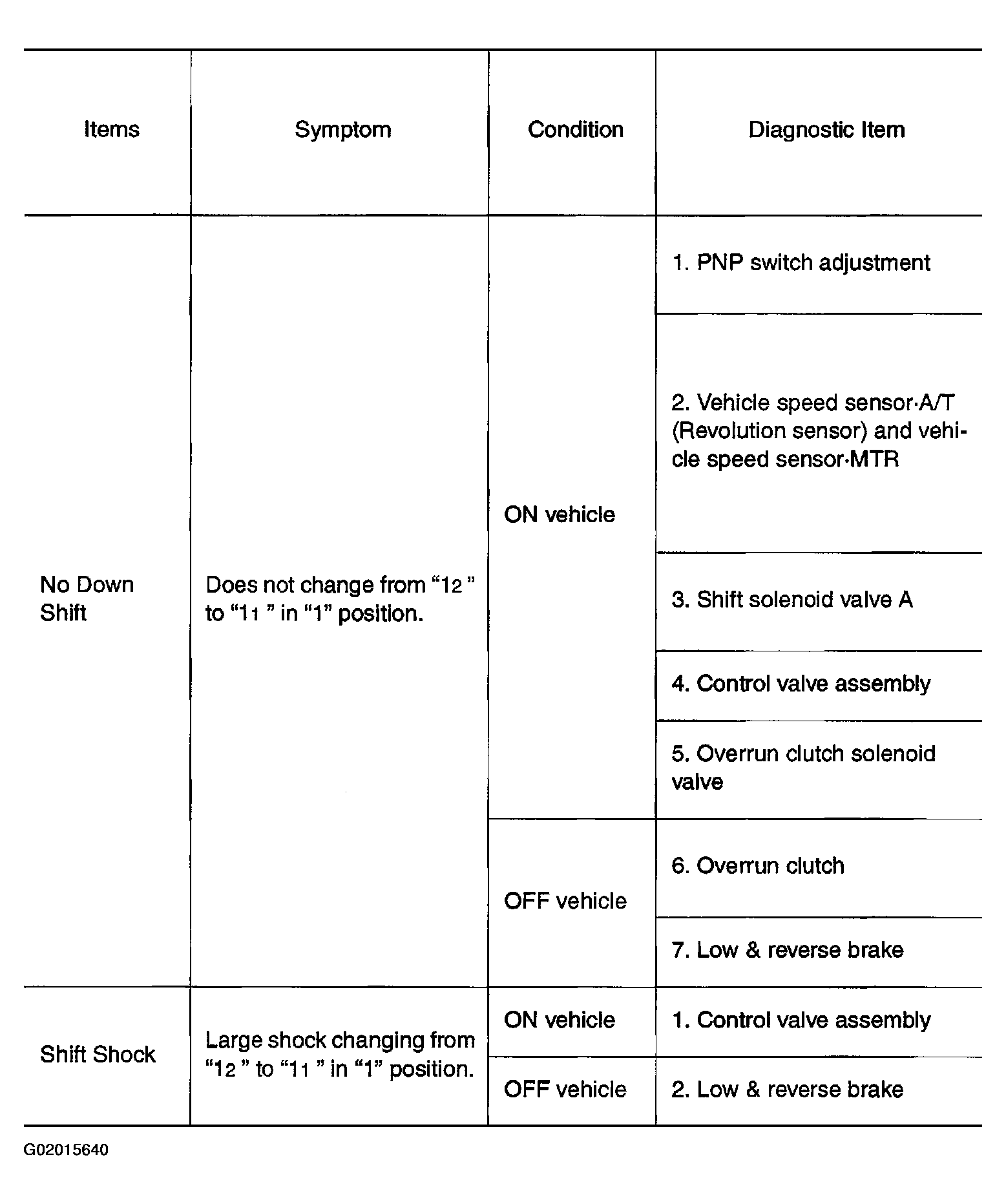

Fig 18: Isolating Causes Of Symptoms (18 Of 23)

G02015640

Courtesy of NISSAN MOTOR CO., U.S.A.

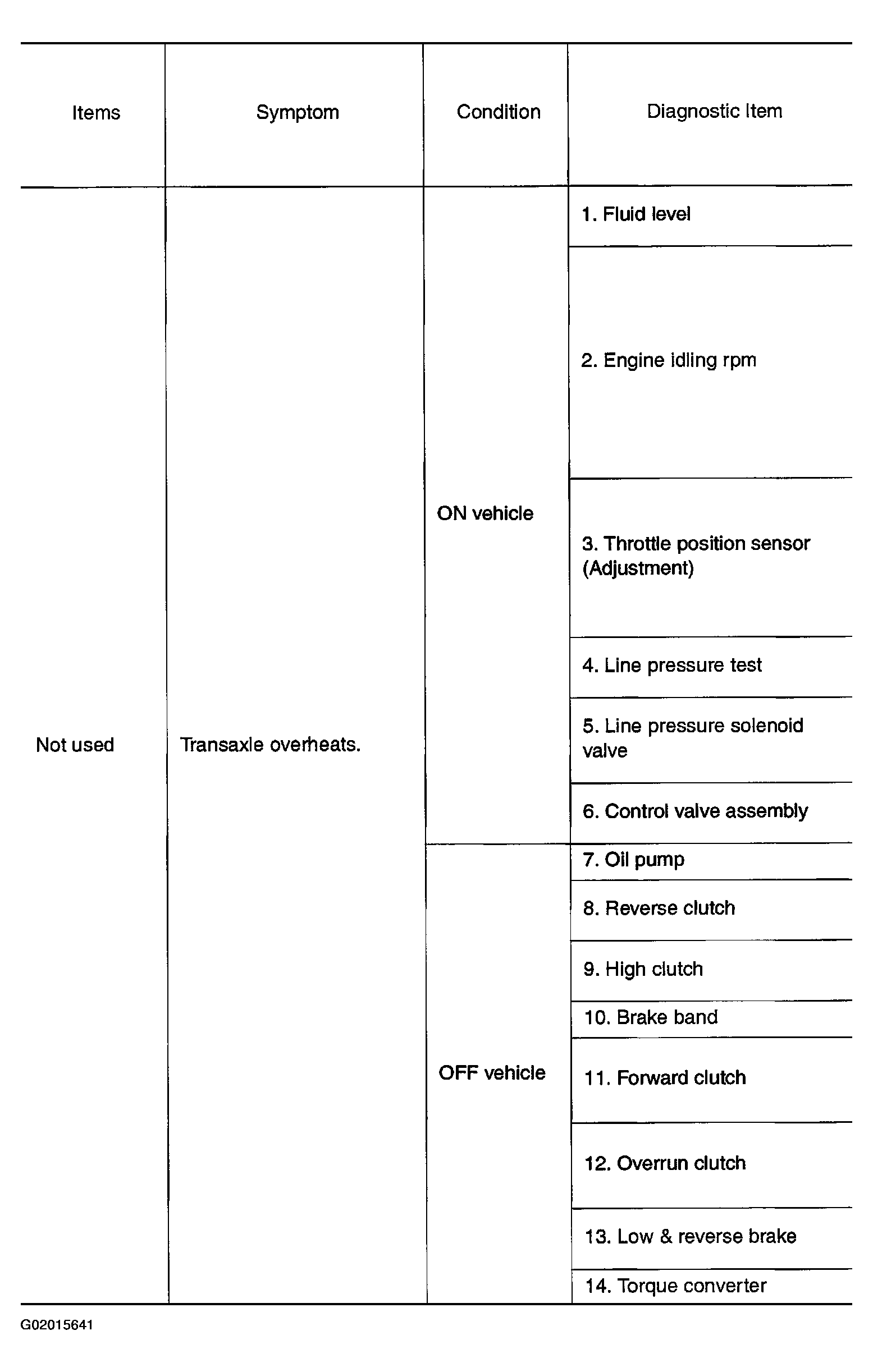

Fig 19: Isolating Causes Of Symptoms (19 Of 23)

G02015641

Courtesy of NISSAN MOTOR CO., U.S.A.

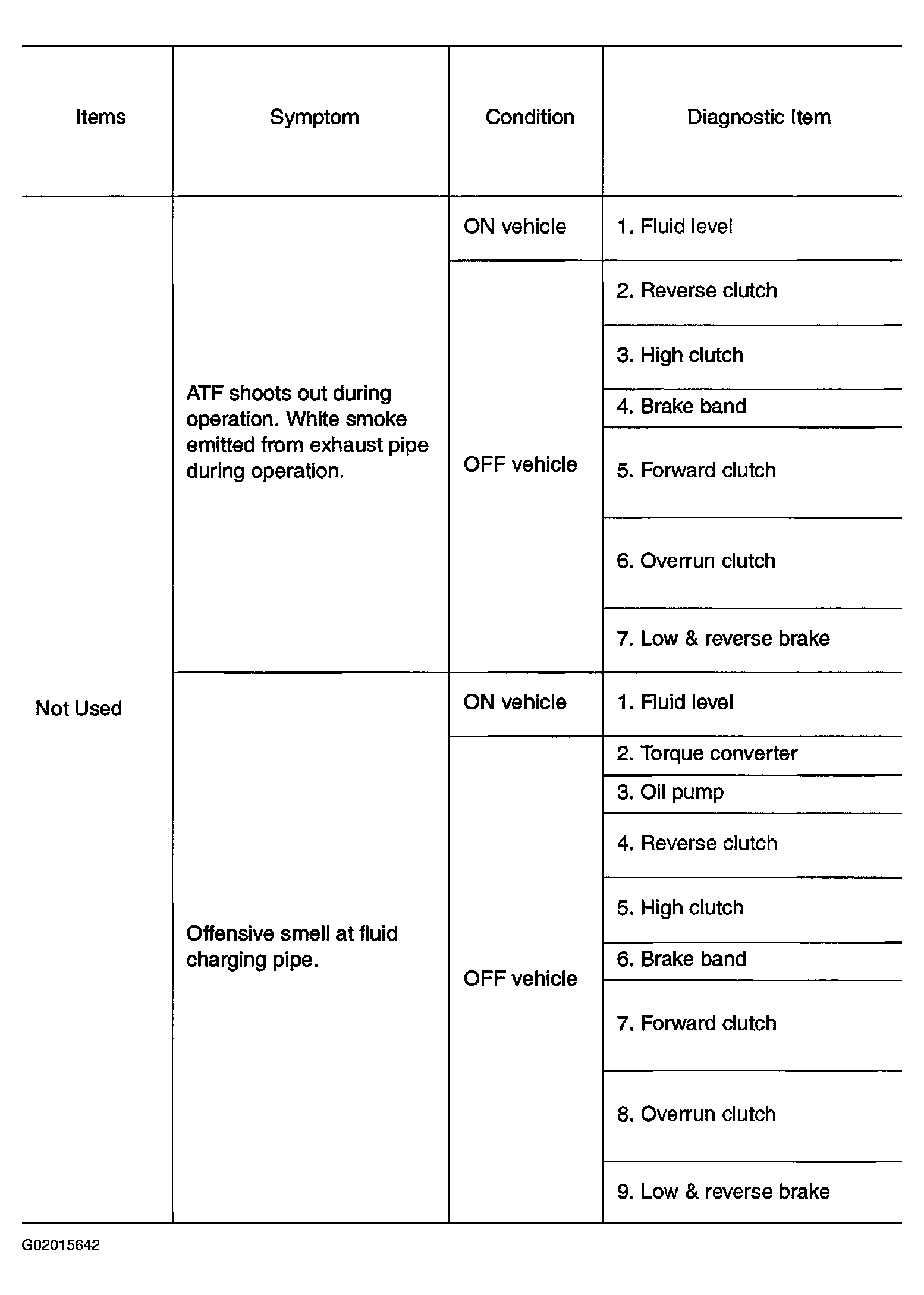

Fig 20: Isolating Causes Of Symptoms (20 Of 23)

G02015642

Courtesy of NISSAN MOTOR CO., U.S.A.

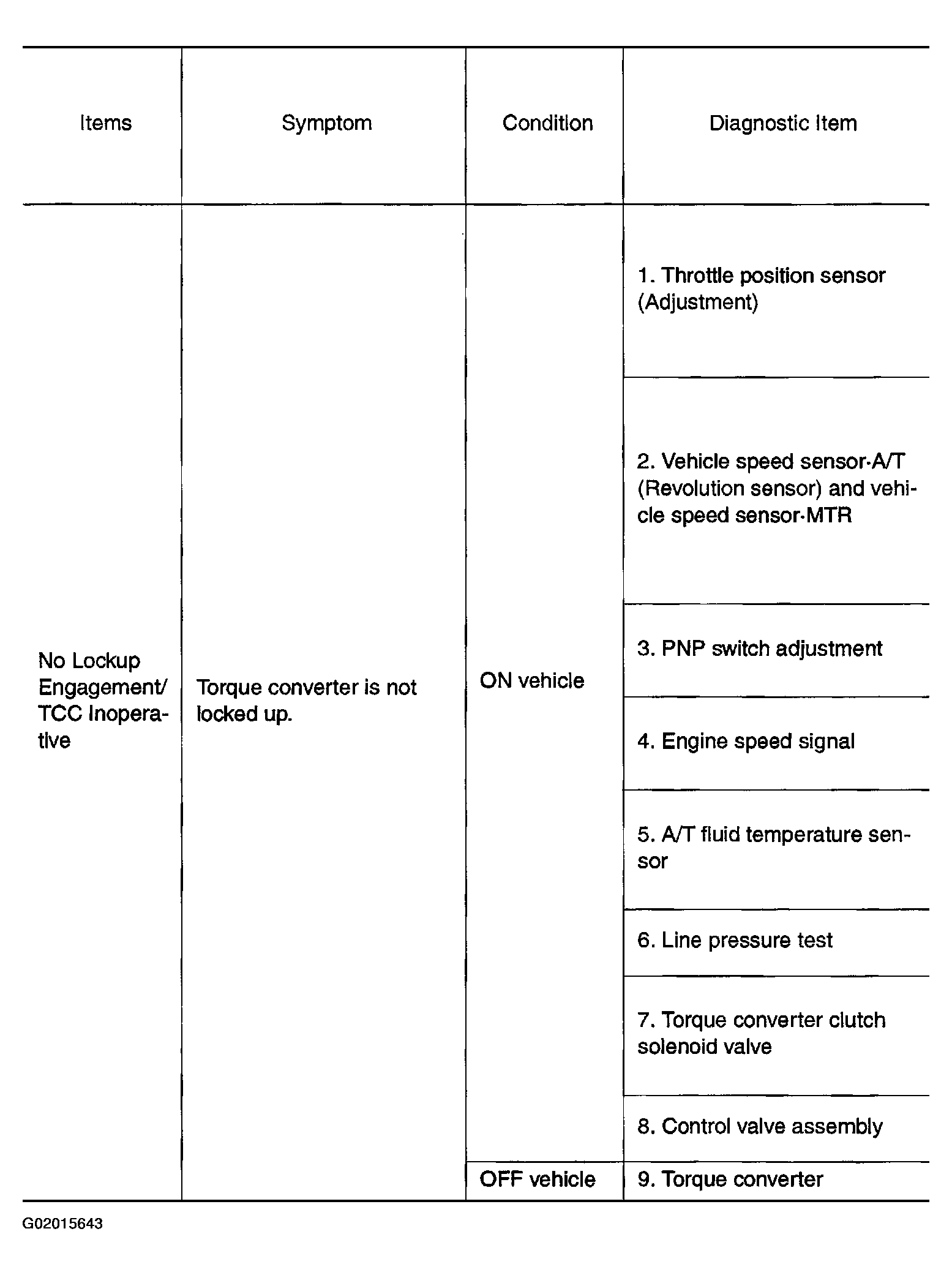

Fig 21: Isolating Causes Of Symptoms (21 Of 23)

G02015643

Courtesy of NISSAN MOTOR CO., U.S.A.

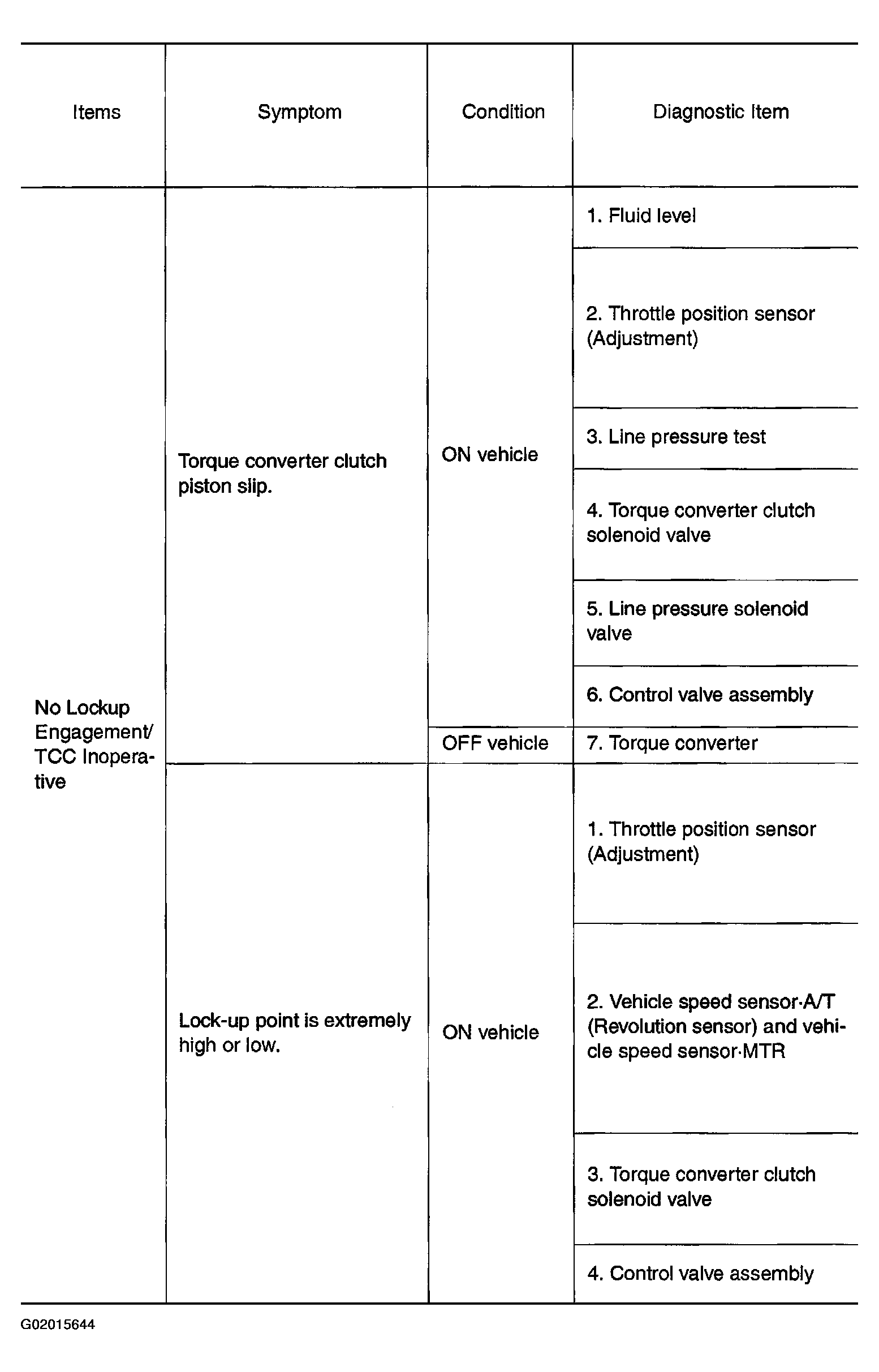

Fig 22: Isolating Causes Of Symptoms (22 Of 23)

G02015644

Courtesy of NISSAN MOTOR CO., U.S.A.

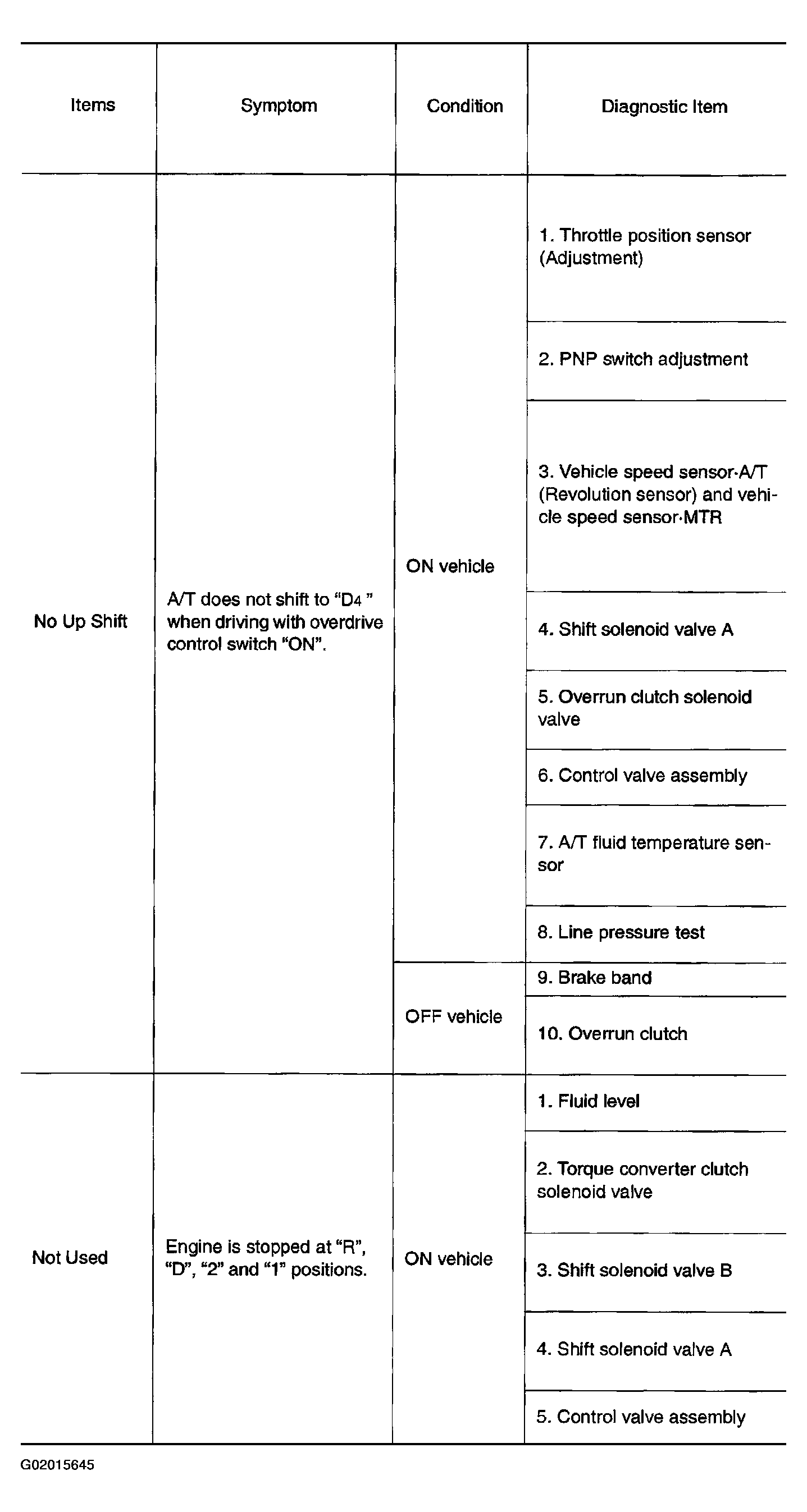

Fig 23: Isolating Causes Of Symptoms (23 Of 23)

G02015645

Courtesy of NISSAN MOTOR CO., U.S.A.
