Line Pressure Test Ports

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Location of line pressure test ports are shown in Fig 1.

Always replace pressure plugs as they are self-sealing bolts .

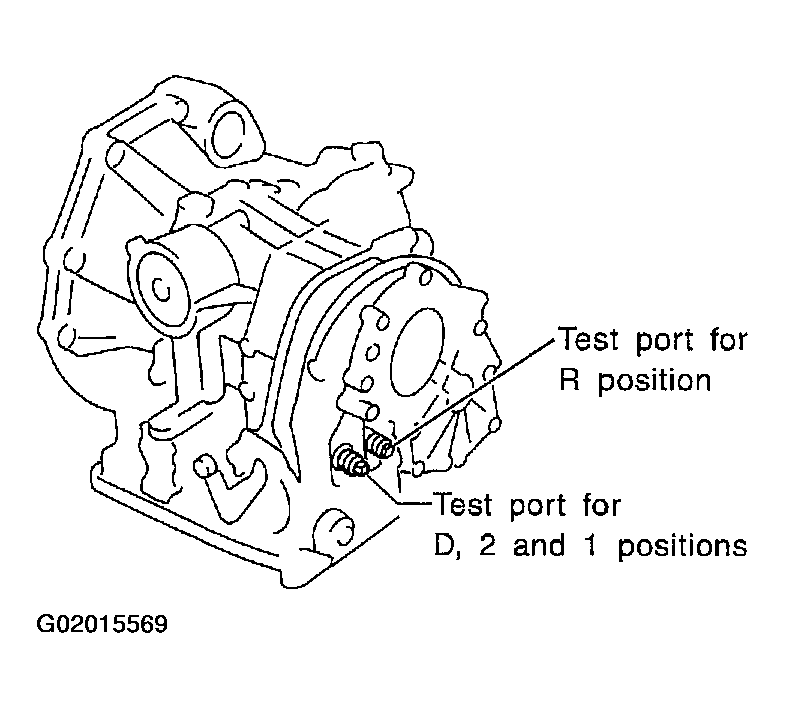

Fig 1: Locating Line Pressure Test Ports
Courtesy of NISSAN MOTOR CO., U.S.A.
