Symptom:

A/T does not shift from D1 to D2 at the specified speed  .

A/T does not shift from D4 to D2 when depressing accelerator pedal fully at the specified speed  .

1. CHECK SYMPTOM

   Are 7. Vehicle Does Not Creep Forward In D, 2 Or 1 Position and 8. Vehicle Cannot Be Started From D1 OK?

   Yes or No

   1. Yes: GO TO 2.
   2. No: Go to 7. VEHICLE DOES NOT CREEP FORWARD IN D , 2 OR 1 POSITION  , 8. VEHICLE CANNOT BE STARTED FROM D1 .

2. CHECK PNP SWITCH CIRCUIT

   With CONSULT-II

   Does TCM INPUT SIGNALS in DATA MONITOR show damage to PNP switch circuit?

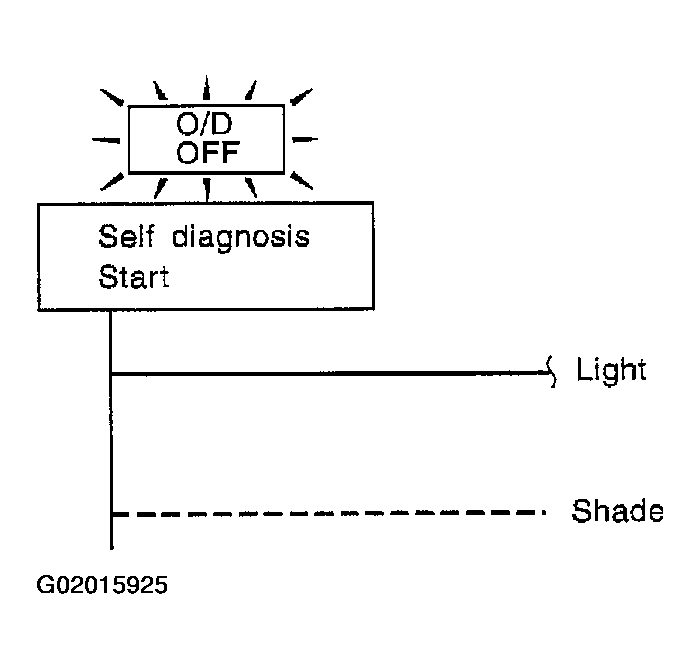

   Fig 1: Checking PNP Switch Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Without CONSULT-II

   Does self-diagnosis show damage to PNP switch circuit?

   Yes or No

   1. Yes: Check PNP switch circuit. Refer to DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH .
   2. No: GO TO 3.

3. CHECK VEHICLE SPEED SENSOR.A/T AND CHECK VEHICLE SPEED SENSOR.MTR CIRCUIT

   Check vehicle speed SENSOR.A/T (revolution sensor) and vehicle speed SENSOR.MTR circuit. Refer to DTC P0720 VEHICLE SPEED SENSOR.A/T (REVOLUTION SENSOR)  , DTC VHCL SPEED SEN.MTR VEHICLE SPEED SENSOR.MTR .

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace vehicle speed SENSOR.A/T (revolution sensor) and vehicle speed SENSOR.MTR circuits.

4. CHECK THROTTLE POSITION SENSOR

   Check throttle position sensor. Refer to DTC P0121, DTC P0122 OR DTC P0123: TP SENSOR , or DTC P0121, DTC P0122 OR DTC P0123: THROTTLE POSITION SENSOR (TP) .

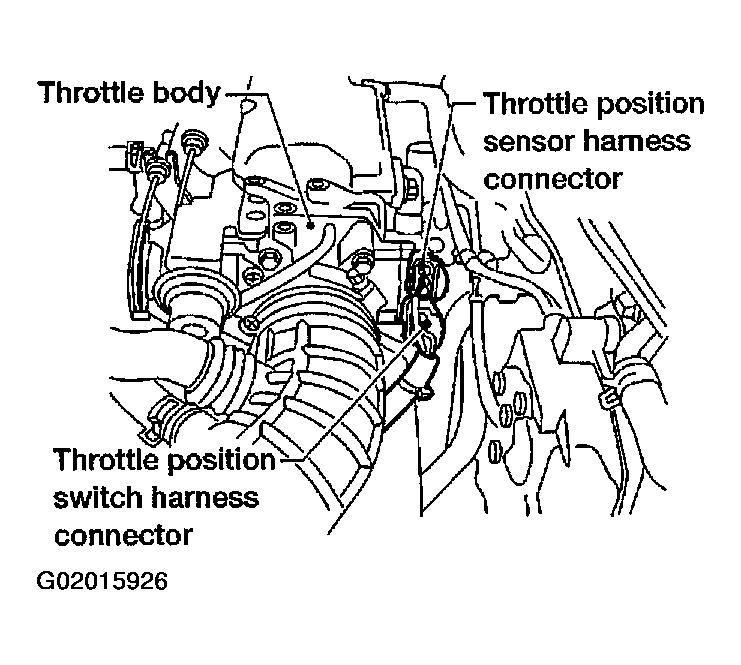

   Fig 2: Locating Throttle Position Sensor Components

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 5.
   2. NG: Repair or replace throttle position sensor.

5. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.
      Fig 3: Checking Automatic Transaxle Fluid Condition

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 6.
   2. NG: GO TO  8.

6. DETECT MALFUNCTIONING ITEM
   1. Remove control valve. Refer to REMOVAL .
   2. Check the following items:
      • Shift valve A
      • Shift solenoid valve A
      • Pilot valve
      • Pilot filter

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.

7. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG:
      1. Perform TCM input/output signal inspection.
      2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

8. DETECT MALFUNCTIONING ITEM
   1. Remove control valve. Refer to REMOVAL .
   2. Check the following items:
      • Shift valve A
      • Shift solenoid valve A
      • Pilot valve
      • Pilot filter
   3. Disassemble A/T.
   4. Check the following items:
      • Servo piston assembly
      • Brake band
      • Oil pump assembly

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
