Symptom:

Vehicle cannot be started from D1 on Cruise Test - Part 1  .

1. CHECK SYMPTOM

   Is 6. Vehicle Does Not Creep Backward In R Position OK?

   Yes or No

   1. Yes: GO TO 2.
   2. No: Go to 6. VEHICLE DOES NOT CREEP BACKWARD IN R POSITION .

2. CHECK SELF-DIAGNOSTIC RESULTS

   Does self-diagnosis show damage to vehicle speed sensor. A/T (revolution sensor), shift solenoid valve A, B or vehicle speed sensor. MTR after cruise test?

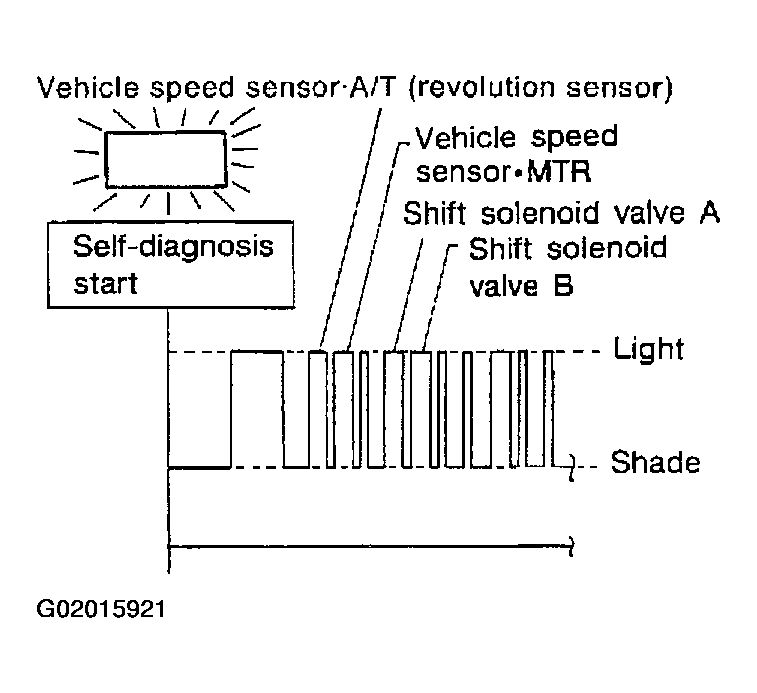

   Fig 1: Checking Self-Diagnostic Result

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Yes or No

   1. Yes: Check damaged circuit. Refer to DTC P0720 VEHICLE SPEED SENSOR.A/T (REVOLUTION SENSOR)  , DTC P0750 SHIFT SOLENOID VALVE A  , DTC P0755 SHIFT SOLENOID VALVE B  or DTC VHCL SPEED SEN.MTR VEHICLE SPEED SENSOR.MTR .
   2. No: GO TO 3.

3. CHECK THROTTLE POSITION SENSOR

   Check throttle position sensor. Refer to DTC P0121, DTC P0122 OR DTC P0123: TP SENSOR , or DTC P0121, DTC P0122 OR DTC P0123: THROTTLE POSITION SENSOR (TP) .

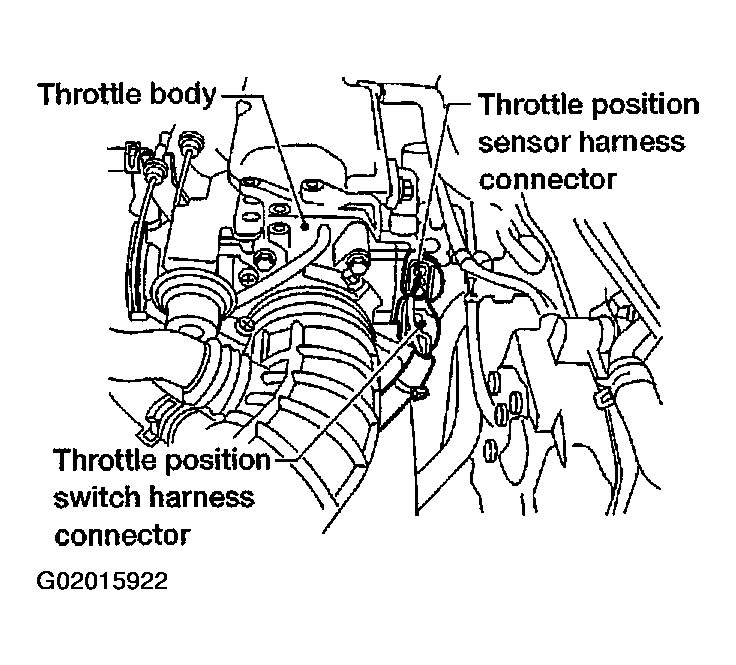

   Fig 2: Locating Throttle Position Sensor Components

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace throttle position sensor.

4. CHECK LINE PRESSURE

   Check line pressure at stall point with selector lever in D position. Refer to LINE PRESSURE TEST .

   Fig 3: Checking Line Pressure At Stall Point With Selector Lever In D Position

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 5.
   2. NG: GO TO  8.

5. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

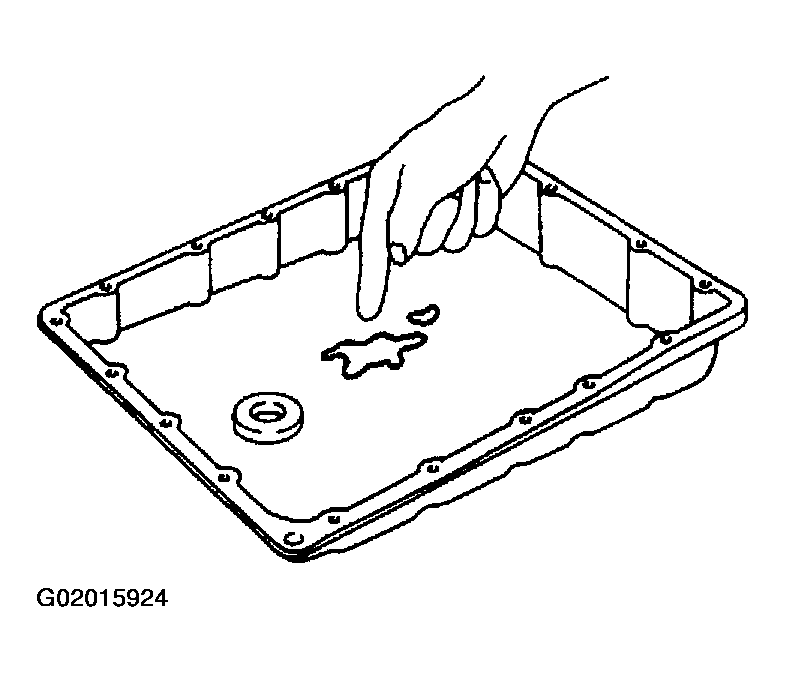

      Fig 4: Checking Automatic Transaxle Fluid Condition

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 6.
   2. NG: GO TO  8.

6. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to REMOVAL .
   2. Check the following items:
      • Shift valve A
      • Shift valve B
      • Shift solenoid valve A
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.

7. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG:
      1. Perform TCM input/output signal inspection.
      2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

8. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to REMOVAL .
   2. Check the following items:
      • Shift valve A
      • Shift valve B
      • Shift solenoid valve A
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter
   3. Disassemble A/T.
   4. Check the following items:
      • Forward clutch assembly
      • Forward one-way clutch
      • Low one-way clutch
      • High clutch assembly
      • Torque converter
      • Oil pump assembly

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
