Symptom:

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is good  .

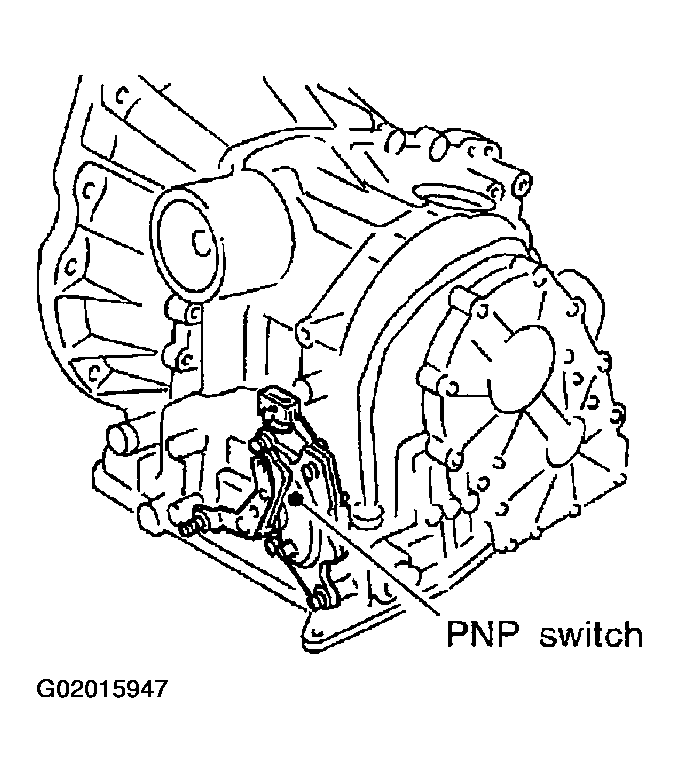

Fig 1: Locating PNP Switch
G02015947Courtesy of NISSAN MOTOR CO., U.S.A.
