Throttle Position Switch

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Closed throttle position switch (idle position)

Check continuity between terminals 5 and 6.
Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .

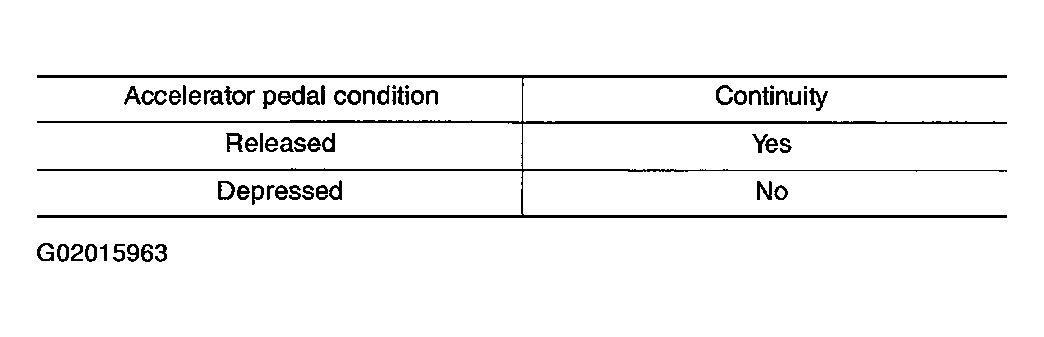

Fig 1: Closed Throttle Position Switch Continuity Specifications (Idle Position)
Courtesy of NISSAN MOTOR CO., U.S.A.

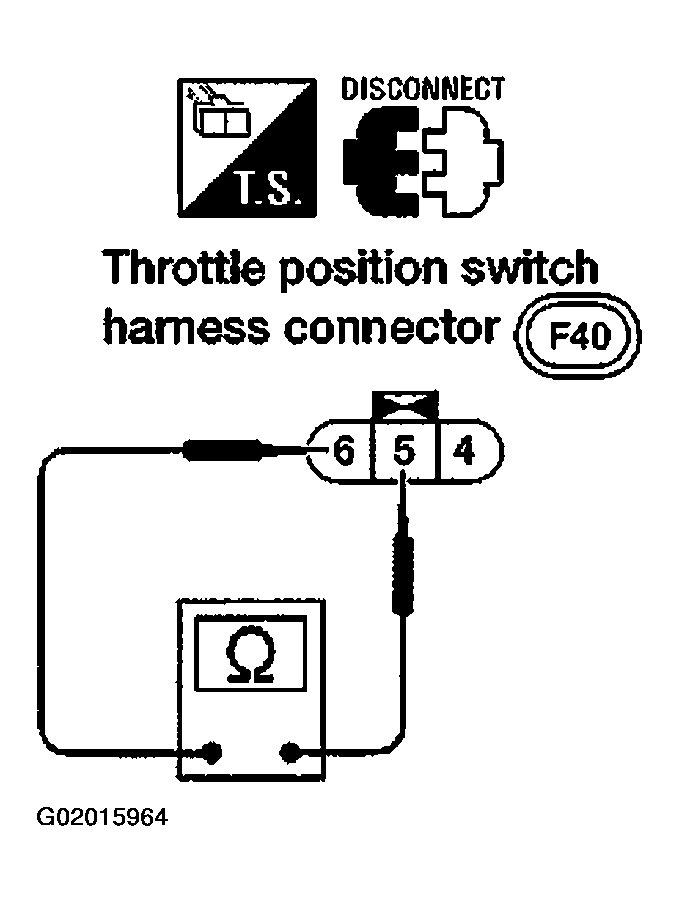

Fig 2: Checking Continuity Between Closed Throttle Position Switch Terminals (Idle Position)
Courtesy of NISSAN MOTOR CO., U.S.A.
To adjust closed throttle position switch, refer to P SWITCH [QG18DE (except Calif. CA Model)] or DTC P0510: CLOSED THROTTLE POSITION (TP) SWITCH/CIRCUIT .
Wide open throttle position switch
Check continuity between terminals 4 and 5.

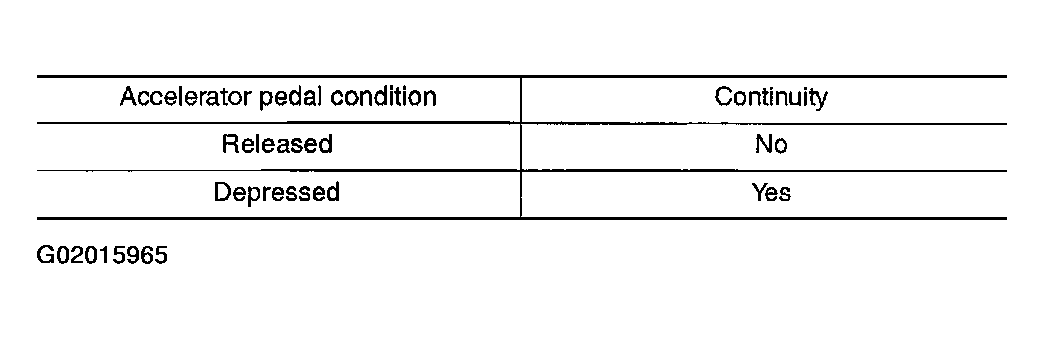

Fig 3: Wide Open Throttle Position Switch Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

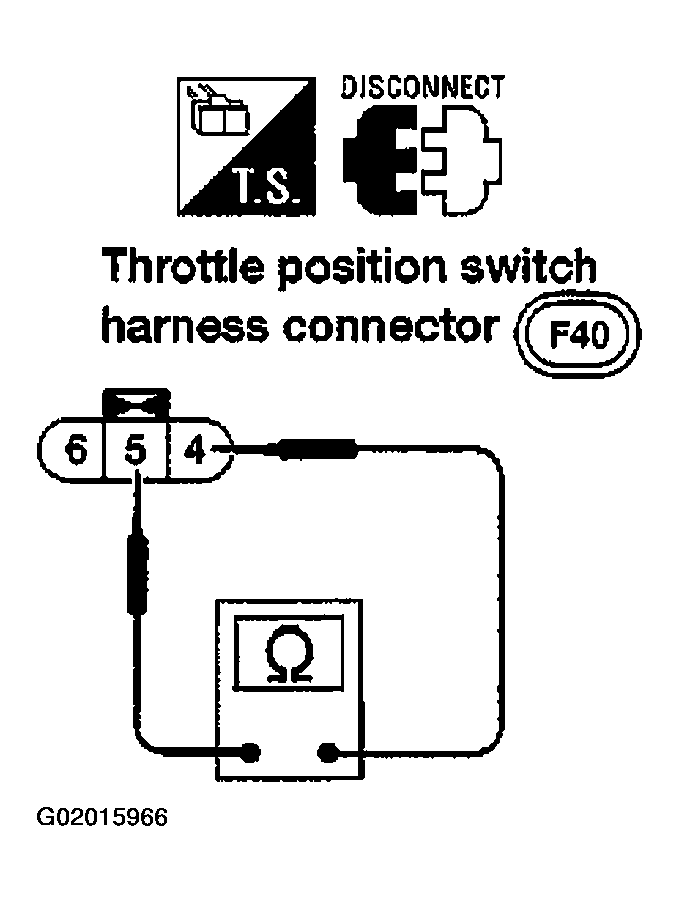

Fig 4: Checking Continuity Between Wide Open Throttle Position Switch Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
