PNP Switch

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals 1 and 2 and between terminals 3 and 4, 5, 6, 7, 8, 9 while moving manual shaft through each position.

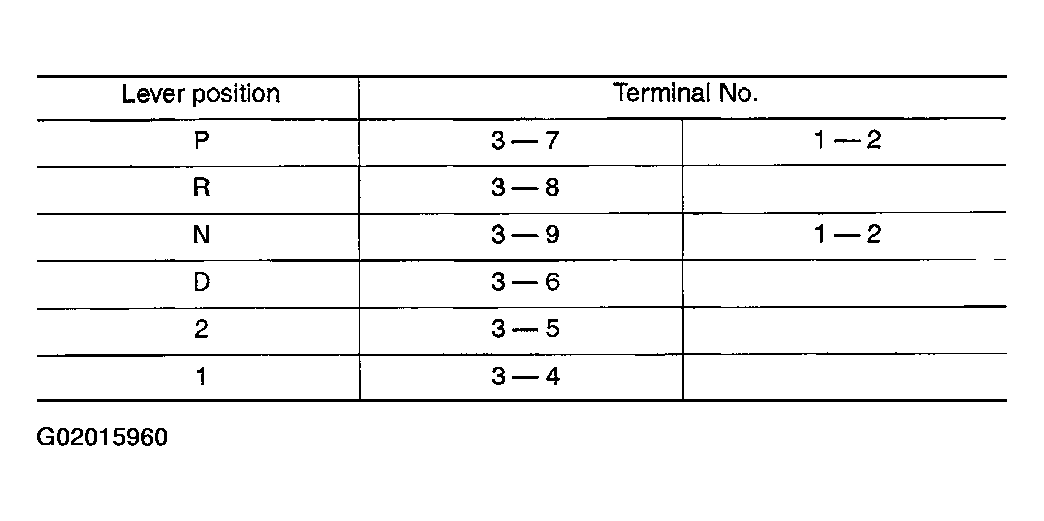

Fig 1: PNP Switch Terminal & Lever Position Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

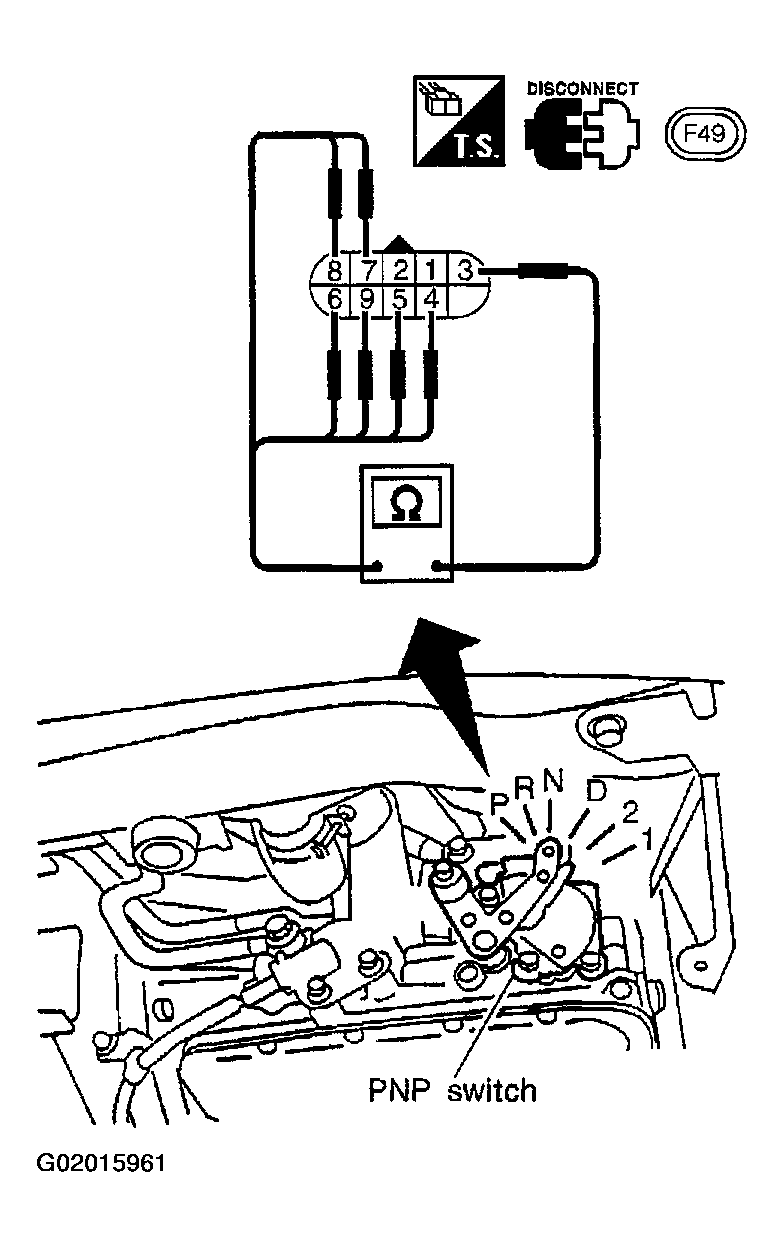

Fig 2: Checking Continuity Between PNP Switch Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, check again with manual control cable disconnected from manual shaft of A/T assembly. Refer to step 1.
If OK on step 2, adjust manual control cable. Refer to CONTROL CABLE ADJUSTMENT .

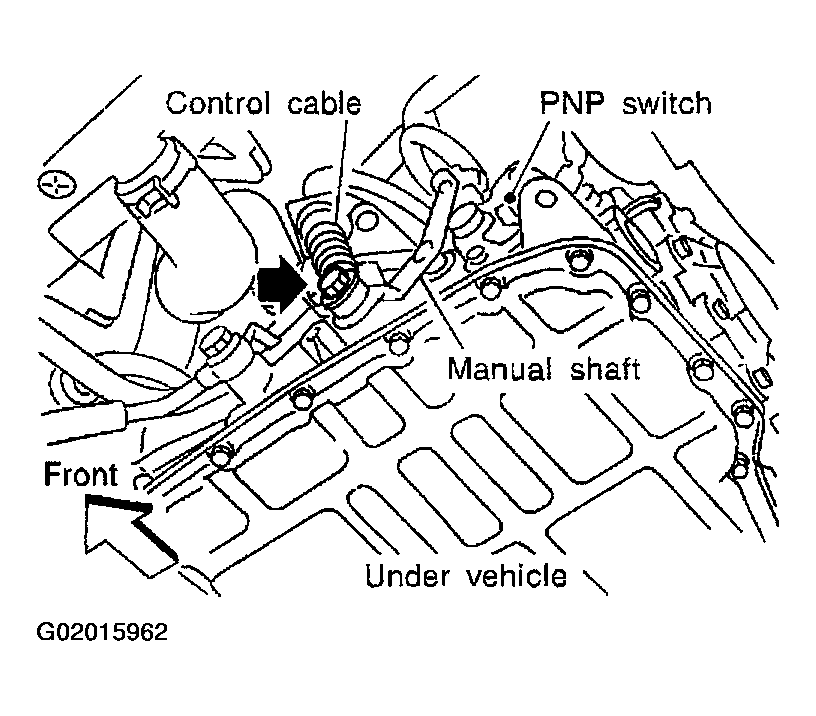

Fig 3: Locating PNP Switch Components
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG on step 2, remove PNP switch from A/T and check continuity of PNP switch terminals. Refer to step 1.
If OK on step 4, adjust PNP switch. Refer to PARK/NEUTRAL POSITION (PNP) SWITCH ADJUSTMENT .
If NG on step 4, replace PNP switch.
