Rear Internal Gear, Forward Clutch Hub And Overrun Clutch Hub: Disassembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Remove snap ring from overrun clutch hub.
Remove overrun clutch hub from forward clutch hub.

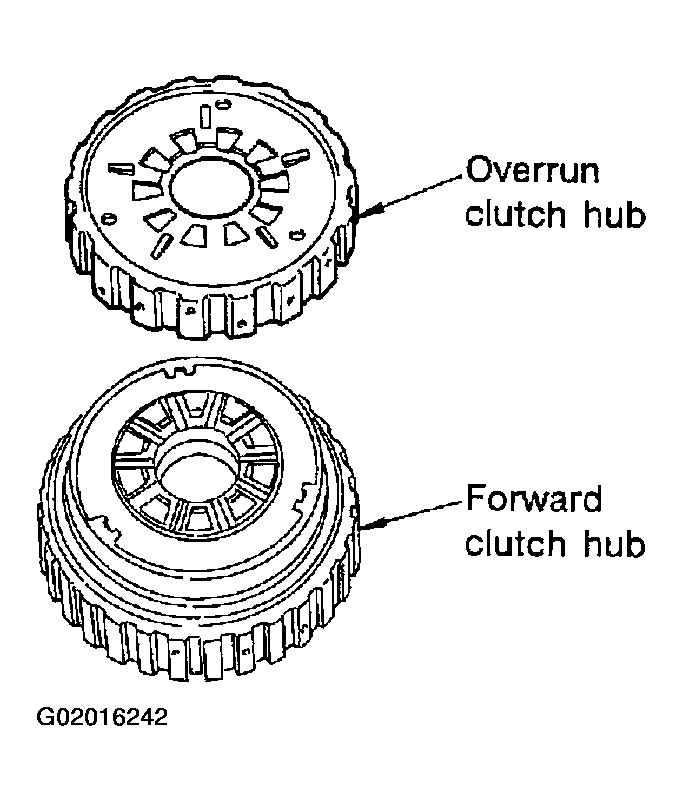

Fig 1: Removing Overrun Clutch Hub From Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove thrust washer from forward clutch hub.

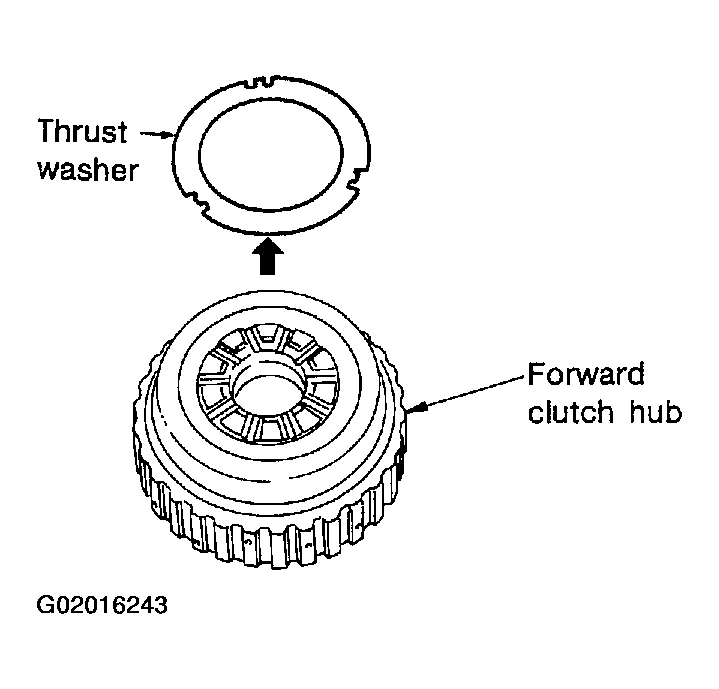

Fig 2: Removing Thrust Washer From Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove forward clutch hub from rear internal gear.

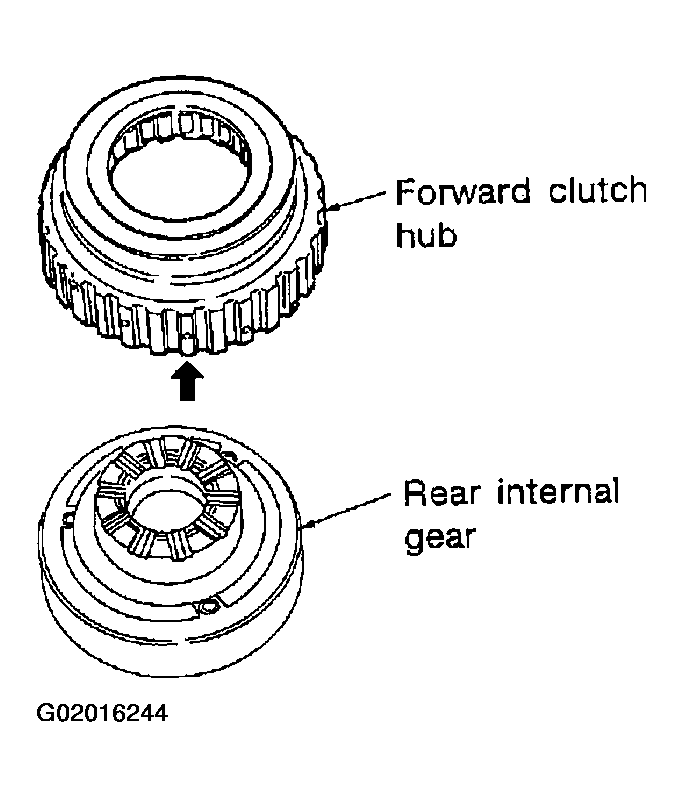

Fig 3: Removing Forward Clutch Hub From Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove end bearing from rear internal gear.

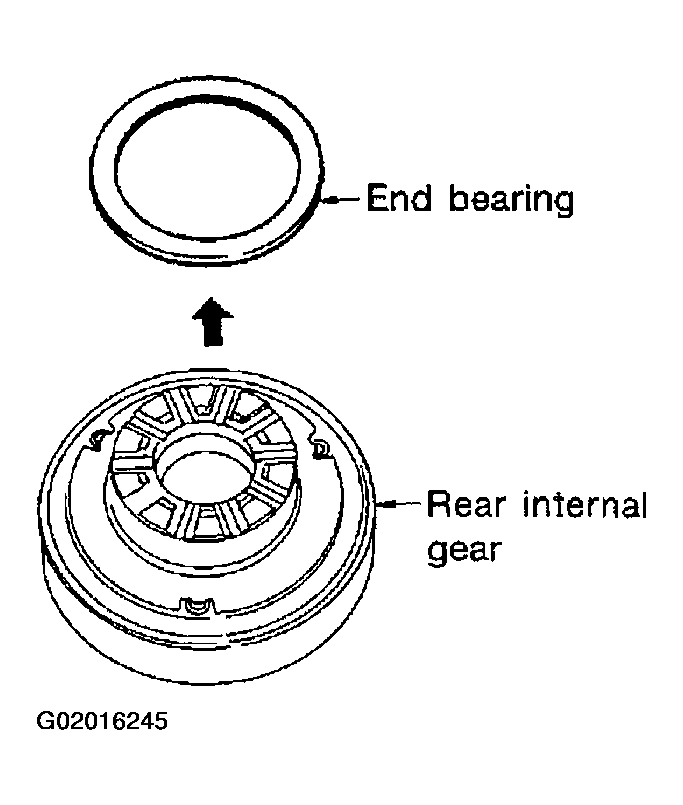

Fig 4: Removing End Bearing From Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove thrust washer from rear internal gear.

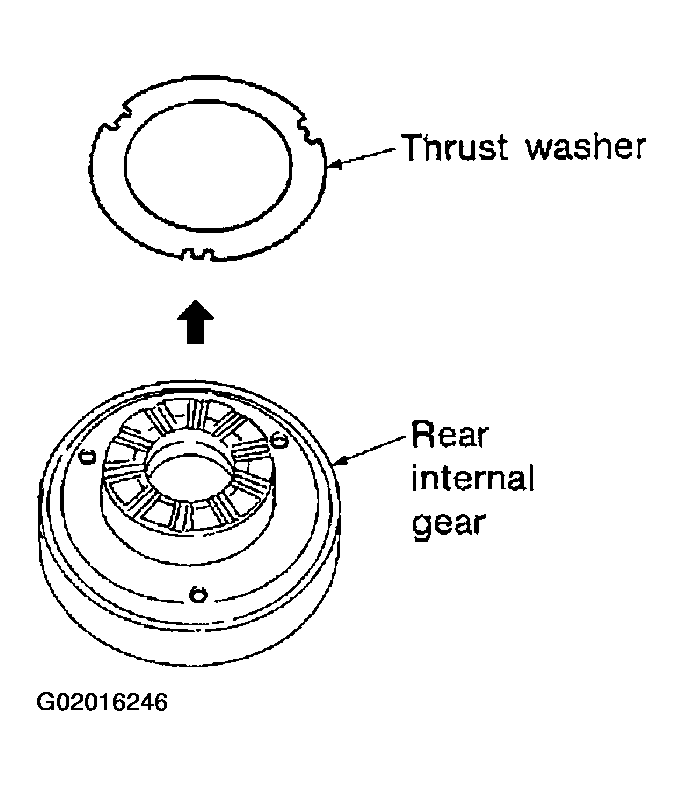

Fig 5: Removing Thrust Washer From Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove end bearing from forward one-way clutch.

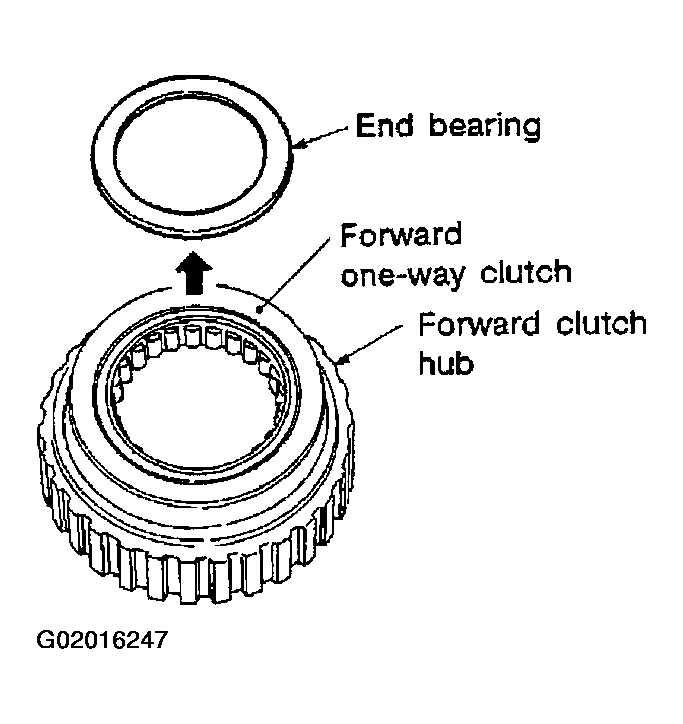

Fig 6: Removing End Bearing From Forward One-Way Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove one-way clutch from forward clutch hub.

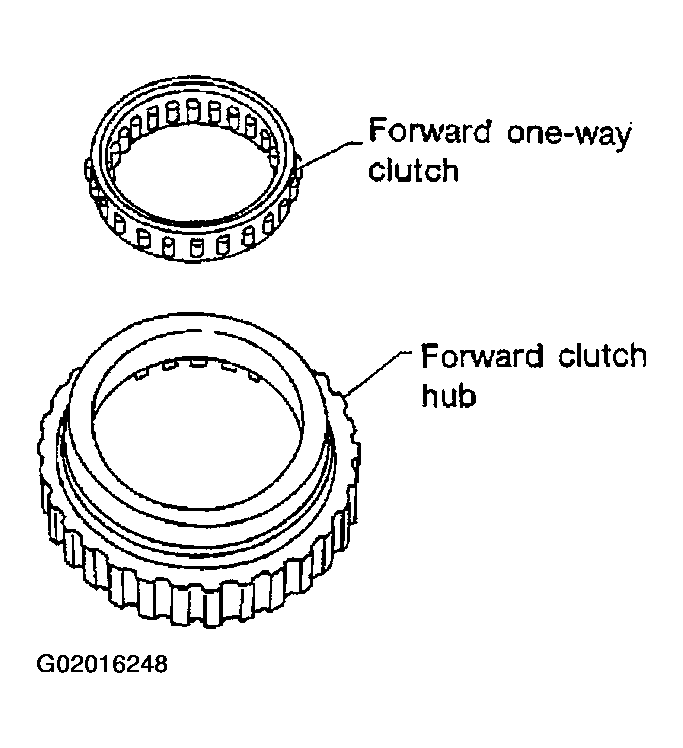

Fig 7: Removing One-Way Clutch From Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
