Rear Internal Gear, Forward Clutch Hub And Overrun Clutch Hub: Assembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install forward one-way clutch on forward clutch.
    • Take care with the direction of forward one-way clutch  .

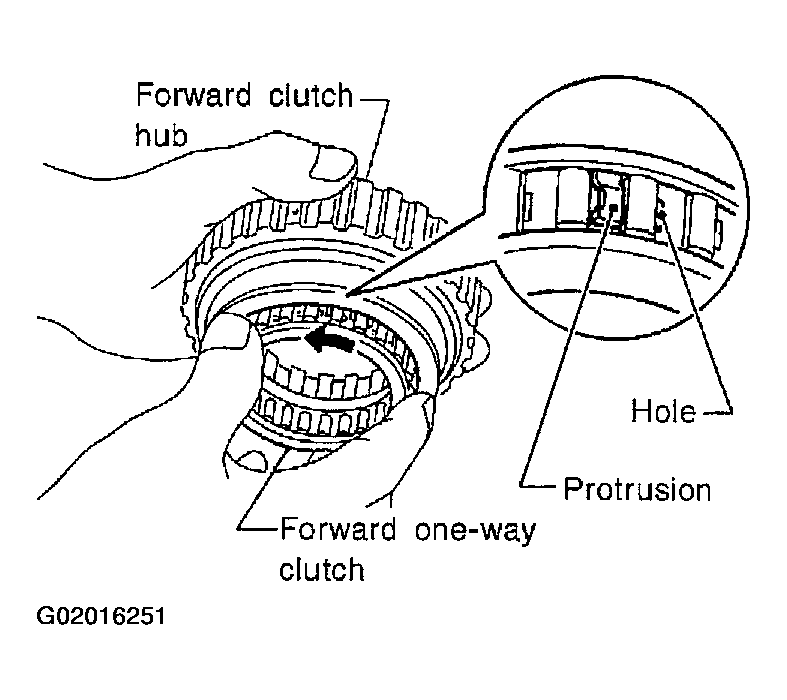

    Fig 1: Installing Forward One-Way Clutch On Forward Clutch Hub
    G02016251Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install end bearing on forward one-way clutch.
    • Apply petroleum jelly to end bearing  .

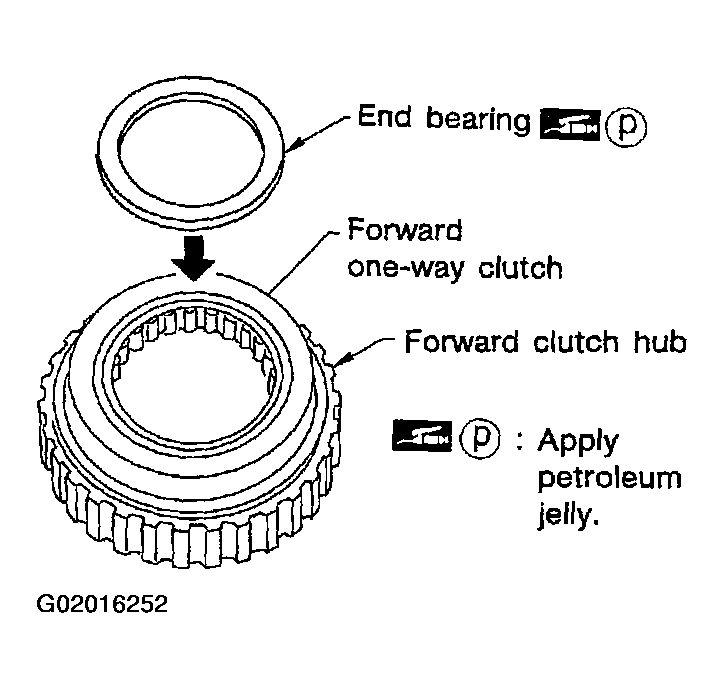

    Fig 2: Installing Bearing On Forward One-Way Clutch
    G02016252Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install thrust washer on rear internal gear.
    • Apply petroleum jelly to thrust washer  .
    • Align pawls of thrust washer with holes of rear internal gear  .

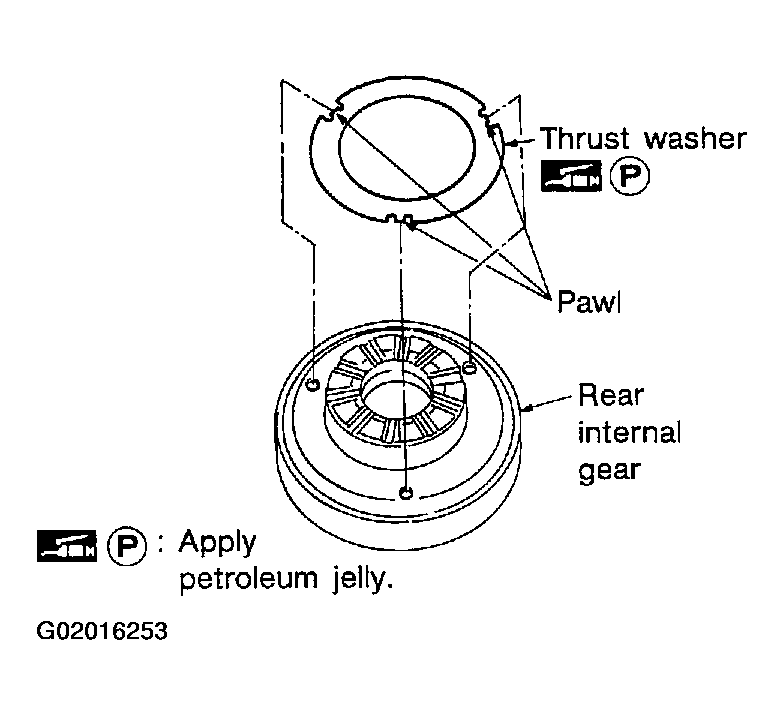

    Fig 3: Installing Thrust Washer On Rear Internal Gear
    G02016253Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install end bearing on rear internal gear.
    • Apply petroleum jelly to end bearing  .

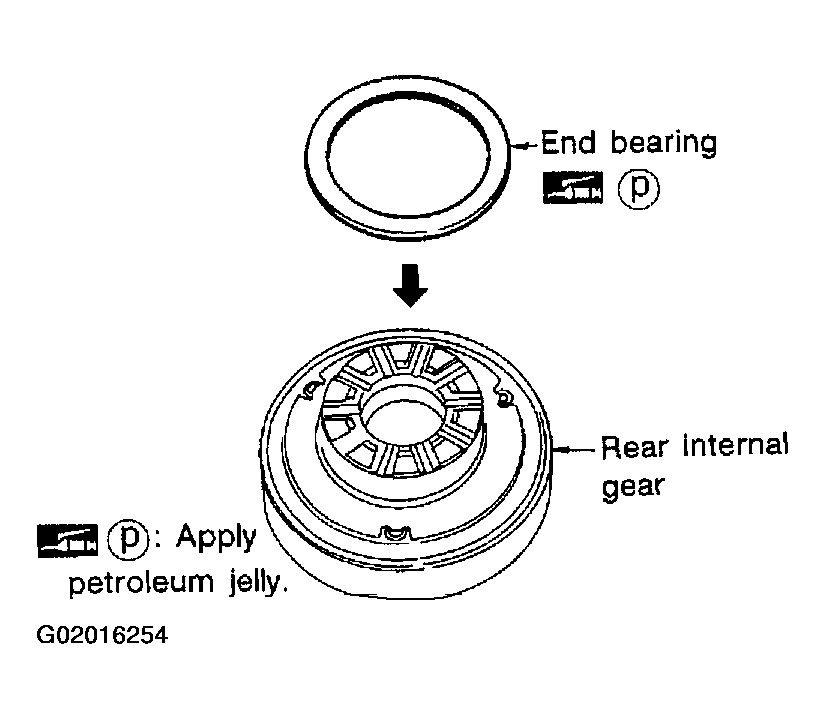

    Fig 4: Installing End Bearing On Rear Internal Gear
    G02016254Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install forward clutch hub on rear internal gear.
    • Check operation of forward one-way clutch. Hold rear internal gear and turn forward clutch hub. Check forward clutch hub for correct locking and unlocking directions  .
    • If not as shown in  Fig 5 , check installation direction of forward one-way clutch  .

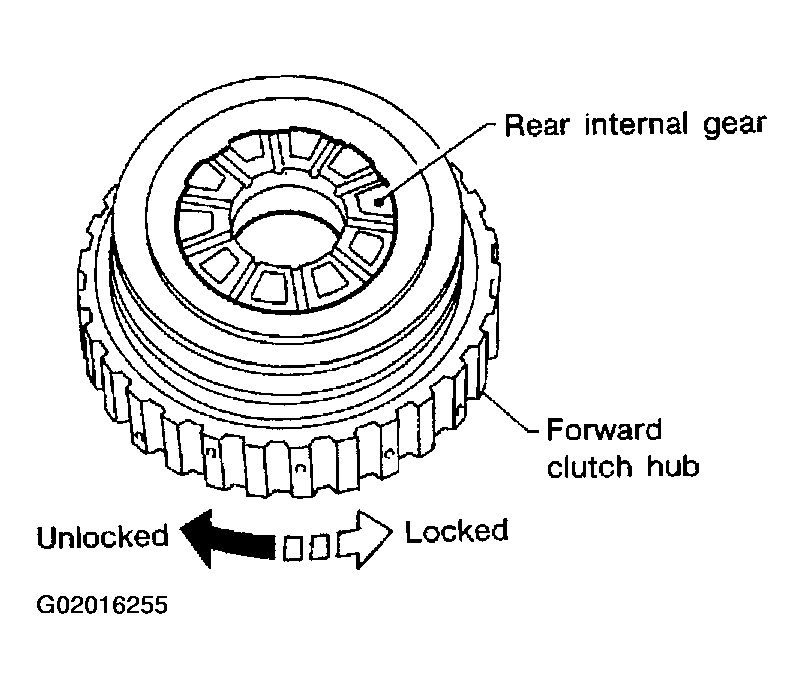

    Fig 5: Installing Forward Clutch Hub On Rear Internal Gear
    G02016255Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install thrust washer and overrun clutch hub.
    • Apply petroleum jelly to thrust washer  .
    • Align pawls of thrust washer with holes of overrun clutch hub  .

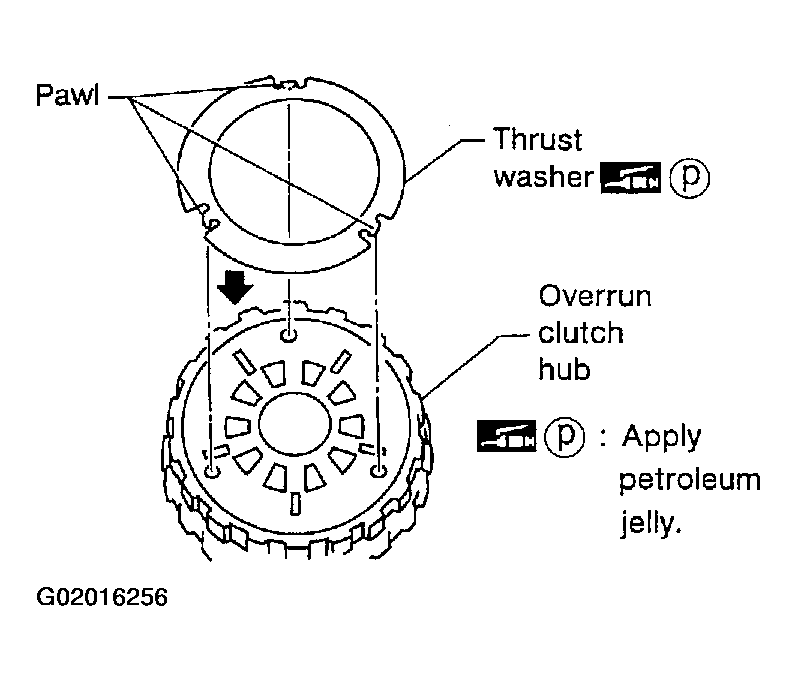

    Fig 6: Installing Thrust Washer & Overrun Clutch Hub
    G02016256Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install overrun clutch hub on rear internal gear.
    • Align projections of rear internal gear with holes of overrun clutch hub  .

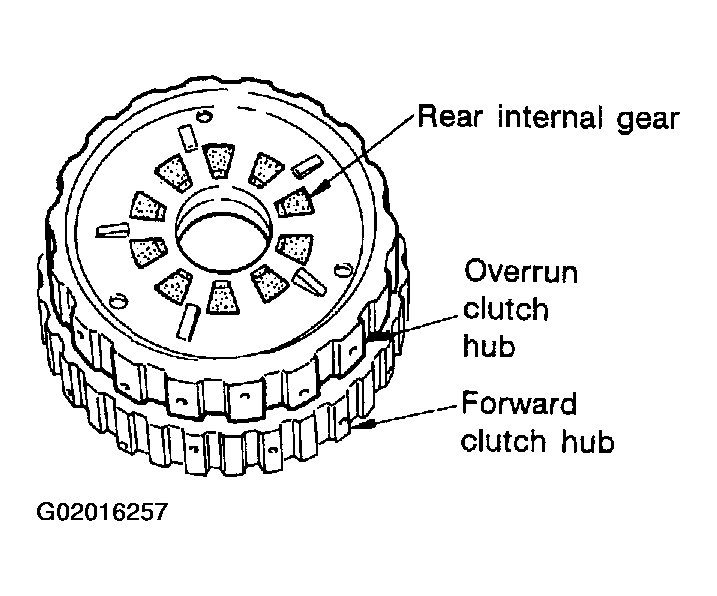

    Fig 7: Installing Overrun Clutch Hub On Rear Internal Gear
    G02016257Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install snap ring to groove of rear internal gear.

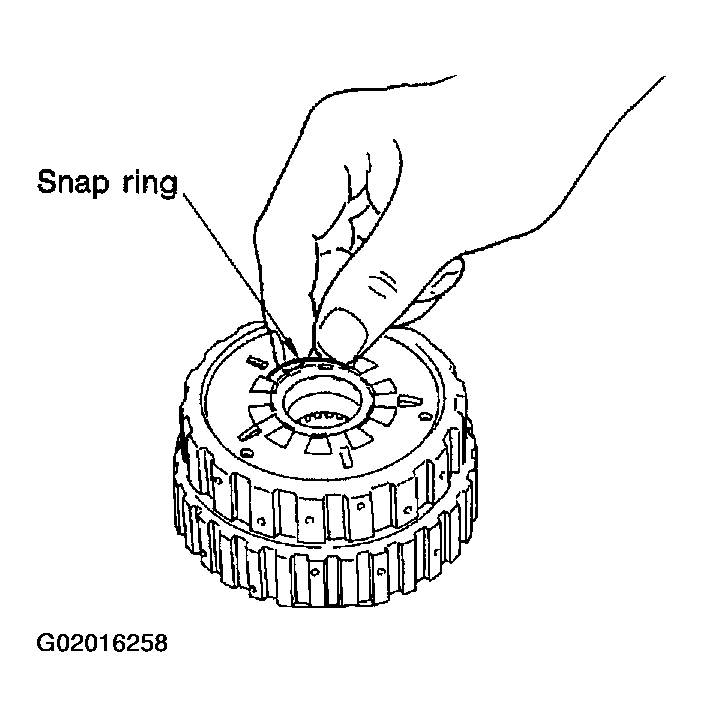

    Fig 8: Installing Snap Ring To Rear Internal Gear Groove
    G02016258Courtesy of NISSAN MOTOR CO., U.S.A.
