Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

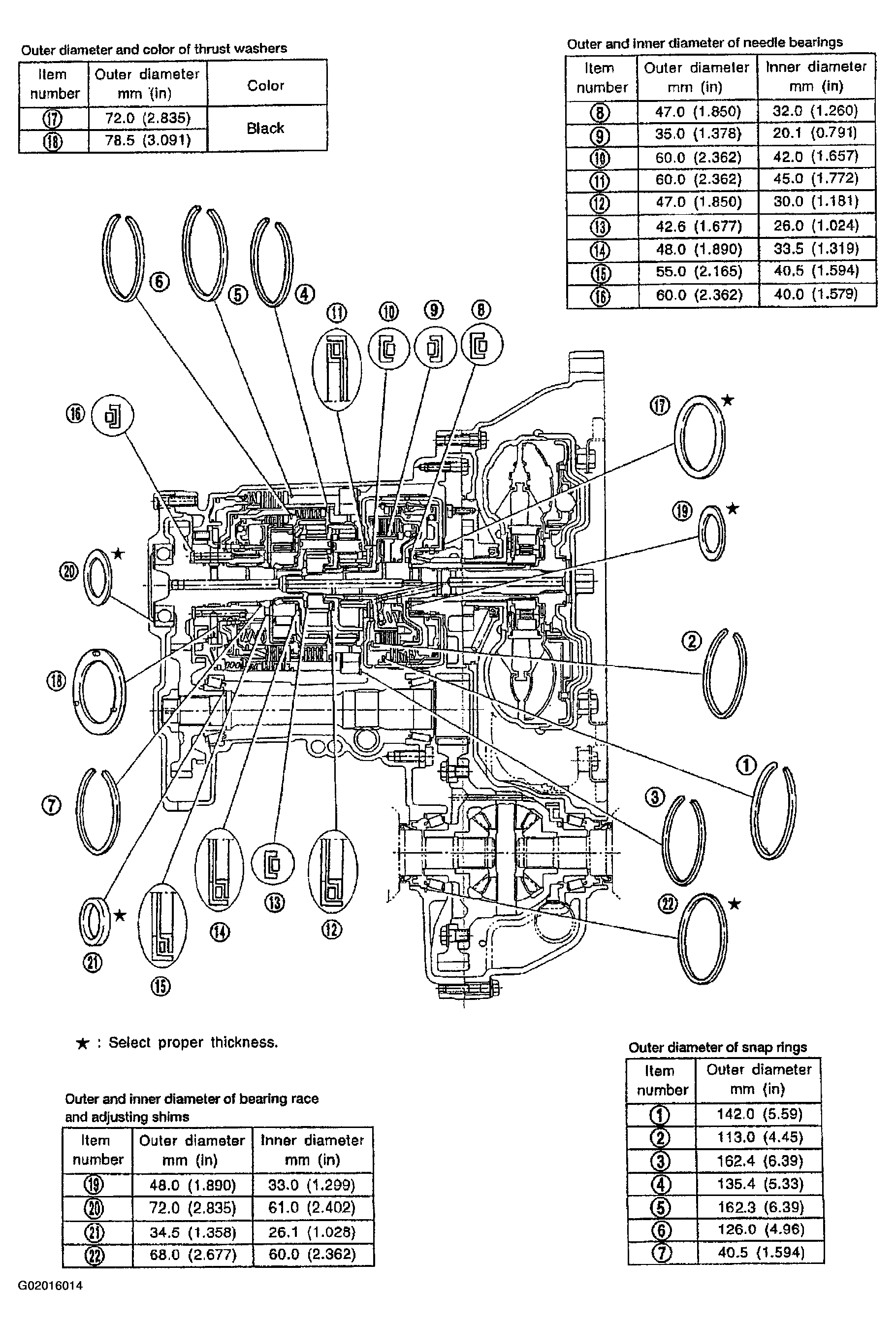

Fig 1: Locating Adjusting Shims, Needle Bearings, Thrust Washers & Snap Rings Position & Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
