D2 , 2(2) and 1(2) Positions

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

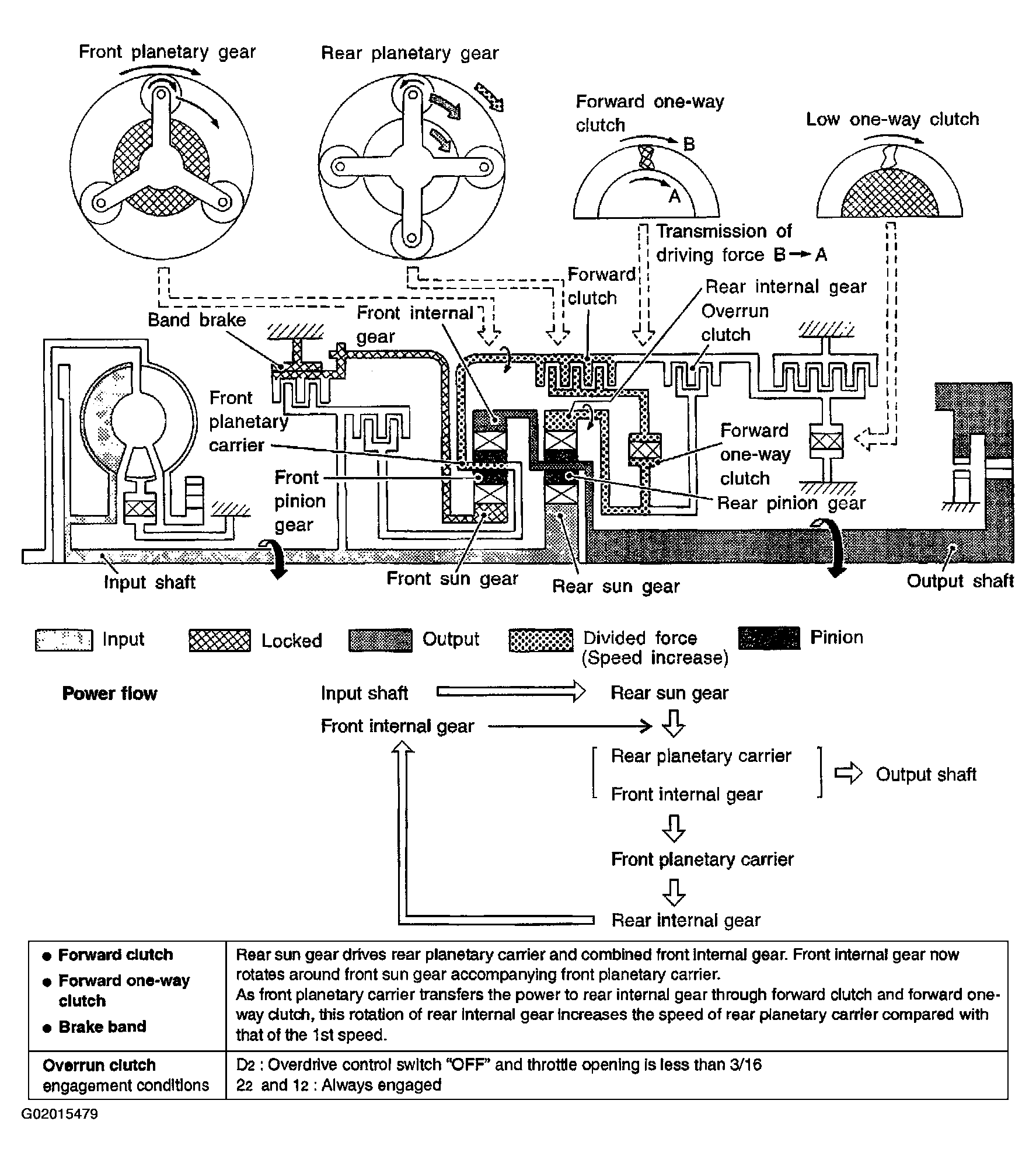

Fig 1: Diagraming (D2, 2(2) & 1(2) Positions
G02015479Courtesy of NISSAN MOTOR CO., U.S.A.
