Clutch And Band Chart

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

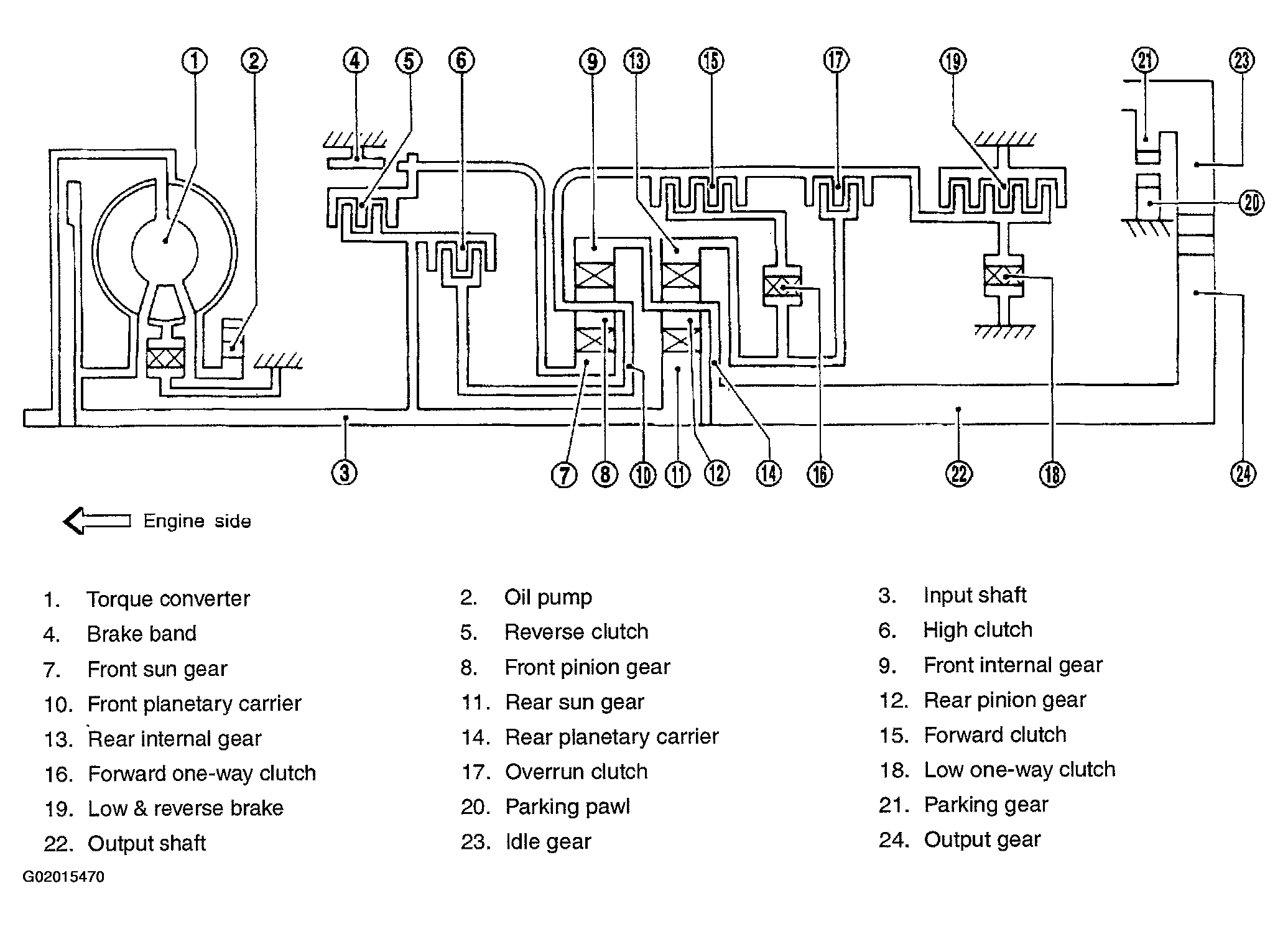

NOTE: For Identification of Components called out in headings, see Figure.

Fig 1: Clutch & Band Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

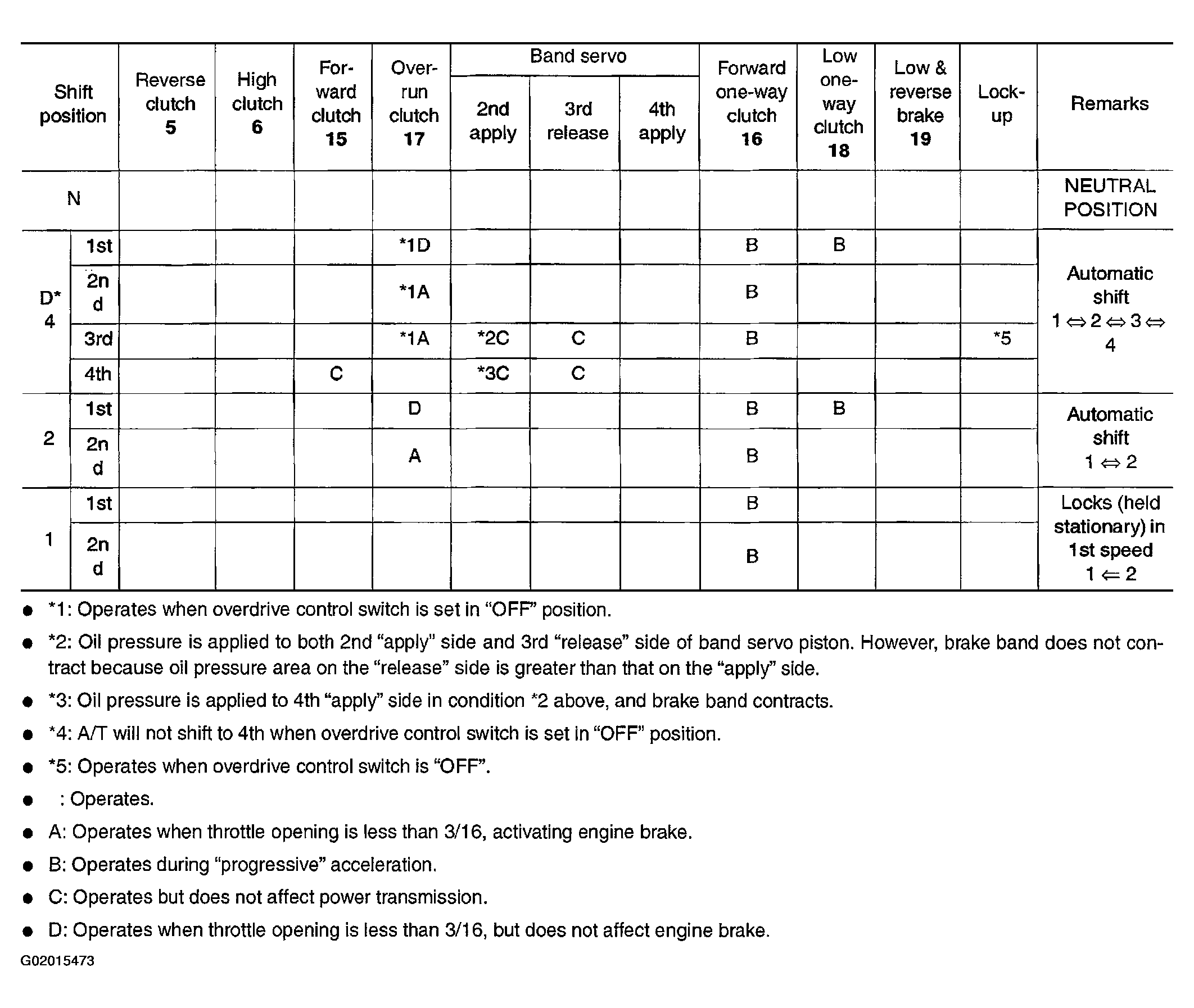

Fig 2: Clutch & Band Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
