Differential Side Oil Seal Replacement

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Remove drive shaft assemblies using Tool. Refer to REMOVAL, OVERHAUL & INSTALLATION .
Remove oil seals.

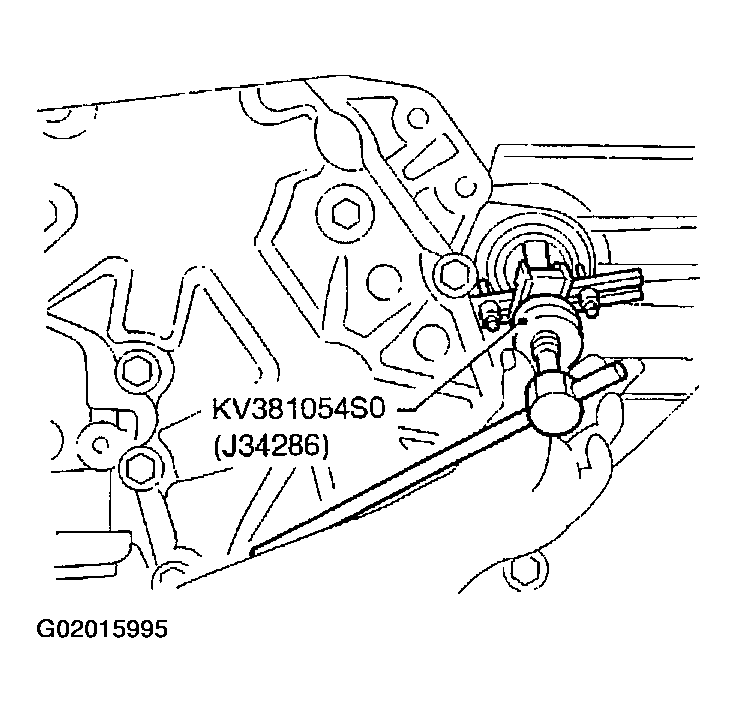

Fig 1: Removing Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil seals using Tool.
- Apply ATF to oil seal surface before installing .

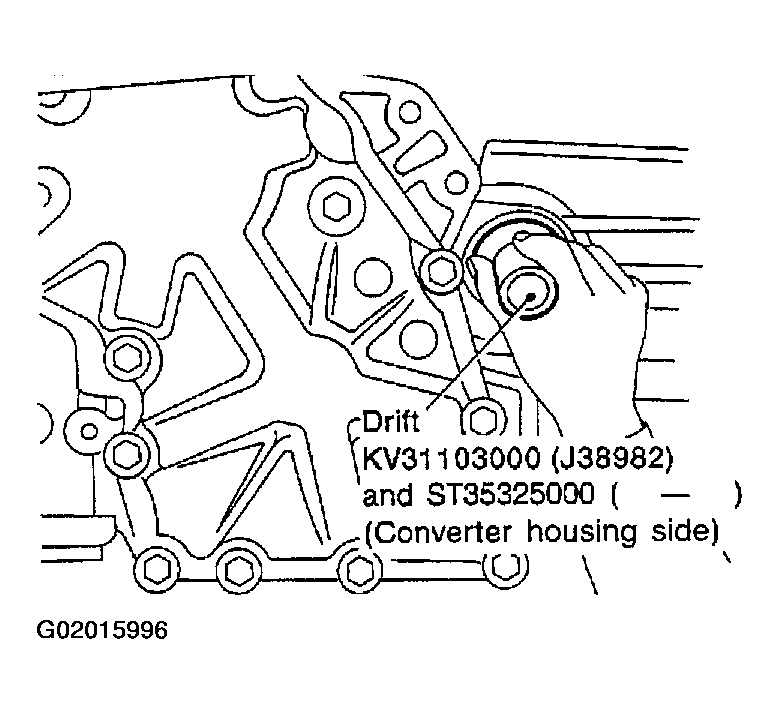

  Fig 2: Installing Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install oil seals so that dimensions A and B are within specifications .

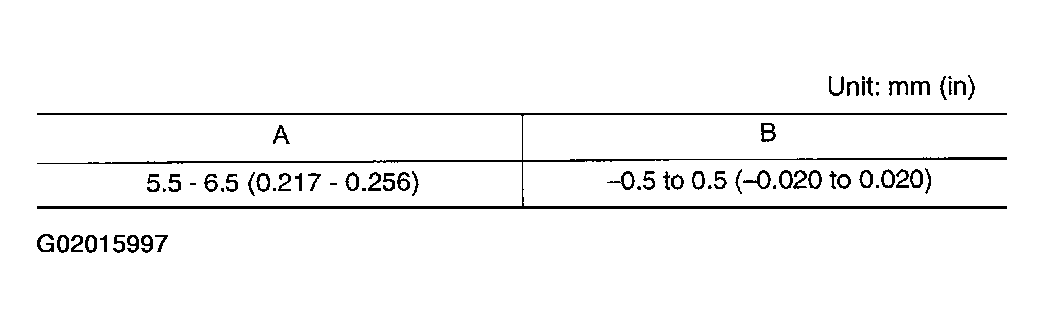

  Fig 3: Oil Seal Dimensions Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.

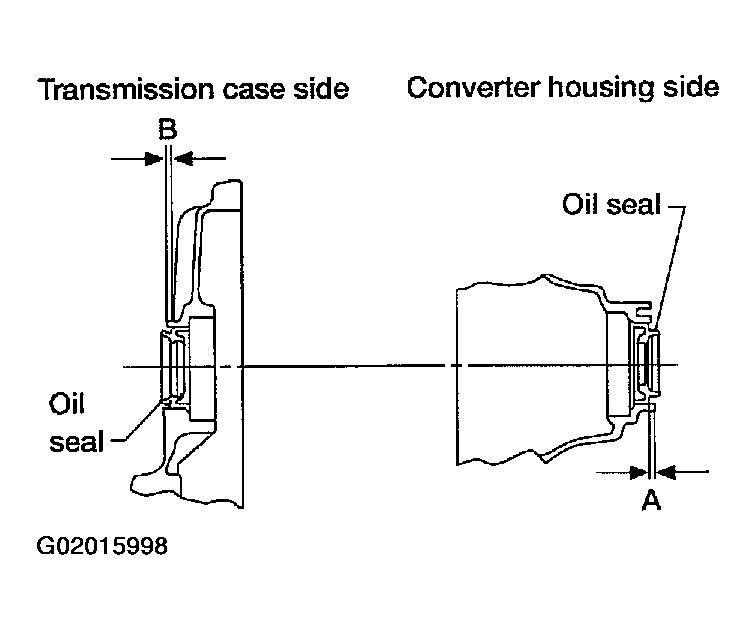

  Fig 4: Identifying Oil Seal Dimensions At Transmission Case Side & Converter Housing Side
  Courtesy of NISSAN MOTOR CO., U.S.A.
Reinstall any part removed.
